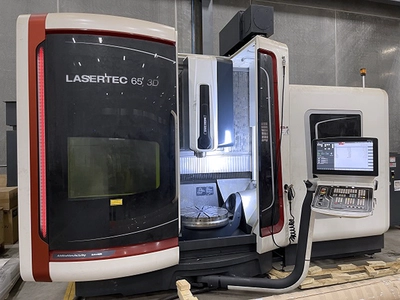

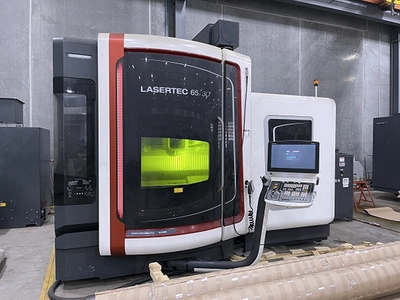

Used DMG Lasertec 65 3D. This pre-owned Vertical Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this DMG Vertical Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

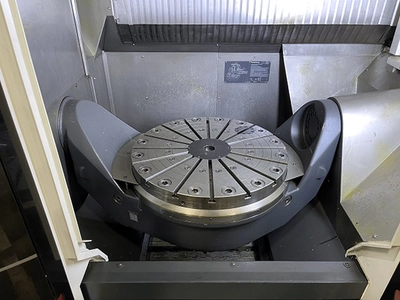

Dimensions: 25.59" (NC Swivel Rotary Table)
Maximum Workpiece Dimensions: 19.6"x 15.7"(Additive Manufacturing)
Maximum Workpiece Weight: 1,322.7 lbs (NC Swivel Rotary Table)
Rotary Axis: 360° C-Axis
A-Axis swivel range: -120° to + 120°
Maximum Speed: 10,000 RPM/18,000 RPM (Standard/Optional)
Tool Holder: HSK-A63
Lens Focal Length: 7.87" (Fixed)
Maximum Acceleration: on X/Y/Z 6m/sec²
Number of Tool: 30/60/90 Standard/Optional
Machine Dimensions: 164.5" x 137.2" x 113.5"
Machine Weight: 24,912.2 lbs

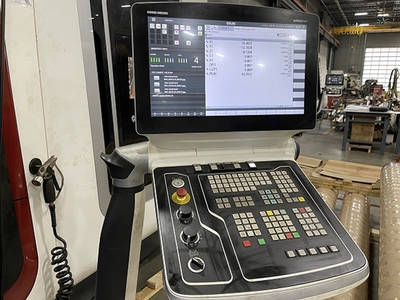

ELOS® from DMG MORI with 21.5" ERGOline® Control
Operate 4.5 on SIEMENS 840D Solutionline

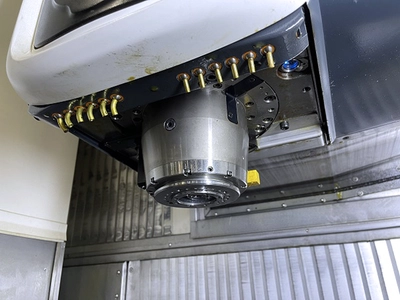

Laser head integrated in the headstock for additive performance
5-axis material deposition by coaxial nozzle
Independent of direction of laser deposition welding
