Used Goodway GS-2000YS. This pre-owned CNC Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Goodway CNC Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Max Swing Diameter: 24.803"
Max Turning Diameter: 18.11"
Max Turning Length: 31.49"

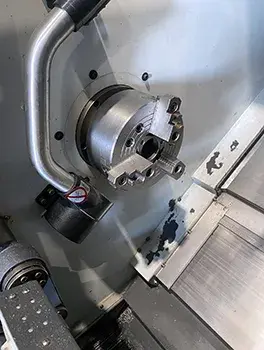

Chuck Size: 8"
Bar Capacity: 2"
Spindle Nose: A2-6
Spindle Motor 30 Min. / Cont.: 15/ 18.5 kW
Max Spindle Speed: 4,800 RPM
Turret Tooling Stations: 12/12
Max X Traveling Speed: 11.02"
Sub Spindle Bar Capacity: 1.81"
CNC Controller: FANUC 31iA
Dimensions: 120" x 77" x 89"
Weight: 20,900
Chip conveyor
Oil chiller
Parts catcher
Renishaw tool setter HPMA

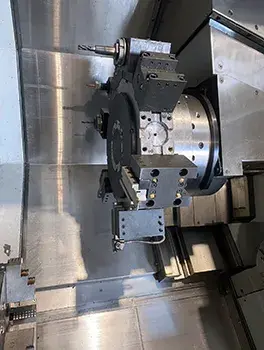

Goodway 12 station built-in motor live tooling turret

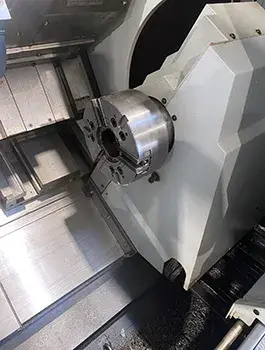

CS-axis with disk brake on main & sub spindles (live sub spindle)
Live Y-Axis
Bar feeder interface with extra M code
15 Bar coolant pump
Oil skimmer
0 Degree live tool holder - 2 pcs
90 Degree live tool holder - 2 pcs

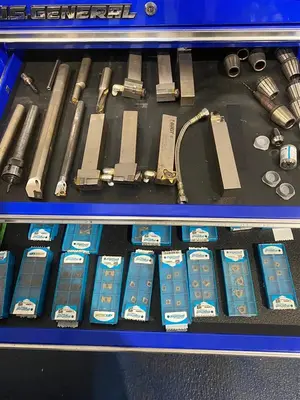

$7500 worth of Ingersoll Lathe Tooling
Mastercam programming software with post processor and machine simulation
