21" Chuck| 122" between centers| Hydraulic Steady rest| Deep Boring bar option
Maximum Swing : 33.88"
Max Turning Diameter: 31.88"
Maximum Cutting Length: 120"
Main Spindle Bore/Max Bar Capacity : 5.5"
Maximum Swing over Cross Slide: 27.5"
X-Axis Travel: 21.375"
Z-Axis Travel: 123.25
W-Axis Travel: 100.39"
Main Spindle Chuck Size : 21"
Main Spindle Speed: 1,600 RPM
Main Spindle Horsepower: 50 HP
Upper Turret: 12
Dimensions: 284" X98" X111"

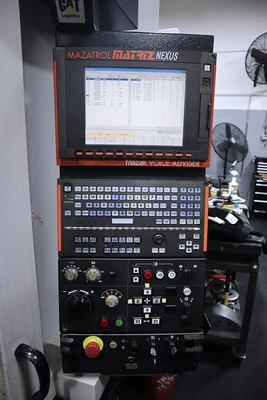

Matrix Nexus Control
21" Kitagawa Chuck
2 Position boring Bar Holder
Hydraulic Steady
Tail Stock
Chip Conveyor
Oil Chiller
12 Position Turret
High Pressure Pump
Remote Jog Handle
Deep Hole Boring with Automatic Changer
Auto Tool Measuring system

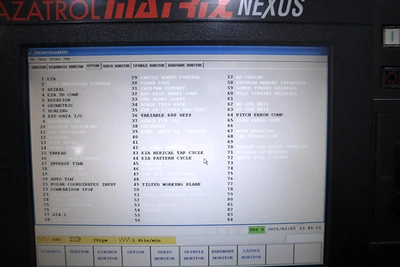

EIA Spiral & EIA 3D Comp
Rotation with Geometric & Scaling EXT Data I/O
Thread & Inverse Time
Auto TLM with Polar Coordinates Input
Comparison Stop & G54.1 600 Variable Offsets
Tilted Work Plane
