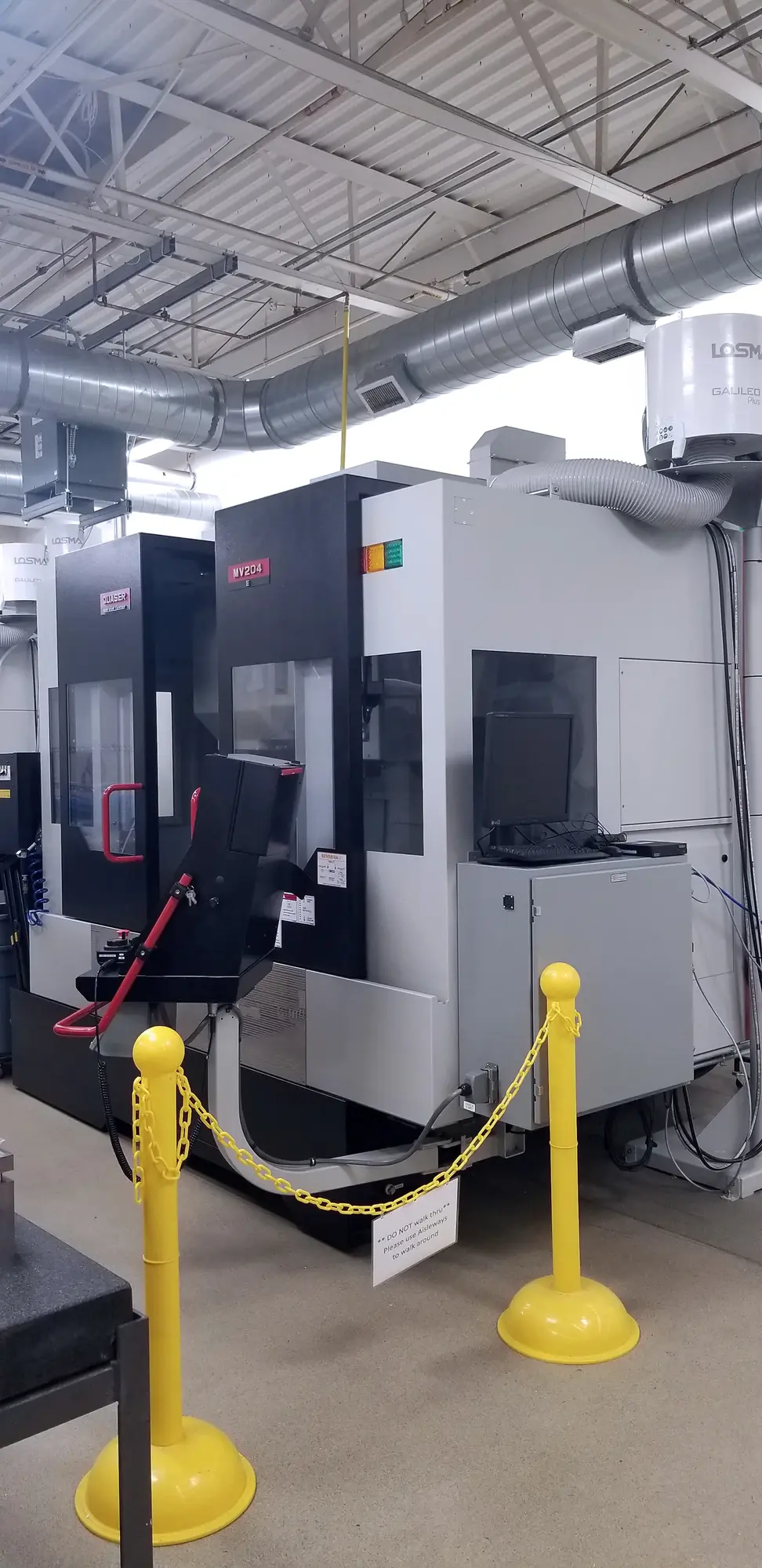

USED 2019 QUASER MV204E/12B
Overview
Used Quaser MV204E/12B. This pre-owned Vertical Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Quaser Vertical Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs
Table Size: 55.12" x 27.56"
X Axis Travel: 50"
Y Axis Travel: 27.56"
Z Axis Travel: 24.02"
Table Load Capacity: 2205 lbs
Rapid on (X,Y,Z) IPM: 1417/1417/1260
Spindle Taper: 40 Taper
ATC: 60
Max Tool Diameter: 3"
Max Tool Length: 11.81"
Max Tool Weight: 15.43 lbs
Machine height: 129.9"
Machine Footprint (W x D): 145.7" x 159.5"
Machine Weight: 22,000 lbs
Equipped With
Only 7hrs Cutting Time
HMI Human Machine Interface with Software
Data Server w/ 400 BLA and 1GB + CF Card
725 psi CTS w/ Filtration unit and mist collector (upgrade from 290 psi)
60 Tool 40-taper ATC (upgraded from 30T)
Heidenhain Optical Scales X-Y-Z
Renishaw TS-27 Tool Length Setting Probe Installed
Renishaw Work probe model OMP-40 installed
Auto Lube for Linear Guide
Oil Skimmer
ATC Sheet Metal Modifaction to accommodate for larger tools
Air/Hydraulic Booster
