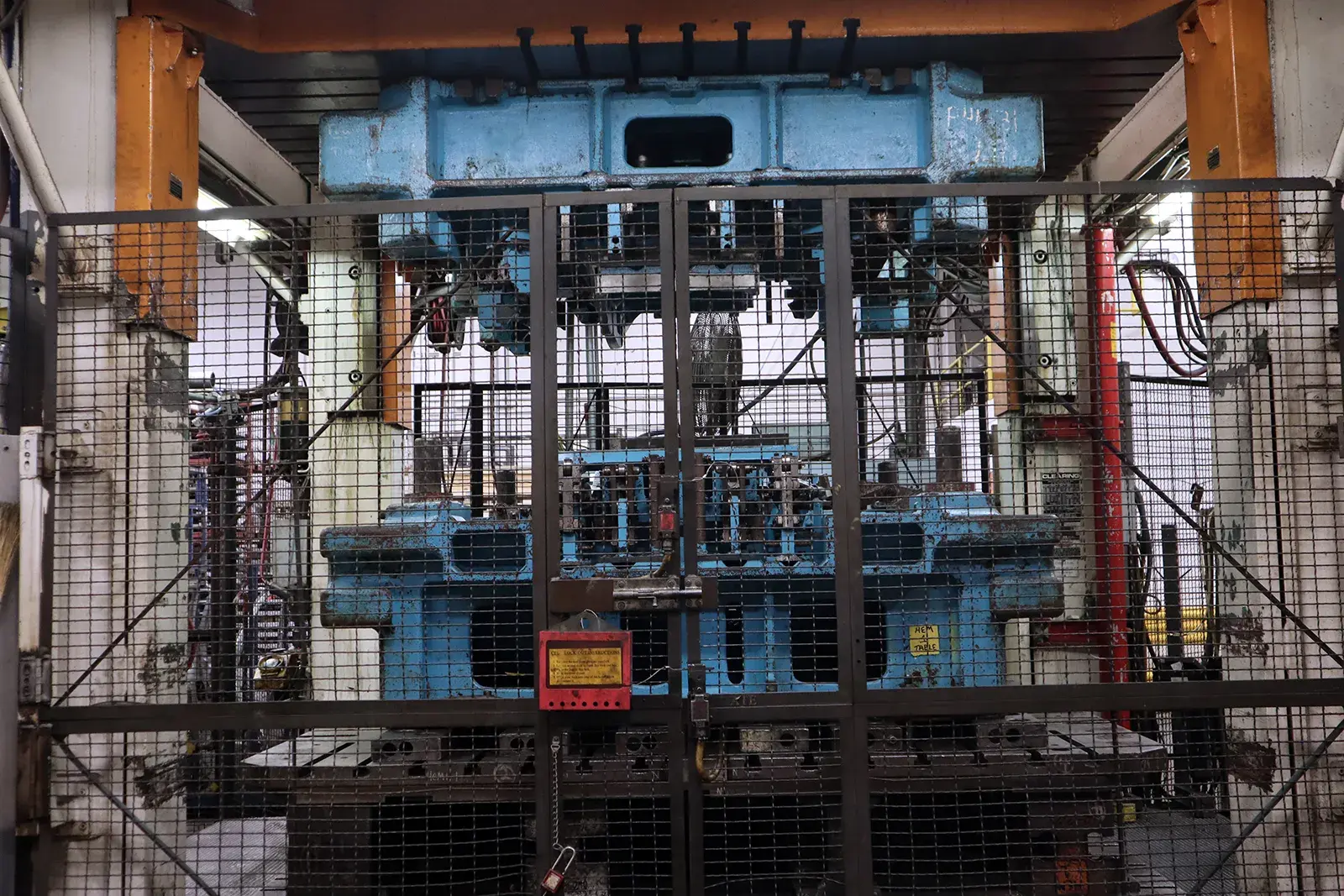

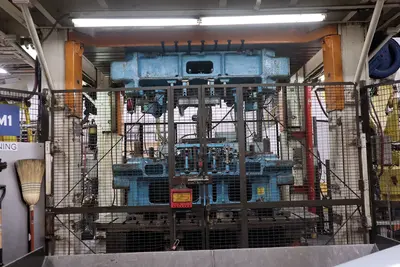

USED 1984 CLEARING H-400-96-108
Overview
No description available
Specs
R-L (Bed Area): 96
Hydraulic Fluid Tank: 570 gallons required
Aux. Motor: 15 HP 1200 RPM
Main Motor: 150 HP 1200 RPM
Weight: 203,600 lbs
Machine height: 186"
F-B (Machine Size): 182
R-L (Machine Size): 373
F-B (Bed Area): 108
F-B (Slide Area): 114
R-L (Slide Area): 103
Daylight: 96"
S.D.A.U: 66"
Return: 1160 in/min
Pressing: 122 in/min
Closing: 1200 in/min
Capacity: 400 Tons
Stroke: 30"
Equipped With
R-L (Bed Area) 96
Hydraulic Fluid Tank 570 gallons required
Aux. Motor 15 HP 1200 RPM
Main Motor 150 HP 1200 RPM
Weight 203,600 lbs
Machine height 186"
F-B (Machine Size) 182
R-L (Machine Size) 373
F-B (Bed Area) 108
F-B (Slide Area) 114
R-L (Slide Area) 103
Daylight 96"
S.D.A.U 66"
Return 1160 in/min
Pressing 122 in/min
Closing 1200 in/min
Capacity 400 Tons
Stroke 30"
