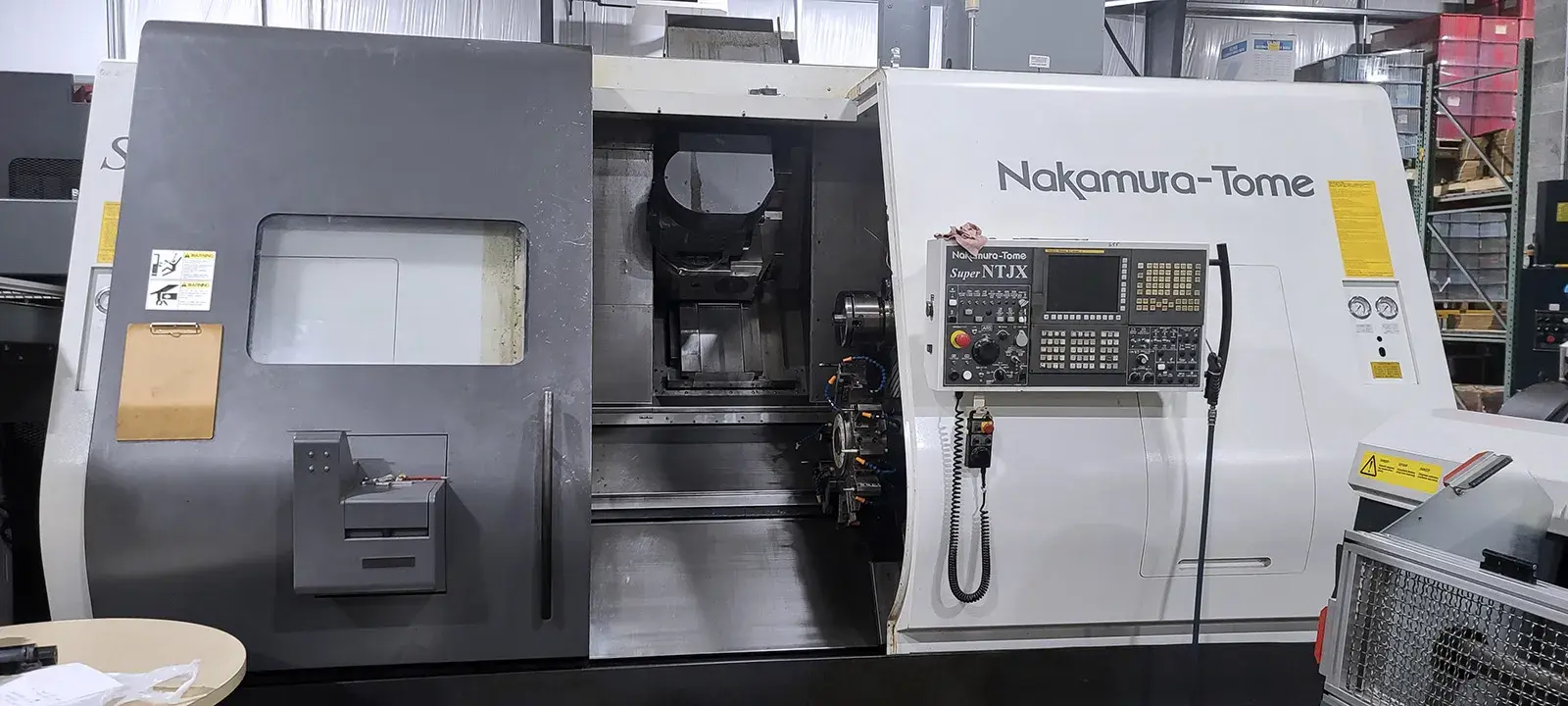

USED 2007 NAKAMURA TOME SUPER-NTJX

Y-Axis Upper Tool Spindle| Y-Axis Lower Turret| CTS

Max. turning diameter / max. turning length: 9.64” / 42.91”
Distance between spindles max: 50.78” / min. 8.26”
Bar Capacity: : 2.5”
Slide travel (X1 / X2 / Z1 / Z2 / B2): 17.91” / 8.75” / 42.91”/ 39.56” / 39.68”
Slide travel (Y1 / Y2): ±2.76 / +.787”, -1.96”
Spindle Speed: 4500 RPM
L spindle motor: 20/15HP / 221.5/162.5N·m
R spindle motor: 15/10HP / 208/115N·m
Tool Spindle Speed: 12,000 RPM
TOOL SPINDLE MOTOR: 10/5 HP, Max54N·m
Tool Shank Type: CAPTO-C6
ATC, Number of tools: 40+120 (160)
Max. tool diameter / No adjacent tools: 2.75” / 3.54”
Max. tool length / Max. tool weight: 11.02” / 17.6 lbs
Orientation function: 90 degree indexing
B-axis positioning range: 190° (±95°)
Driven-tool spindle speed: 3600 RPM
DRIVE MOTOR: 7.5 / 5 HP / Max. 24N·m
Type of turret / Number of indexing pos.: Dodecagonalk / 24st
Floor space (L × W × H): 186” x 115” x 96.3”
Machine weight (incl.control): 30,870 lbs

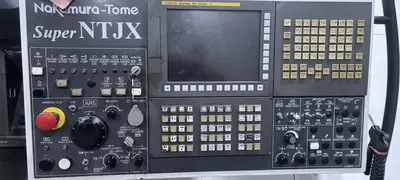

Fanuc 31i-A CNC Control
4500 RPM / 20HP / 65mm (2.5”) Bar Spindle Left
6000 RPM / 15HP/ 51mm (2”) Bar Spindle Right
20/15 HP Spindle Motor Left
15/10 HP Spindle Motor Right
10/5 HP Tool Spindle Motor
Tool Spindle Capto C6 Type
12
000 RPM Tool Spindle Speed
40 ATC Tool Magazine
C-Axis Function
3600 RPM / 7.5 / 5 HP Milling Turret
Y-Axis Upper Tool Spindle
Y-Axis Lower Turret
NT-Nurse II System
NT Work Navigator
Fixed Air Blow
L/R Spindle
Spindle Speed Override L/R
Parts Catcher “T”
NTJX
Coolant Non-Return Valve (U/L)
Manual Handle Retrace
Manual Pulse Generator
Manual Tool Setter
Barfeed Interface
Helical Interpolation
160 Tool ATC (40+120)
Coolant Thru Turret
Lower
Coolant Thru Tool Spindle
Workpiece Counter Nakamura
