X Axis Travel: 8 1/2"
Z Axis Travel: 28"
Chuck Size: 10"
Chuck Size – Maximum Swing: 19 1/2"
Turning Diameter Maximum: 15 3/4"
Turning Length Maximum: 28"
Bar Capacity: 2.5"
Tailstock Quill Diameter: 4 1/4"
Tailstock Stroke: 5.880"
Tailstock Quill Center: MT#5
Tailstock Body Travel: 22.880"
Spindle Speed Variable: 50 – 3500 RPM
Spindle Nose: A2-8
spindle power: 25 HP
Spindle Bore: 3.38"
Turret, Bi-Directional: 12 Position
Tool Shank Size Square: 1"
Tool Shank Size Round: 2"
Approximate Dimensions: 110"L x 67"W x 71"H
Approximate Weight: 11,000 Lbs
Parts Catcher
Chip Conveyor

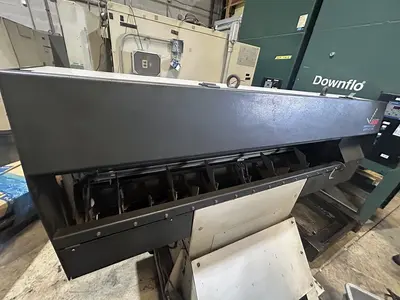

LNS Quick Load Servo S2 Bar Feed
Tailstock
