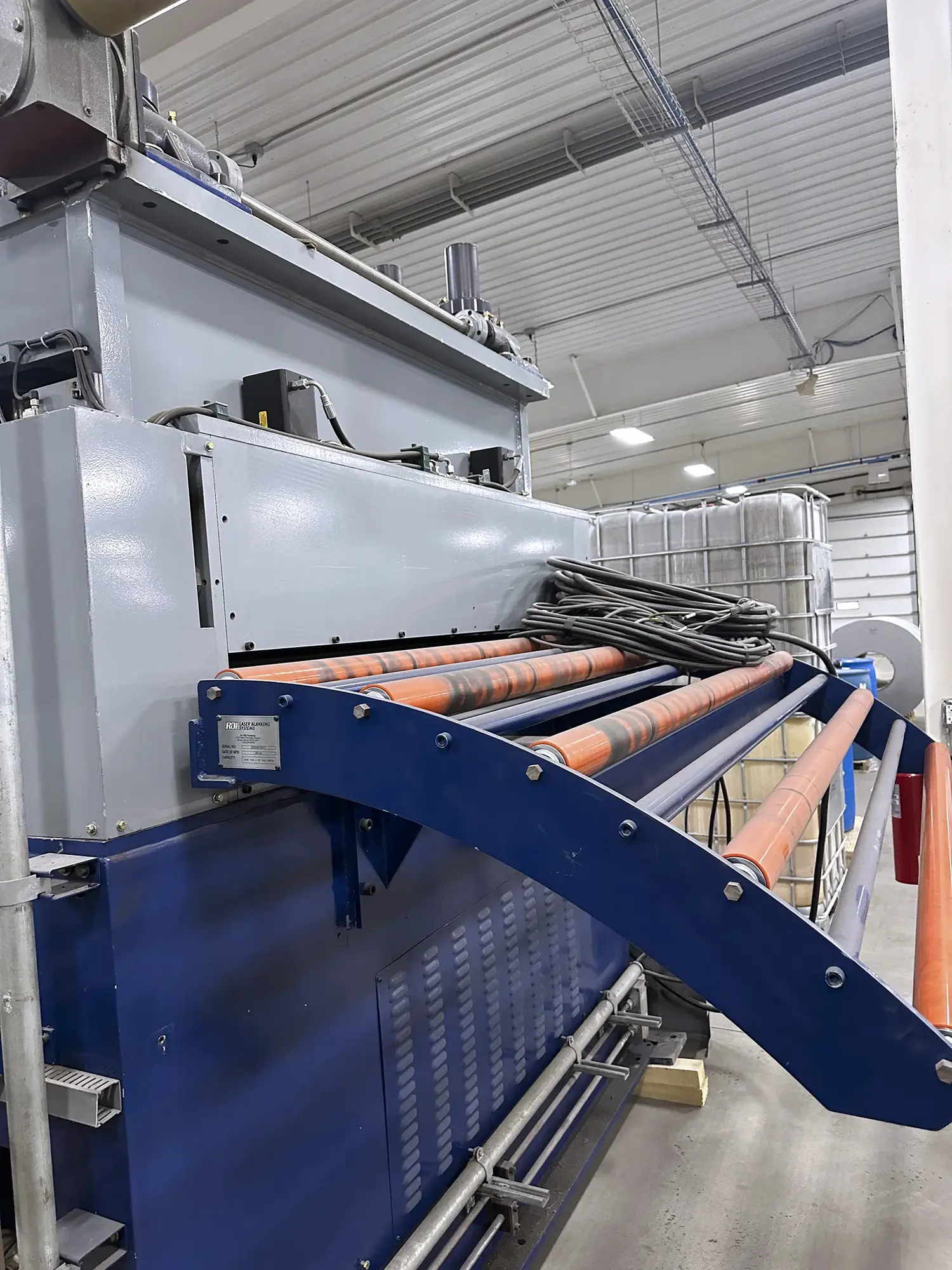

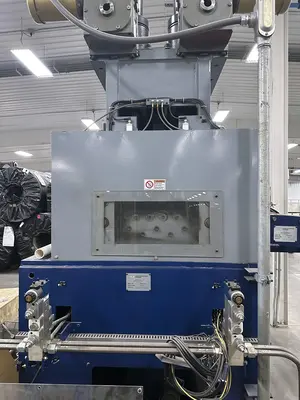

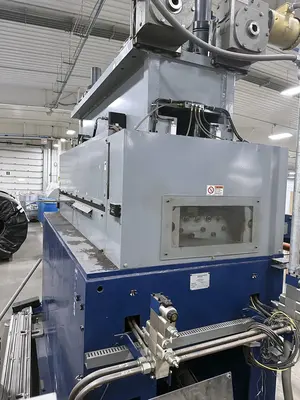

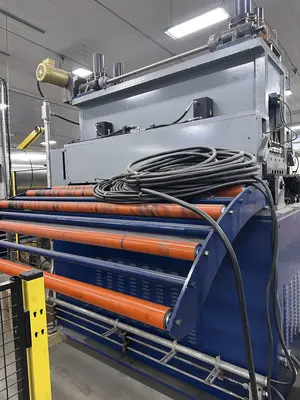

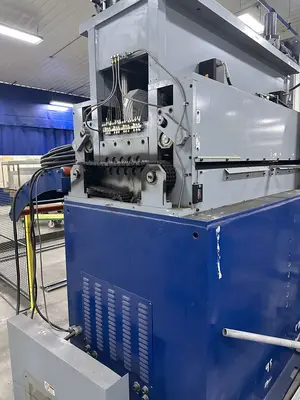

RDI 2019
Overview
No description available
Specs
Outfeed pinch roll shaft needs to be replaced
but everything else is in great condition was only in service for 1.5 years
Capacity: .078 thick x 72" wide
Technical Specifications
Roll Diameter: Straightener- 2.2 inches (56 mm) with polyurethane covering (80-85 durometer)
Feed In/Out: 3.78 inches (96 mm) with hard chrome surface
Roll Quantity: Feed Rolls - 4 (1 roll set entry and 1 exit)
Straighteners: 11 (5 over 6 configuration with backup rolls)
Roll Adjustments: Top Rolls adjustable via motorized adjustment with hinged roll opening mechanism for easy cleaning
Roll Drive: Rolls driven by an AC motor and gear reducer transmitting power to each roll via chain and sprocket
Roll Type: 52100 steel hardened
Roll Backups: Top and Bottom
Side Guides: Automatic, centerline justified
Lubrication: Automatic lubrication
Pneumatic: Pneumatic valves mounted to machine base and factory wired to a machine mounted junction box
Hydraulic: Hydraulic valves mounted to machine base and factory wired to a machine mounted junction box
Equipped With
Outfeed pinch roll shaft needs to be replaced
but everything else is in great condition was only in service for 1.5 years
