USED 2007 AMADA AF2000E

Laser Type: Output CO laser, axial-flow AF 2000E oscillator
Laser Power: 2,000 W (2 kW)
Working Area: (X × Y travel) 1,260 mm × 1,260 mm
Z Axis Travel: 100 mm
Mild steel with O: ~12 mm
Stainless Steel: ~5 6 mm
Aluminium: ~3 4 mm

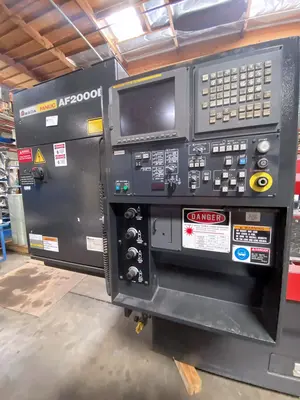

Controller: CNC FANUC 16i L / 16i LB series,
Electrical / Power Requirements Main connection: ~200 V; ~40 kVA
Air Pressure Required: Around 6 bar compressed air
X/Y/Z: ~30 / 30 / 15 m/min
Simultaneous speed: ~42 m/min
Positioning Accuracy: ±0.01 mm
Repeatability: ±0.005 mm
