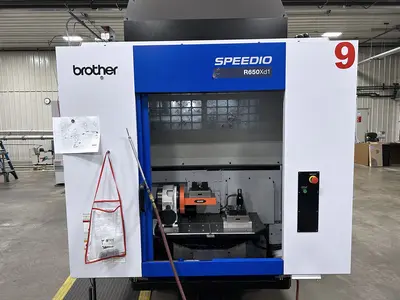

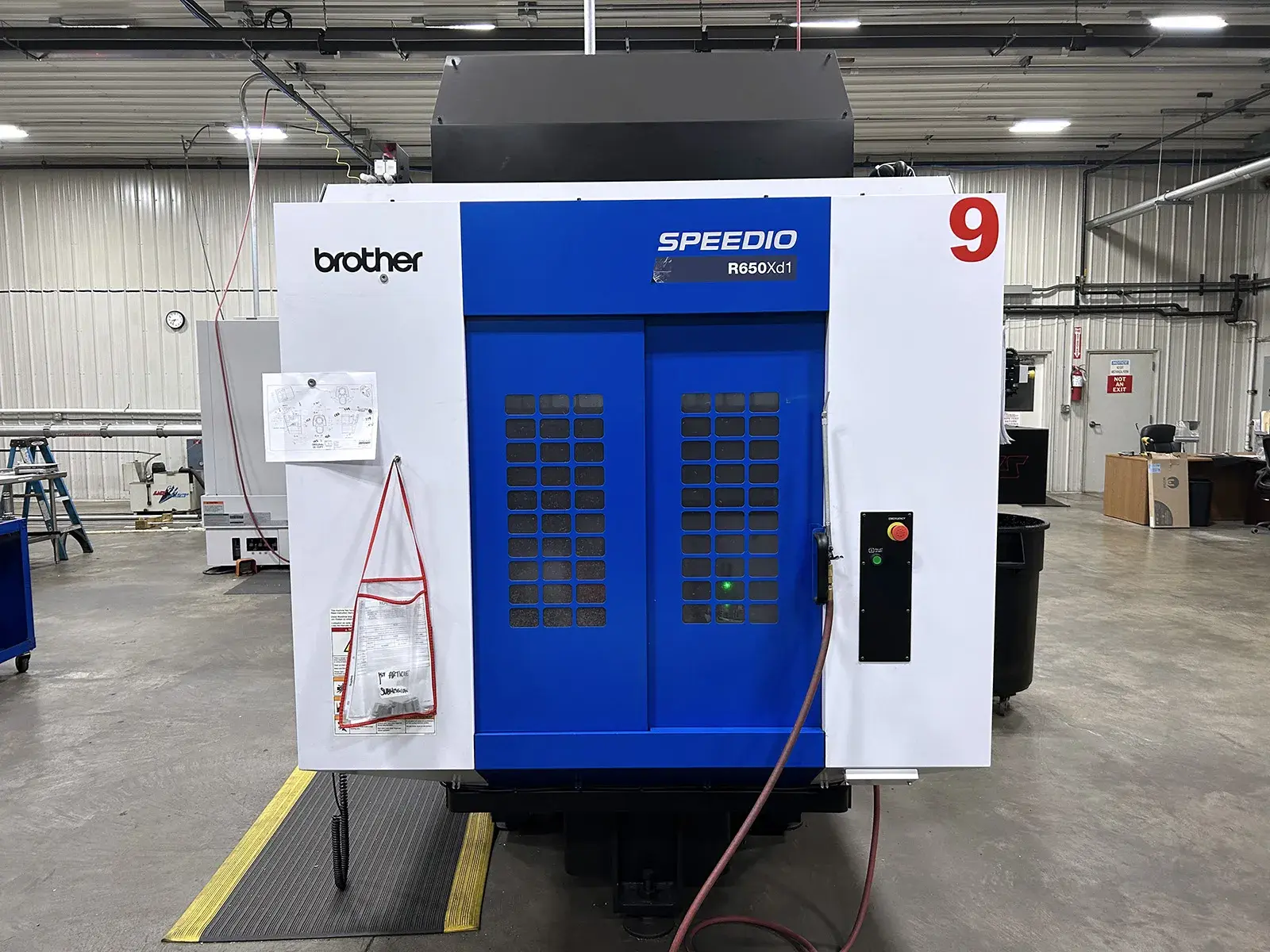

USED 2022 BROTHER R650XD1

Less Than 1000 Cutting Hours| 16,000RPM Spindle

Number Of Tables / Pallets: 2
Table-L: 31.5"
Table-W: 15.7"
Maximum Weight on Table: 441 lb
Spindle Nose to Table Top: 13.8" ~ 25.8"
X - Axis Travel: 25.6"
Y - Axis Travel: 15.7"
Z - Axis Travel: 12"
Rapid Traverse Rate - X: 1,696 in/min.
Rapid Traverse Rate - Y: 1,696 in/min.
Rapid Traverse Rate - Z: 1,696 in/min.
Cutting Feed Rate: 1,181 in/min.
Spindle Speed: 16,000 RPM
Spindle Taper: CAT30
AUTOMATIC TOOL CHANGER: 28
Tool Diameter: 3.1"
Tool Length: 7.9"
Tool Weight: 6.6 lbs.

Chip Conveyor with Integrated High Pressure Coolant
Manual Pulse Generator
NOP 1000psi CTS Pump and Filter Kit
LNS Chip conveyor

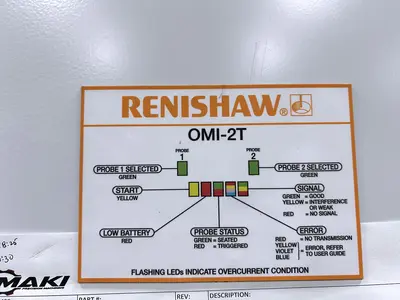

Renshaw OMP 40 Spindle Probe
(2) Blum Z-Nano with 150 MM Risers for R Series
Fourth Axis Index Table with Interface
SOP Feature Coordinate System G6 8.2
Sub plate fits T – 200 A.D. and Support table one per table
Support table with clamp for T – 200 A.D. D and T. – 200 a
Rotary joint for T – 200 A.D. DNT – 200 a rotary table 6P
