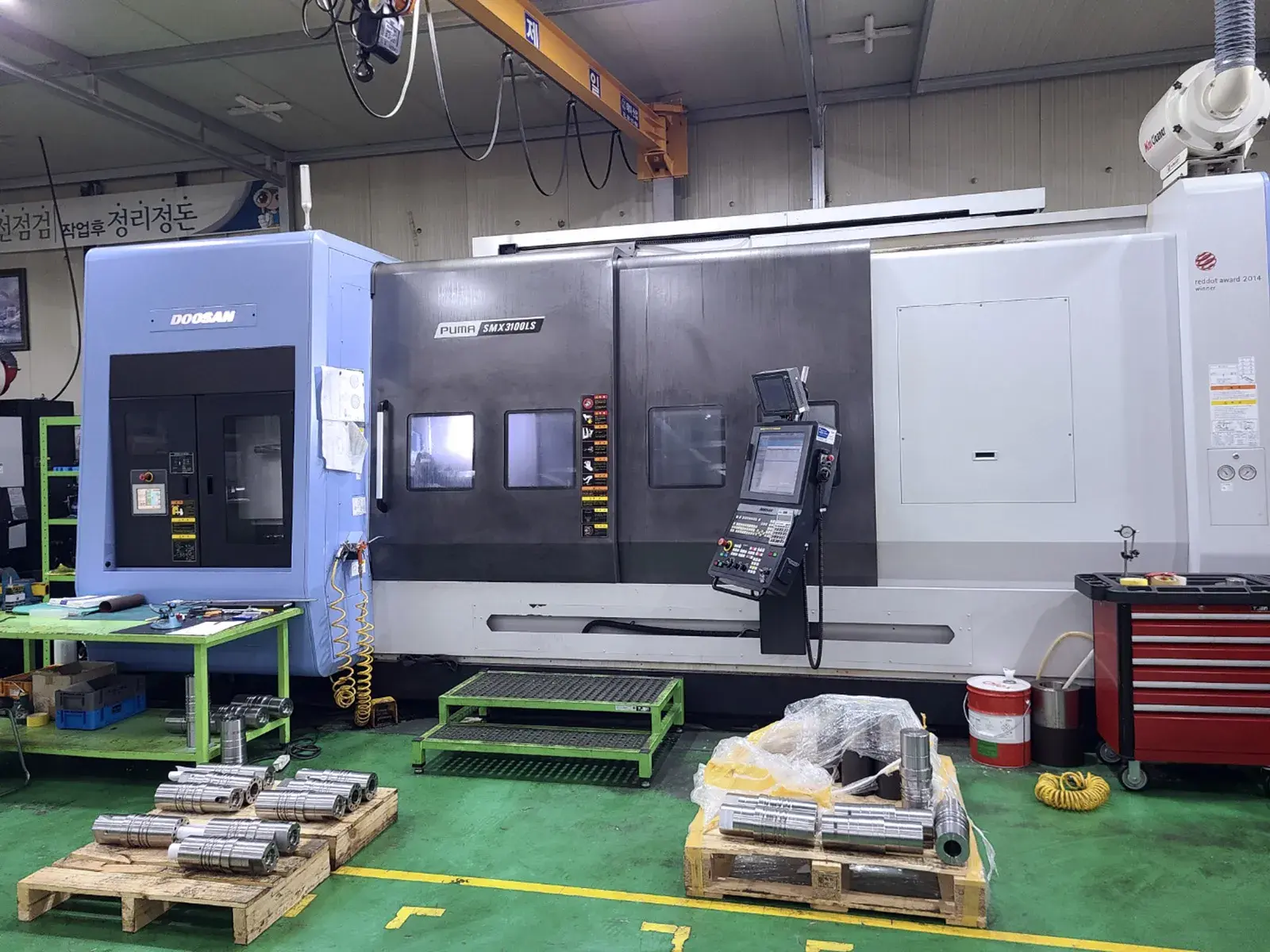

USED 2018 DOOSAN PUMA SMX3100LS

100" between Centers| Hyd Steady Rest| Sub-Spindle

Swing over Bed: 26"
Turning Diameter: 26"
Turning Length: 100"
Chuck Size 1: 15"
Bar Capacity 1: 4"
Spindle Speeds 1: 2,500 RPM
Chuck Size 2: 12"
Bar Capacity 2: 3.6"
Spindle Speeds 2: 4,000 RPM
B - Axis Head Indexing: 0.0001
B - Axis Milling Spindle Taper: Capto C6
B - Axis Milling Spindle Speed: 12,000 RPM
B - Axis Milling Spindle Horse Power: 35 hp
ATC For Milling Spindle: 80
Tool Length: 17.7"
Tool Weight: 26.5 lb
X1 - Axis Travel: 24.8"
Z1 - Axis Travel: 101.8"
Y1 - Axis Travel: 11.8"
C - Axis Indexing 1: 360
W - Axis Travel Sub Spindle: 98.4"
Rapid Traverse Rate - X1: 1889.8 ipm
Rapid Traverse Rate - Z1: 1181.1 ipm
Rapid Traverse Rate - Y1: 1417.3 ipm
Machine Weight: 45,195 lb
Dimensions: 252" x 118.5" x 112.2"

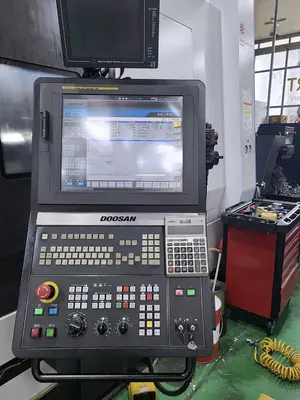

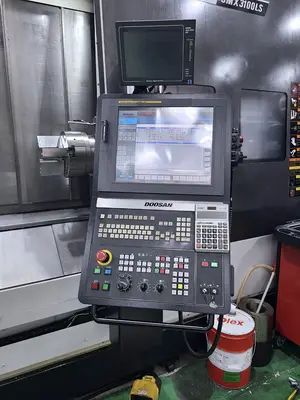

FANUC 31-B5 CNC CONTROL
SCALES FOR X/Y/Z

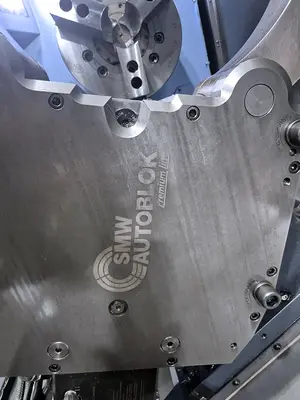

SMW STEADY REST 3.93" TO 16.1"
CHIP CONVEYOR
X AXIS BALLSCREW COOLING
ABSOLUTE PULSE CODER
AUTOMATIC ELECTRIC TOOL SETTER
PROGRAM STORAGE 1280M
EMBEDDED ETHERNET
AICC II 600 BLOCKS
8 PAIRS WORK COORDINATES
ATC OPERATING PANEL WITH TOUCH CAMERA
