USED 2004 SODICK AQ35L
Overview

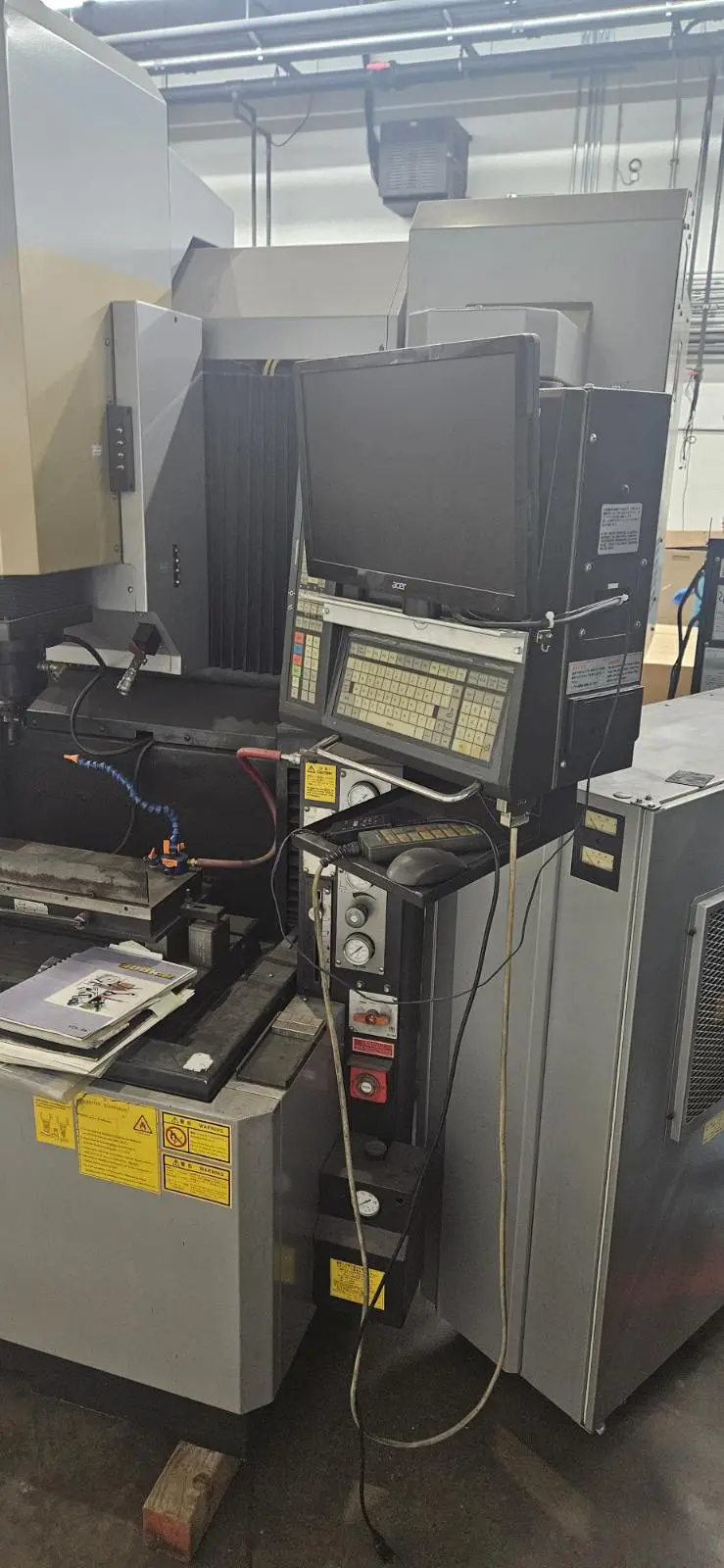

Sodick AQ35L CNC Wire Type EDM Electrical Discharge Machine (2004), LQ1 Control
Specs
Sodick AQ35L CNC Wire Type EDM Electrical Discharge Machine (2004)
Max. Workpiece Weight: 1210 lbs
Work Table: 23.55″ x 15.67″
Work Table Mounting: T-Slotted Table
Tank Dimensions: 30″ x 22″ x 13″
Travels (X x Y x Z): 14.0″ x 10.0″ x 10.0″
Full C Axis: Yes
Chuck and Tooling Type: System 3R Macro

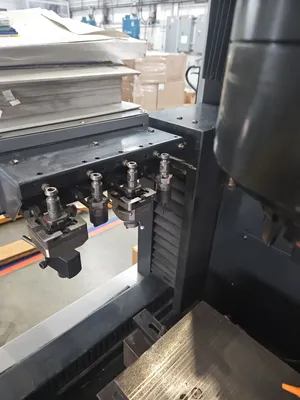

Tool Changer Type: Rack
Tool Changer Capacity: 5
Machine Weight: 11,030 lbs
Machine Size: 69″ x 101″ x 97″ tall
Equipped With
LQ1 Control

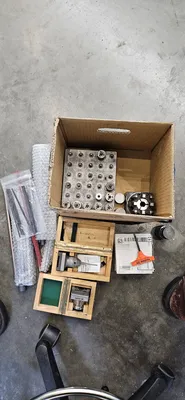

4 Electrodes
Magnetic Vise
