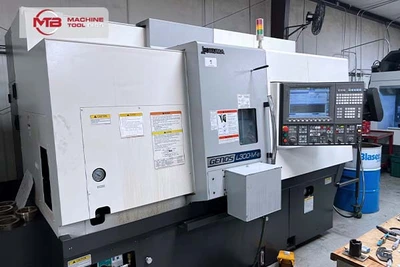

USED 2018 OKUMA GENOS L300-MYW-e X 500

Used 2018 Okuma Genos L300-MYW-e X 500. Machine Tool Bids offers plenty of CNC Turning Centers and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Okuma Genos L300-MYW-e X 500 or any of our machines.

Maximum Turning Diameter: 11.81"
Maximum Bar Capacity: 2.75"
X Axis Travel: 20.47"
Y Axis Travel: 3.94"
Z Axis Travel: 18.11"
W Axis Travel: 20.47"
Spindle Speeds: 3000 RPM
Spindle Motor: 20 HP
Spindle Nose: A2-8
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 10 HP
Live Milling Motor: 7.5 HP
Approx. Weight: 13,700 LBS
Maximum Turning Diameter: 11.81"
Maximum Bar Capacity: 2.75"
X Axis Travel: 20.47"
Y Axis Travel: 3.94"
Z Axis Travel: 18.11"
W Axis Travel: 20.47"
Spindle Speeds: 3000 RPM
Spindle Motor: 20 HP
Spindle Nose: A2-8
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 10 HP
Live Milling Motor: 7.5 HP
Approx. Weight: 13,700 LBS

OSP P300LA CNC CONTROL
10" CHUCK
12 STATION TOOL TURRET
C-AXIS MILLING
SUB SPINDLE
PARTS CATCHER
TOOL SETTER
COLLET CHUCK ON MAIN SPINDLE
3-JAW CHUCK ON SUB SPINDLE
MISC. TOOL HOLDERS (CURRENTLY INSTALLED ON TURRET)
BAR FEED INTERFACE (UNIVERSAL TYPE)
AOT IGF P3-INC M/W/Y
HELICAL CUTTING FOR X
C AND Z AXES
OFF-CENTER TURNING FUNCTION
RAPID TRAVERSE OVERRIDE SWITCH
CHIP CONVEYOR
NOTE: LOW CUTTING HOURS - LESS THAN 1000
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
