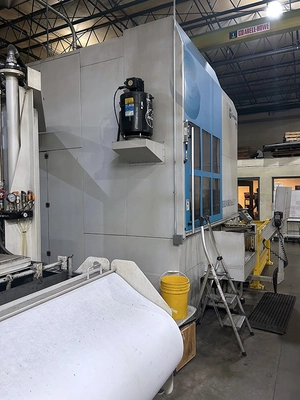

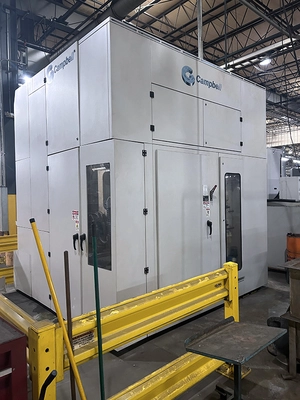

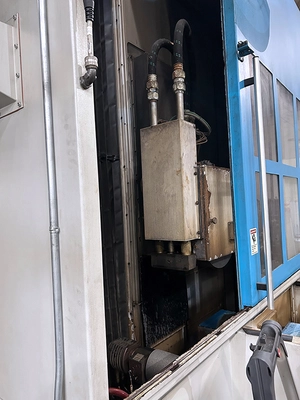

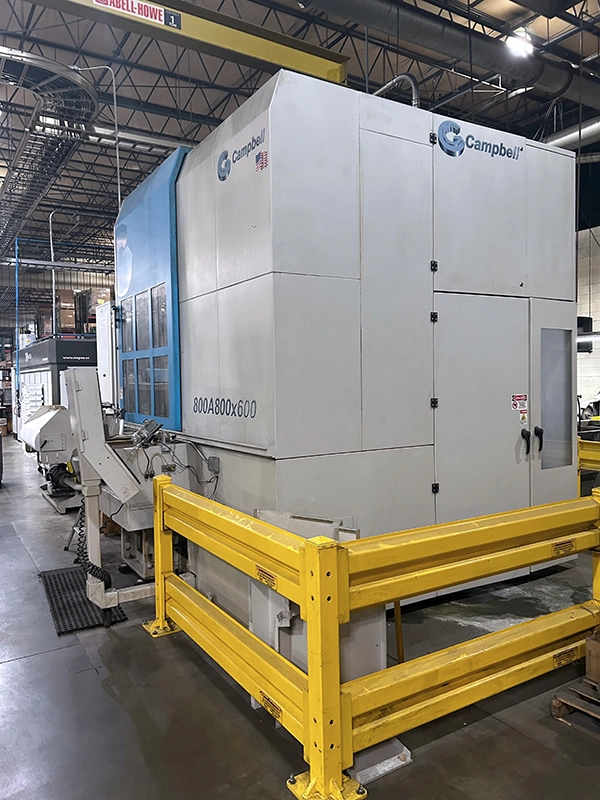

USED 2018 CAMPBELL 800A 800x600 (MVF-240-1600)
Overview
Description
Used 2018 Campbell 800A (MVF-240-1600). Machine Tool Bids offers plenty of CNC Grinders and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Campbell 800A (MVF-240-1600) or any of our machines.
Specifications
X Axis Travel: 32" plus 8"
Z Axis Travel: 20"
Y Axis Travel: 24"
Rapid Traverse Speed: 300" per minute
Positioning Accuracy: 5 Microns (0.0002 inch)
Width: 24"

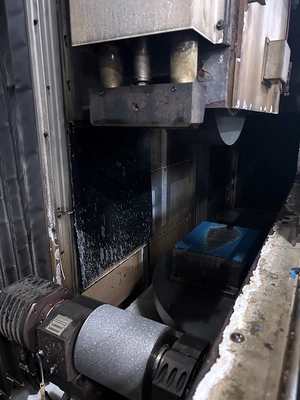

Wheel Size: 20 " x 6" wide
Power: RPM Range; 3.75Kw (5Hp) @ 0-5500rpm
Bore Diameter: 2.05"
Electrical Requirements: Machine Only 460 V – 60Hz – 3 phase – Wye configuration –200-225 amps (approximate)
Pneumatics: 560 l/min @ 5.5 bar (20 cfm @ 80 psi)
X Axis Travel: 32" plus 8"
Z Axis Travel: 20"
Y Axis Travel: 24"
Rapid Traverse Speed: 300" per minute
Positioning Accuracy: 5 Microns (0.0002 inch)
Width: 24"
Wheel Size: 20 " x 6" wide
Power: RPM Range; 3.75Kw (5Hp) @ 0-5500rpm
Bore Diameter: 2.05"
Electrical Requirements: Machine Only 460 V – 60Hz – 3 phase – Wye configuration –200-225 amps (approximate)
Pneumatics: 560 l/min @ 5.5 bar (20 cfm @ 80 psi)
Equipped With

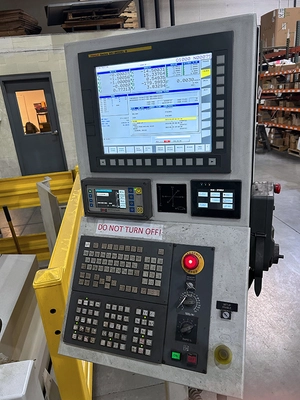

Fanuc 35i CNC Control
Traveling Column
180° Table Indexer w/ Two Fixture Assemblies
Wheel Balancer System
Coolant System

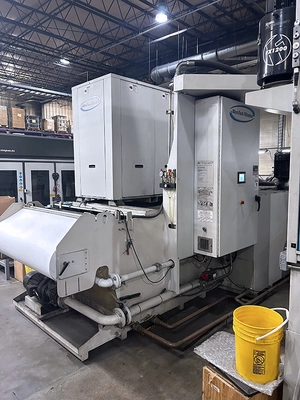

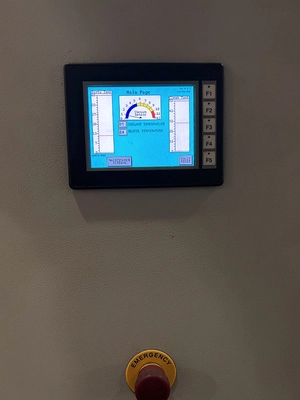

Chiller
Mist Removal System
Run Out Both Radially And Axially
2.5 Microns (0.0001 inch)
beyond table edge
