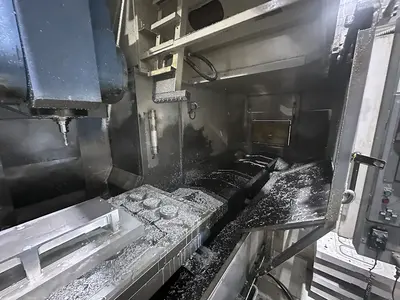

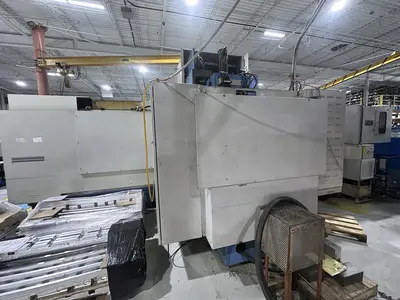

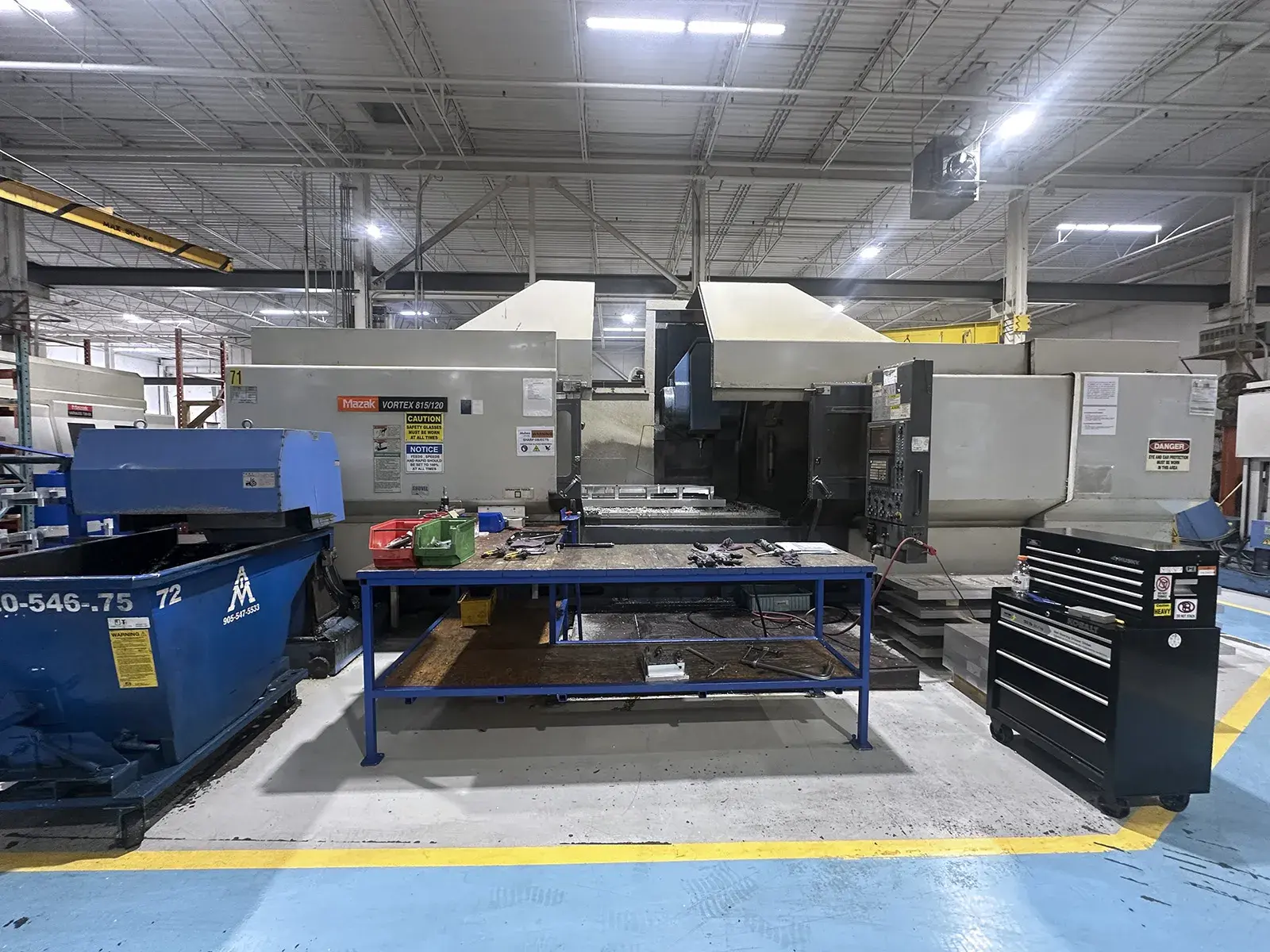

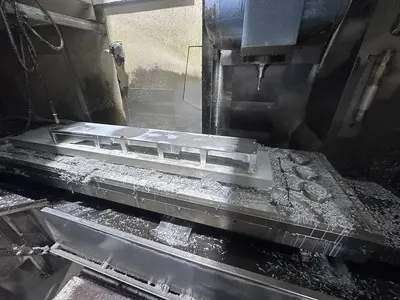

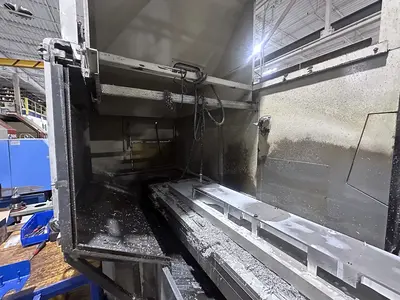

USED 2001 MAZAK Vortex 815/120-5X

Table Size: 31.9″ x 127.6″
Travels:
X Axis Travel: 120″
Y Axis Travel: 31.89″
Z Axis Travel: 29.53″
A axis : +/- 30°
B Axis: +/- 30°
Max Table Load: 6,600 Lbs.
Max Workpiece Height: 28.5″
Distance from spindle nose to table top: 5″ – 29.1″
Rapids:
Traverse Rate (X&Y Axis): 945 IPM
Traverse Rate (Z Axis): 787 IPM
Traverse Rate: (A&B Axis): 3600 Deg/Min
Max. Programmable Feedrate (X&Y Axis): 315 IPM

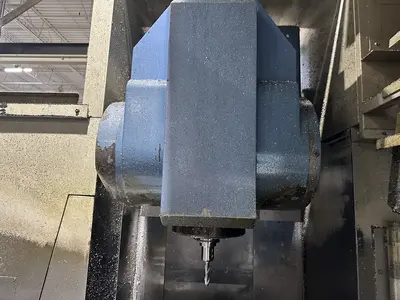

Spindle:
Spindle Taper: CAT 50
Max Spindle Speed: 25 – 10,000 RPM
Spindle HP: 40 HP
Magazine: 60 ATC
Max Tool Dia: 4.92″
Max Tool Dia With Adj. Pockets Empty: 8.27″
Max Tool Length: 14.96″ Dia.
Max Tool Weight: 44 Lbs.
Servo Drives: AC Motor
Power Required (Machine Only): 95.0 KVA
Dimensions (Approx LxWxH): 335″ x 177″ x 120″
Weight: 35,200 Lbs.
