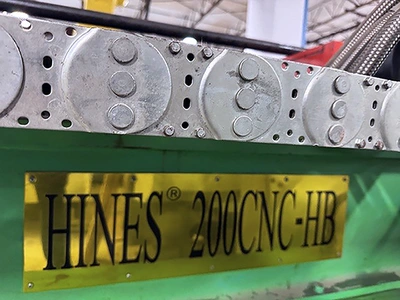

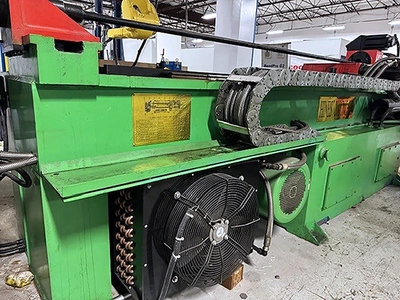

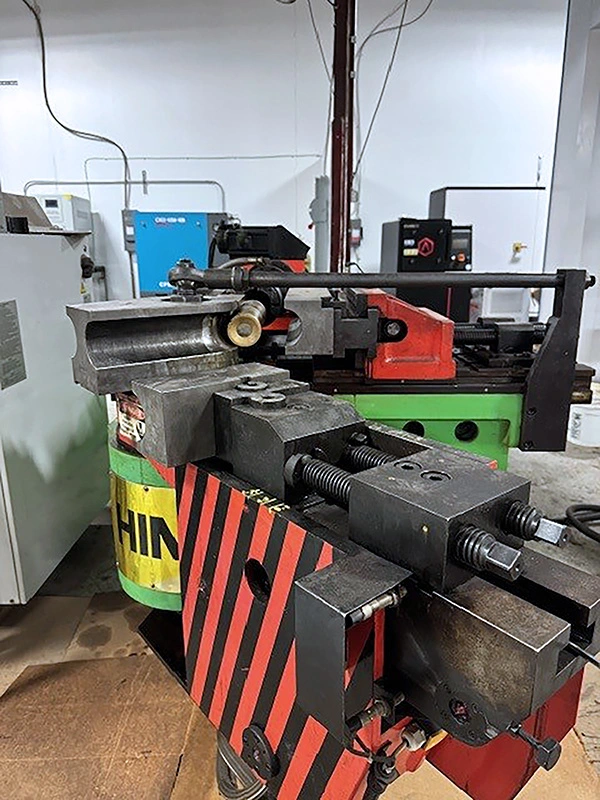

USED 2019 HINES cnc200

Capacity: 2.5″ OD x .200 Wall
Max. Feeding Capacity: 55ft/min
Standard Maximum Radius: 12 inch
Maximum Bend Angle: 190 degrees
Operating Pressure: 2000 psi
Reservoir Capacity: 175 US gallons
Approximate Weight: 10000lbs
Approximate Dimensions: 15′ L x 5′ W x 4.5′ H
Voltage: 220 volt/440/3 Phase/60Hz; 50Hz Optional
Bend Angle Accuracy (+ / -): .1 degree
Bend Arm Speed: 5 rpm
Maximum Tube Length Over Mandrel: 8ft
Motor: 25HP
Maximum POB: 28r/min

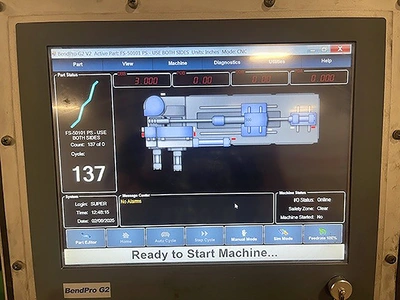

Bendpro G2 cnc control

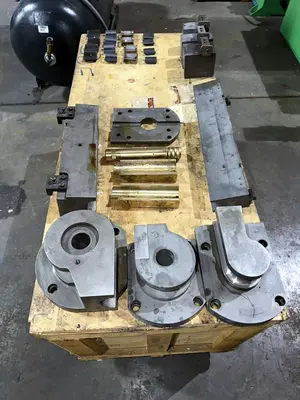

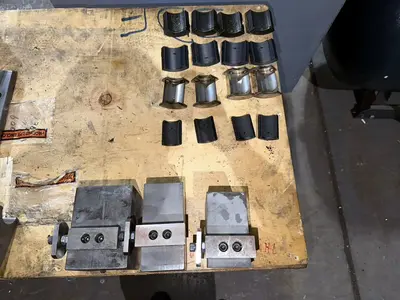

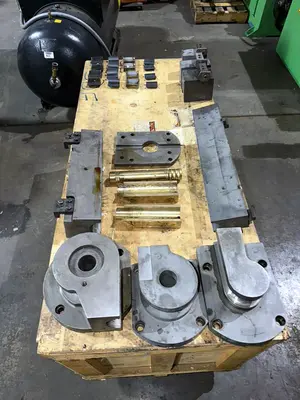

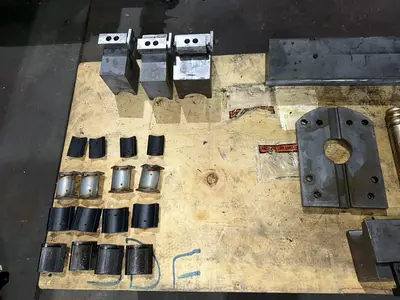

1 3/4" tooling

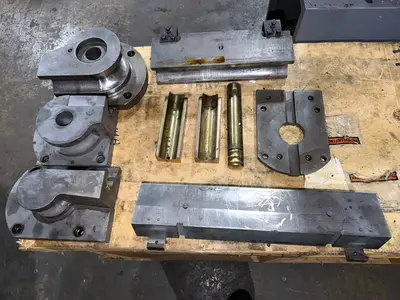

2.5" tooling mandreal extractor
