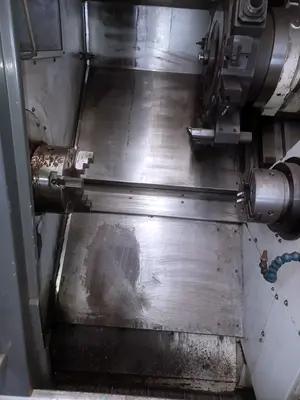

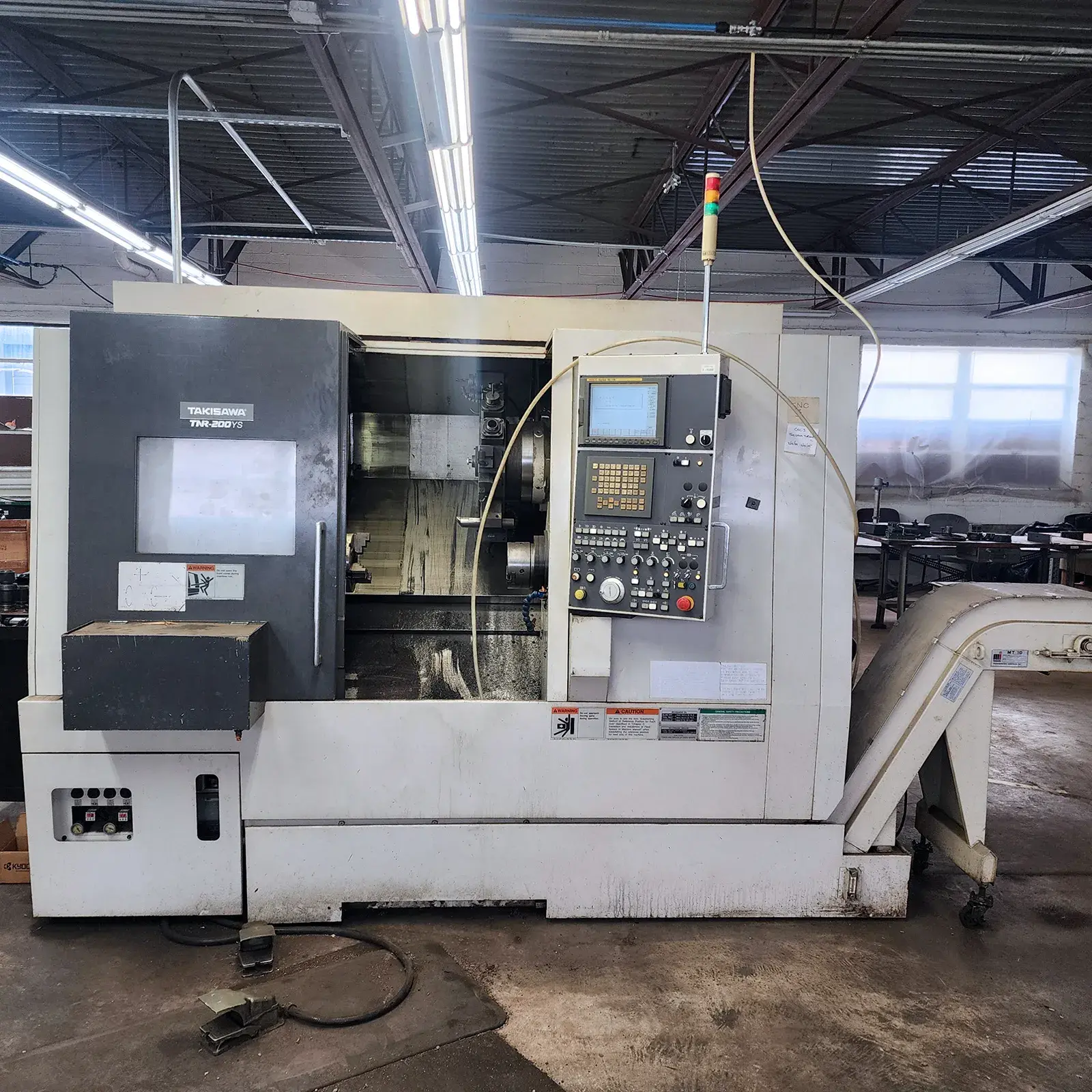

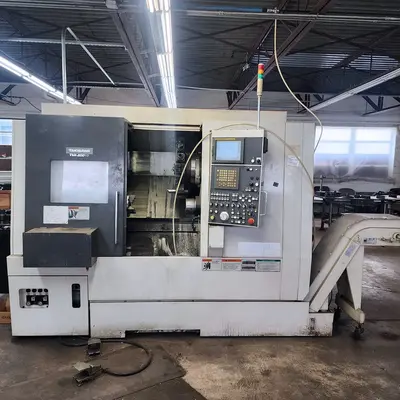

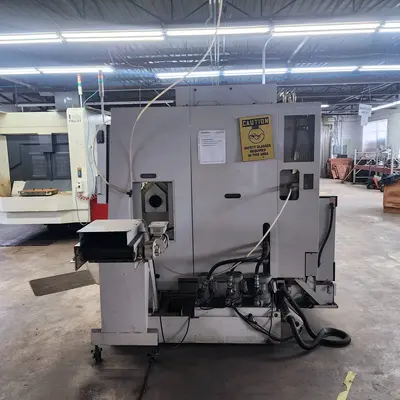

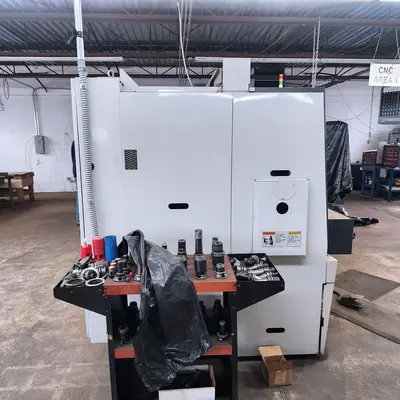

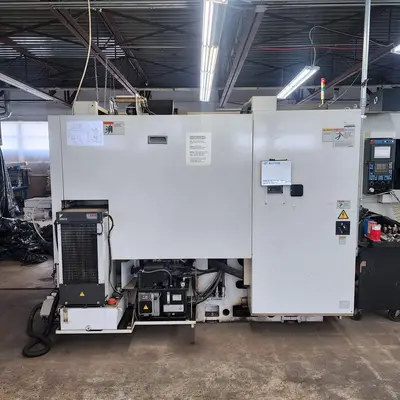

USED 2010 TAKISAWA TNR 200YS

Main Spindle Chuck: 8"
Sub-Spindle Chuck: 6"
Max. Turning Diameter: 8.66 in
Max. Turning Length: L3: 10.00 in / L5: 17.87 in
Bar Capacity (Left Spindle): 2.60 in
Bar Capacity (Right Spindle): 2.05 in
Spindle Speed: 3200 RPM
Sub-Spindle Speed: 4000 RPM
Rotary Tool Speed: 6000 RPM
Spindle Motor Power: 10.05 HP / 7.38 HP
Sub-Spindle Motor Power: 4.96 HP / 2.95 HP

Parts Catcher
Chip conveyor
Live tooling (6 ID turning blocks and 6 VDI od turning)
