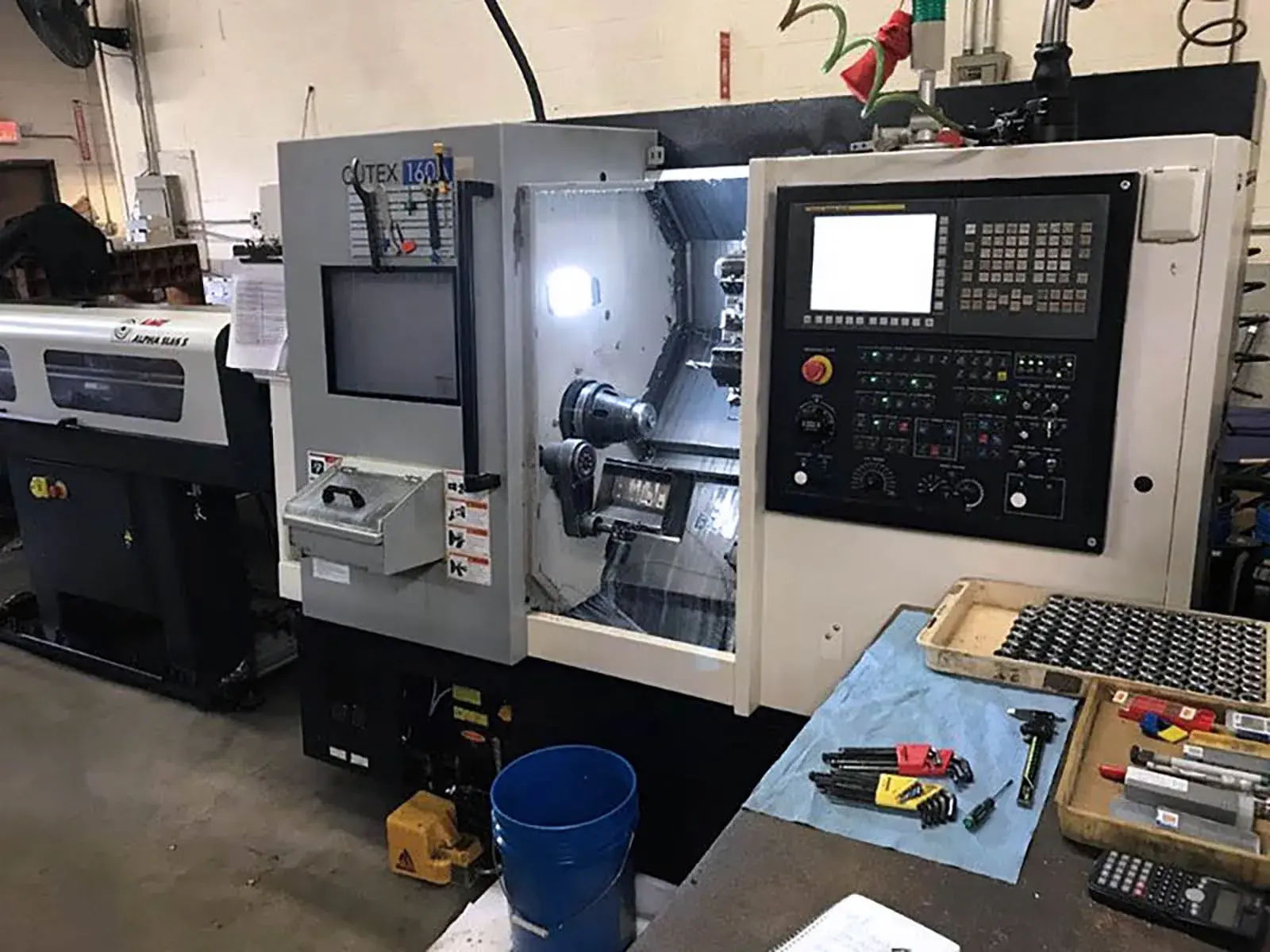

USED 2017 HWACHEON 160A
Overview
Specs
Swing over Bed: 21.65"
Max. Turning Diameter: 11.8"
Max. Turning Length: 11.81"
Chuck Size: 6"
Spindle Nose: A2-5
Max. Spindle Speed: 6000 RPM
Hole Thru Spindle: 2.2"
Max. Bar Capacity: 1.77"
Spindle Motor: 15/10 HP
Number of Tools: 12
Tool Size: 1" X 1.5"
Tailstock Quill Diameter: 2.36"
Tailstock Quill Stroke: 3.15"
Tailstock Quill Taper: MT#4
Approx. Weight: 7,250 LBS
Equipped With

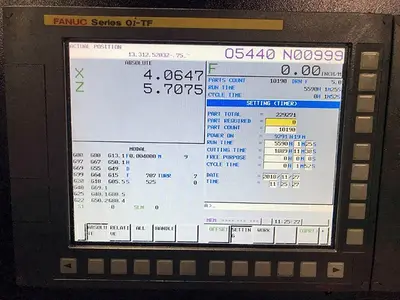

FANUC 0iTF CNC CONTROL
COLLET CHUCK
TOOLSETTER
PARTS CATCHER

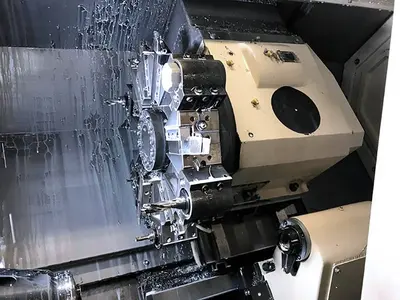

12 POSITION TURRET

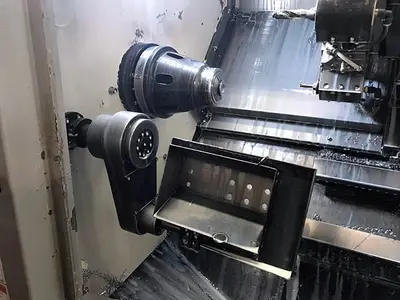

TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS AND MANUALS

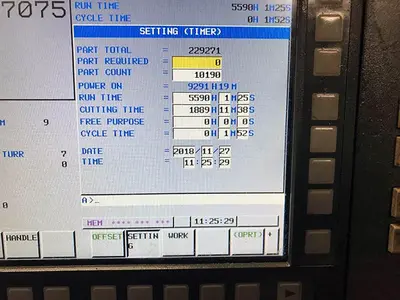

CUTTING TIME 4664
