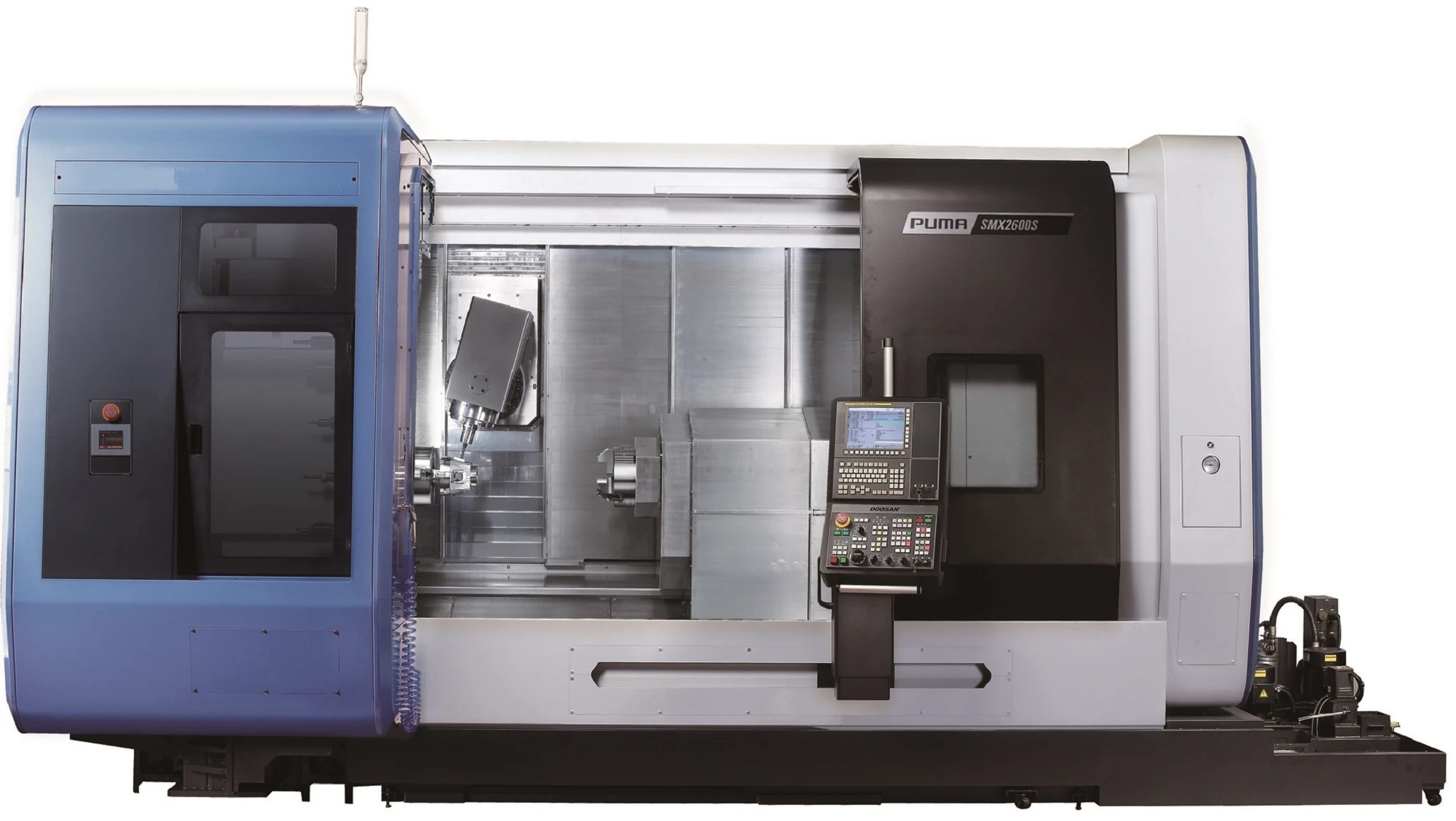

NEW DN Solutions SMX 2600S

Overview
Description

SMX2600S multi-task milling/turning centers are designed for heavy and interrupted
cutting, long-term high accuracy and superior surface finishes. High speed tool change
with fast rapid traverse rates minimize non-cutting time. C-axis contouring, Y-axis offcenter
and B-axis any-angle milling/drilling allow for single set-up completion of highly
complex work pieces. Same-size integral motors on both left and right spindles provide
improved performance and flexibility. Multi-tasking capabilities increase productivity
and provide for just-in-time production requirements by reducing lead time, changeover
time, set-up time, and time between operations.

Specifications
Swing25.98"659.89 mm
Machining Length60.63"1,540 mm
Bar Capacity3.187"80.95 mm
Power35 hp26.1 kW
Max RPM4,000 RPM4,000 RPM
Turning Dia25.98"659.89 mm
ControlCNC (Fanuc CUFOS)CNC (Fanuc CUFOS)
