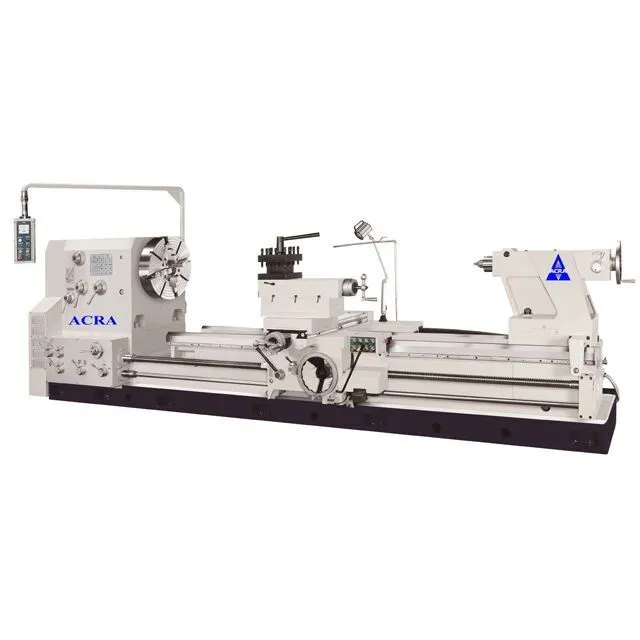

ACRA 65000SHT Heavy Duty Precision Gap Bed Engine Lathe has a 65" swing and 80" - 600" distance between centers. Made in Taiwan - High Quality! 40 HP, 230/460V AC/3PH Spindle Drive Motor.Standard equipment includes: Halogen Light, 4 Way Tool Holder, Moving Splash Guard, 4 Way Rapid Travel and Coolant System.
| Lathe Type | Heavy Duty | Heavy Duty |
| Swing Over Bed | 65" | 1,651 mm |
| Distance Between Centers | 320" | 8,128 mm |
| Spindle Bore | 6.02" | 152.91 mm |
| Spindle Nose | A2-15 | A2-15 |
| Motor | 40 hp | 29.8 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 468" x 90" x 95" | 468" x 90" x 95" |
| Weight | 51,120 lbs. | 51,120 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional items - Call for price:
Steady Rest (2-3/4" — 16-15/16")
Steady Rest (11" — 23-1/2")
Steady Rest (23" — 34.64")
Steady Rest (31.49" — 43.30")
Taper Attachment
Installation Taper Attachment
Full Length Splash Guard 80"
Full Length Splash Guard 120"
Full Length Splash Guard 160"
Full Length Splash Guard 200"
Full Length Splash Guard 240"
Newall Digital Read-Out-60"/80"/100"/120"/160"/200"/240"
