NEW EMCO UniversalTurn 50
Overview
Description

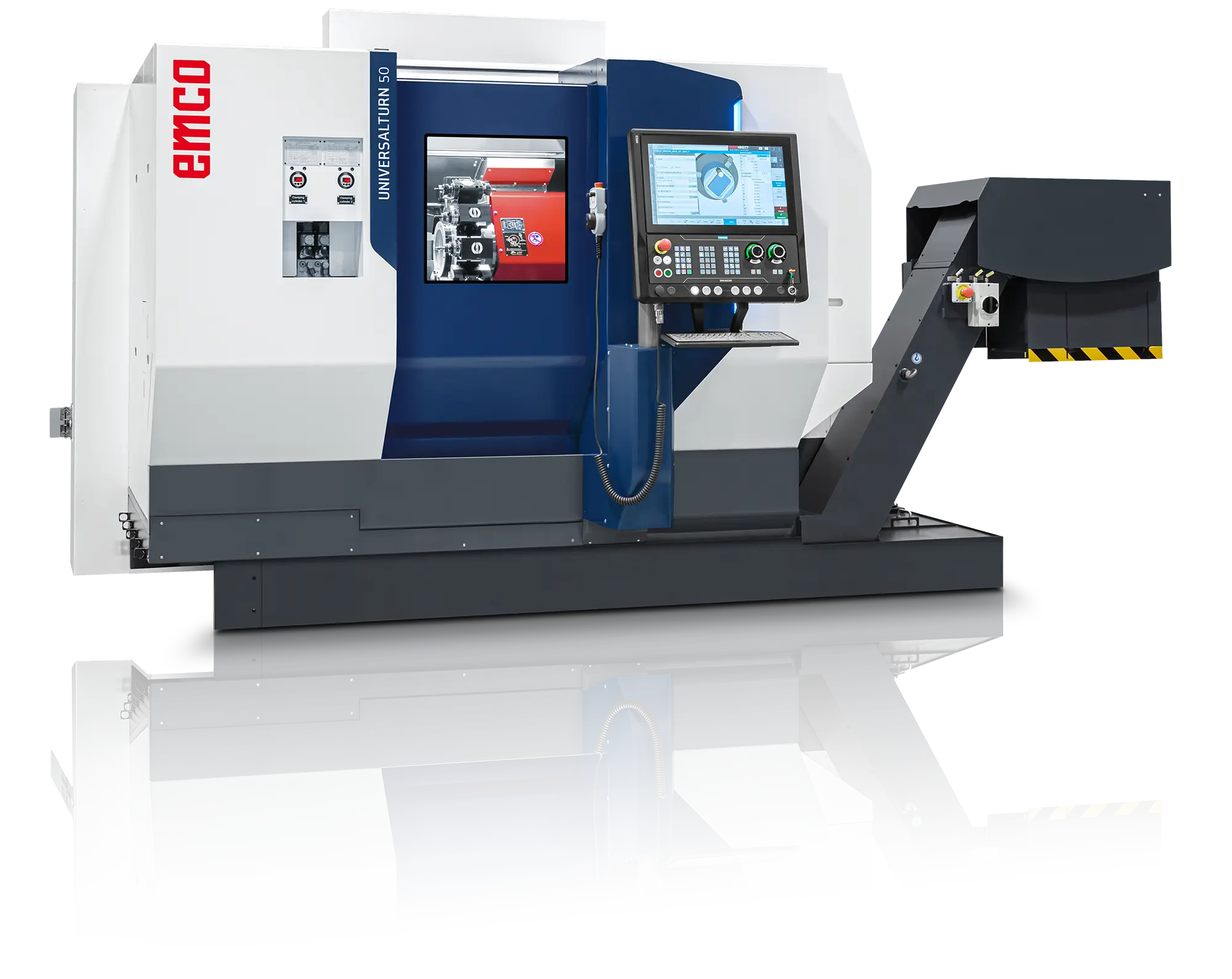

With the new UNIVERSALTURN 50, EMCO sets the next milestone in complete machining of bars and chuck parts. Developed for maximum precision, dynamics and process reliability, the compact high-performance turning center offers everything that modern manufacturing centers require: powerful drive
systems, an integrated Y-axis for extended milling and flexible automation concepts.
Whether complex turned and milled parts for mechanical engineering, the automotive industry, medical technology or defence the UNIVERSALTURN 50 impresses with its outstanding rigidity, intuitive operation and scalable equipment.
Thanks to proven EMCO technologies combined with forwardlooking developments, users benefit from maximum efficiency, high cost-effectiveness and the highest level of manufacturing quality.
Experience a new dimension in precision and productivity made by EMCO.
*Launch Edition Machine includes Extra options and free start up tooling package. See details below for included extra options.
Customs and Delivery included in Promotional Price.
Specifications
| Swing | 16.93" | 430.02 mm |
|---|---|---|
| Machining Length | 20.08" | 510.03 mm |
| Bar Capacity | 2" | 50.8 mm |
| Spindle Connection | 0 | 0 |
| # Axis | 4 | 4 |
| Power | 40.2 hp | 30 kW |
| Max RPM | 6,200 RPM | 6,200 RPM |
| Turning Dia | 8.66" | 219.96 mm |
| Tailstock | Yes | Yes |
| Travel X/Y/Z | 6.88"/+/-1.57"/20" | 6.88"/+/-1.57"/20" |
| Distance between Centers | 29.9" | 29.9" |
| Rapids (X/Y/Z) | 78.74/32.81/98.43 SFM | 78.74/32.81/98.43 SFM |
| Tool Connection | VDI-30 | VDI-30 |
| Number of tools | 12 | 12 |
| Live Tools | 12 | 12 |
| Live Tool RPM | 5000 | 5000 |
| Live Tool Power | 5.36 | 5.36 |
| Tail Stock available | Yes | Yes |
| Control | CNC (Sinumerik ONE) | CNC (Sinumerik ONE) |
| Dimensions | 130.71" x 92.52" x 82.68" | 130.71" x 92.52" x 82.68" |
| Weight | 9700 lbs | 9700 lbs |
The following options are included:
o PARTS CATCHER (S5Z700)
Standard parts catcher system to unload
the components from the main or counter
spindle into a standard part box or to
the conveyor belt (optional).
Max. finished part length: 120 (200) mm
Max. finished part diameter: 51 mm
Max. finished part weight: 2 kg
o EMCO BAR LOADER INTERFACE FOR SECONDPARTY BAR LOADERS (X1Z140)
Interface for the attachment of bar
loaders or feeders. Programming is
carried out via M functions. The signal
exchange takes place via a HARTING plug
and must be adapted by the bar loader
manufacturer according to the EMCO
standard!
o CHIP CONVEYOR 1200 MM (S5Z660)
Hinged-type chip conveyor with
extraction height of approx. 1200mm,
suitable for:
# Long steel shavings
# Snarl chips
# Wool chips
# Dry- and wet machining
o TOOL PRESETTER (S5Z610)
For automatic measurement of tools in
the machine. The measuring arm is
permanently installed in the work area
and can be automatically swiveled in at
the touch of a button or
using the M function.
Advantages:
# Fast measurement of tools
# Shorter setup times
# High repeat accuracy # precise
measurement of tools
(The corresponding setting gauge must
be ordered separately. VDI30/S6Z110,
BMT45/S3Z840Z)
o 14 BAR HIGH PRESSURE COOLANT PUMP/50Hz
(S5Z080)
Additional high-pressure pump with
14 bar through the tool turret - 50Hz.
o TOOL HOLDER PACKAGE # VDI30
STATIONARY AND DRIVEN TOOLS (R6Z860Z)
Tool holder package consisting of:
2x - RADIAL tool holder M4 (R3Z350)
1x - RADIAL tool holder M3 (R3Z360)
2x - Collet holder ER 25 (W1Z480)
1x - Carbide insert drill holder Ø25
(R3Z430)
1x - Boring bar holder Ø16 (R3Z300W)
1x - Angular milling holder 90°(R2Z780)
1x - Milling holder straight (440420W)
1x - Set of hand-tools
