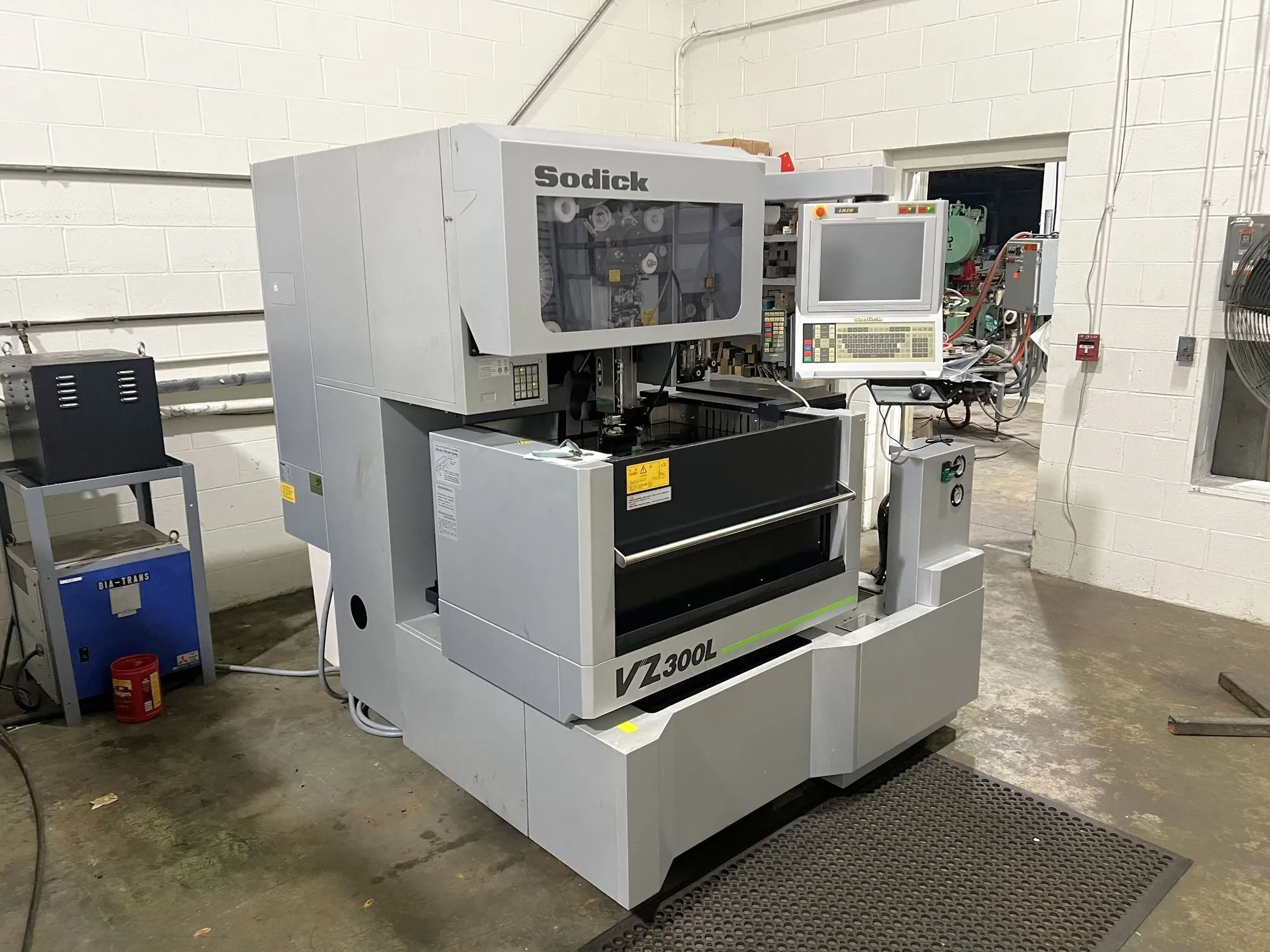

2015 Sodick VZ300L Linear Drive Wire EDM, used. Tank: 31.88" x 25.59", X/Y/Z Travel: 13.77"/9.84"/8.66". Features linear motors, absolute scales, ceramic components, LN2W generator, automatic wire threader. Ready for immediate purchase.
| TANK SIZE | 31.88" X 25.59" | 31.88" X 25.59" |
| MAX PART WEIGHT | 1,200 lb | 544.3 kg |
| X-AXIS TRAVEL | 13.77" | 349.76 mm |
| Y-AXIS TRAVEL | 9.84" | 249.94 mm |
| Z-AXIS TRAVEL | 8.66" | 219.96 mm |
| U & V AXIS TRAVEL | 3.14 | 3.14 |
| MAX TAPER ANGLE | +/- 15 DEG | +/- 15 DEG |
| WIRE DIAMETER | .0059 - .011" | .0059 - .011" |
| Dimensions | 27.95" X 81.49" X 70.86" | 27.95" X 81.49" X 70.86" |
| Weight | 5,280 LBS | 5,280 LBS |
LINEAR MOTORS (X/Y/Z AXES)
ABSOLUTE LINEAR SCALE (X/Y/Z AXES)
CERAMIC COMPONENTS
LINEAR MOTOR COOLING UNIT
LN2W GENERATOR
SODICK FINE CORNER CONTROL
FTII (FINE PICK-UP FUNCTION)
SUPER JECT AWT (AUTOMATIC WIRE THREADER)
LAN INTERFACE
USB PORT
*** MACHINE IS IN PLANT, UNDER POWER. AVAILABLE FOR IMMEDIATELY PURCHASE.
NEW PRICE FOR ABOVE EQUIPPED MACHINE IF PURCHASED NEW: $210,000
