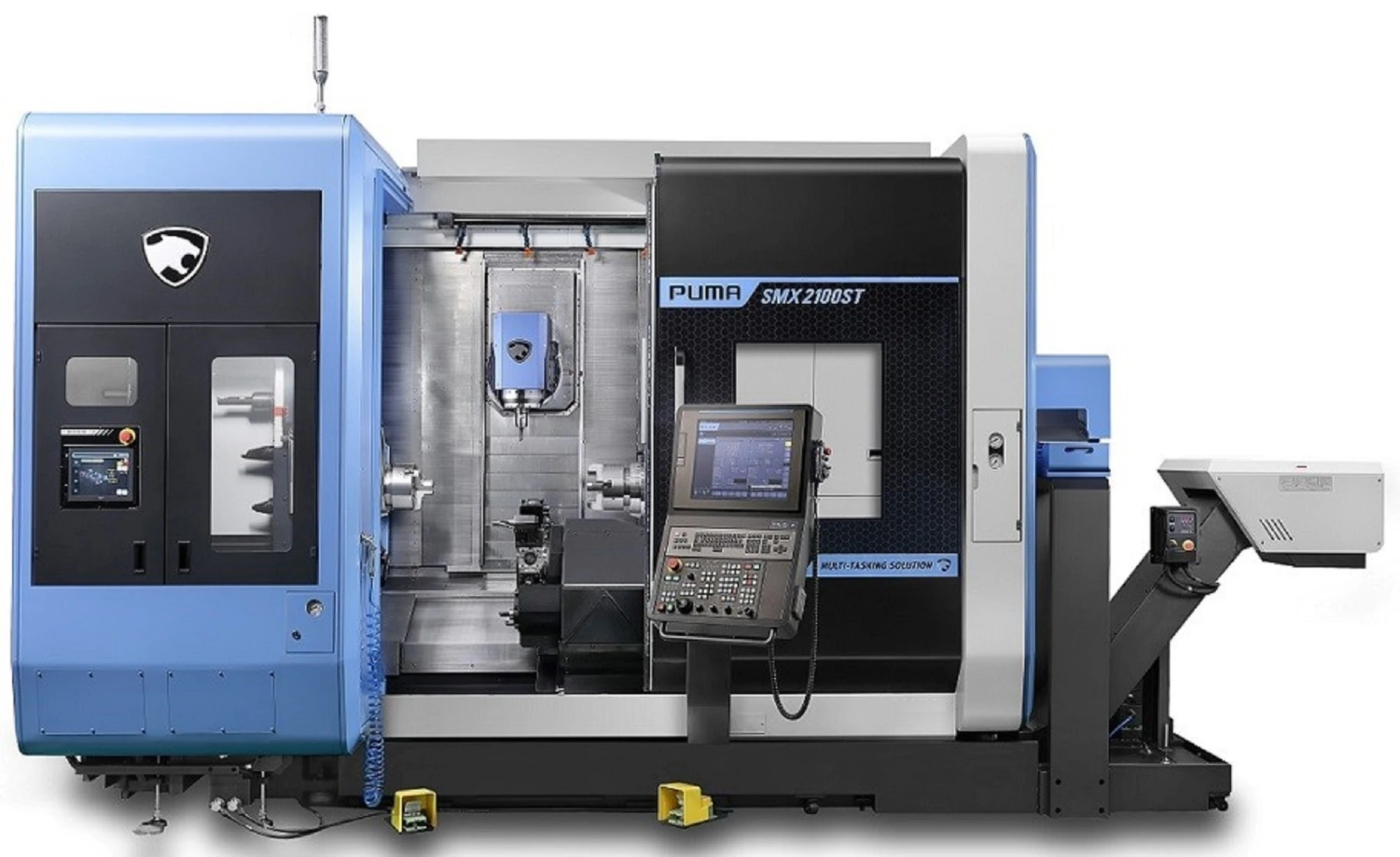

SMX2100STB multi-task milling/turning centers are designed for heavy and interrupted
cutting, long-term high accuracy and superior surface finishes. High speed tool change
with fast rapid traverse rates minimize non-cutting time. C-axis contouring, Y-axis offcenter
and B-axis any-angle milling/drilling allow for single set-up completion of highly
complex work pieces. Integral motors on both left and right spindles provide improved
performance and flexibility. Multi-tasking capabilities increase productivity and provide
for just-in-time production requirements by reducing lead time, changeover time, set-up
time, and time between operations.
| Swing | 23.62" | 599.95 mm |
| Machining Length | 40.9" | 1,038.9 mm |
| Bar Capacity | 3.189" | 81.001 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 23.62" | 599.95 mm |
| Control | CNC (Fanuc CUFOS) | CNC (Fanuc CUFOS) |
