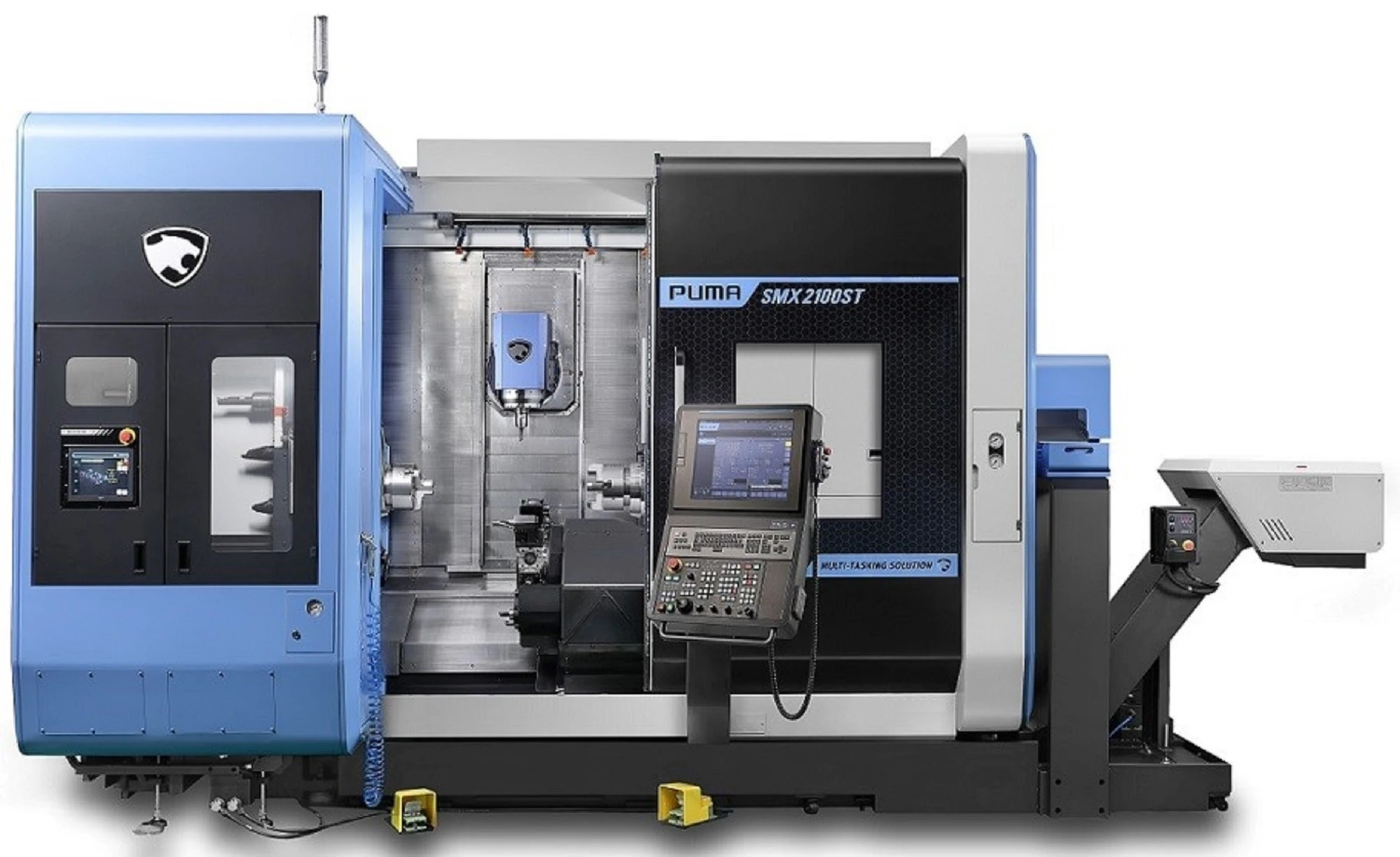

NEW DN Solutions SMX 2100S

Overview
Description

SMX2100S multi-task milling/turning centers are designed for heavy and interrupted
cutting, long-term high accuracy and superior surface finishes. High speed tool change
combined with fast rapid traverse rates minimize non-cutting time. C-axis contouring,
Y-axis off-center and B-axis any-angle milling/drilling allow for single set-up completion
of highly complex work pieces. Same-size integral motors on both left and right
spindles provide improved performance and flexibility. Multi-tasking capabilities
increase productivity and provide for just-in-time production requirements by reducing
lead time, changeover time, set-up time, and time between operations.

Specifications
Swing23.62"599.95 mm
Machining Length40.9"1,038.9 mm
Bar Capacity2.68"68.072 mm
Power30 hp22.4 kW
Max RPM5,000 RPM5,000 RPM
Turning Dia23.62"599.95 mm
ControlCNC (Fanuc CUFOS)CNC (Fanuc CUFOS)
