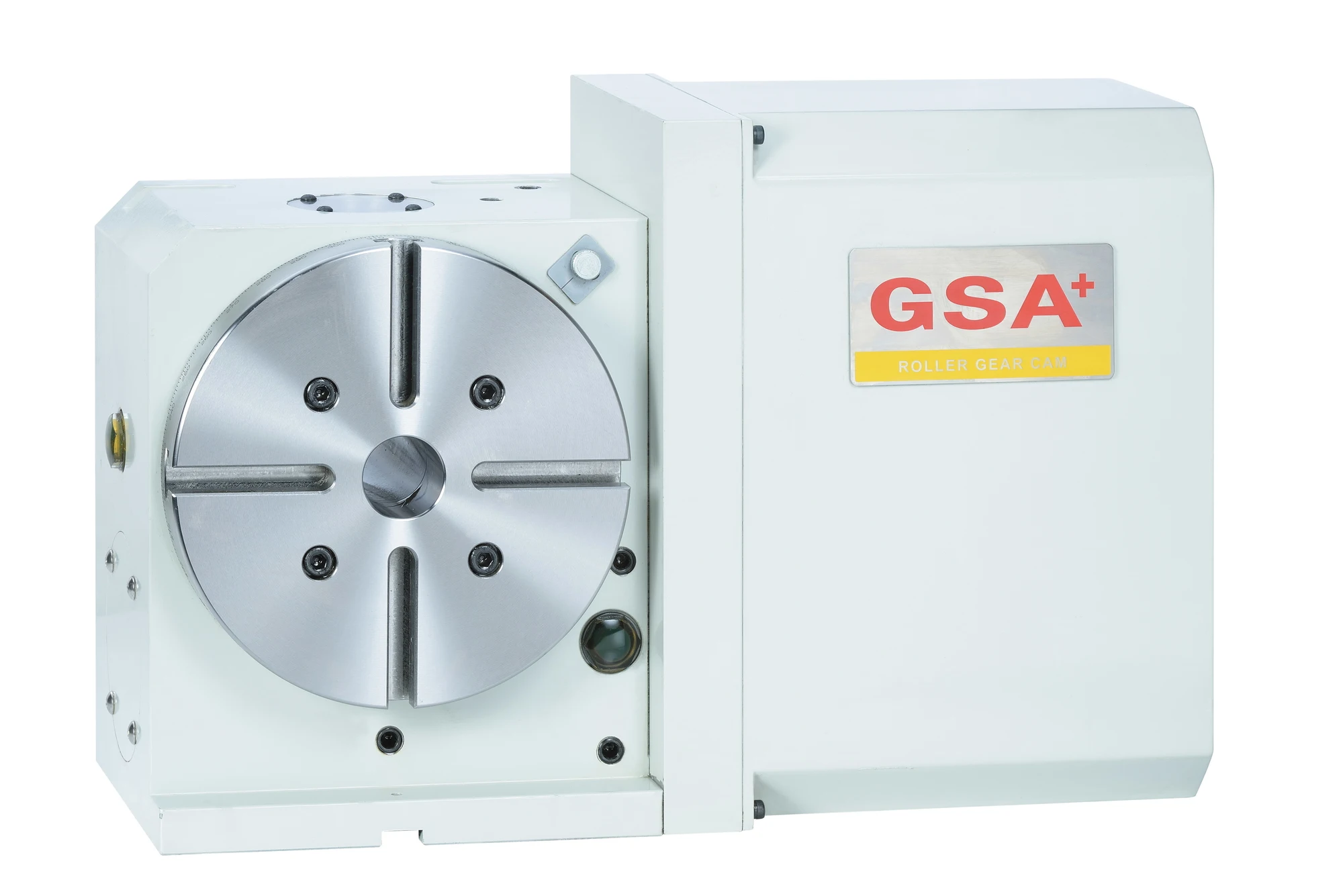

NEW GSA RCT-320R

Table Dia (mm/inch) 320
Center Height in Vertical (mm / inch) 210
Table Height in Horizontal (mm / inch) 250
Over all Height in Vertical Without Motor Cover (mm / inch) 380
Thru-Hole Dia (mm / inch) 145H7 /80
Width of T-slot (mm / inch) 14H7
Width of Guide Block (mm / inch) 18h7
Servo motor type
- MELDAS HF-154T
- FANUC α8 i / 3000
- SIEMENS 1FK7063
- HEIDENHAIN QSY116E
Gear Ratio 1:60
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 33.3
Pneu. clamp force (kg•m) (P:5kg / cm2) 71
Hydro. clamp force (kg•m) (P:20kg / cm2) 142
Indexing Accuracy Class (sec.) 20"
Repeatability (sec.) 4"
Max. Machining Force (kg•m) 80
N.W. (kgs) 200
