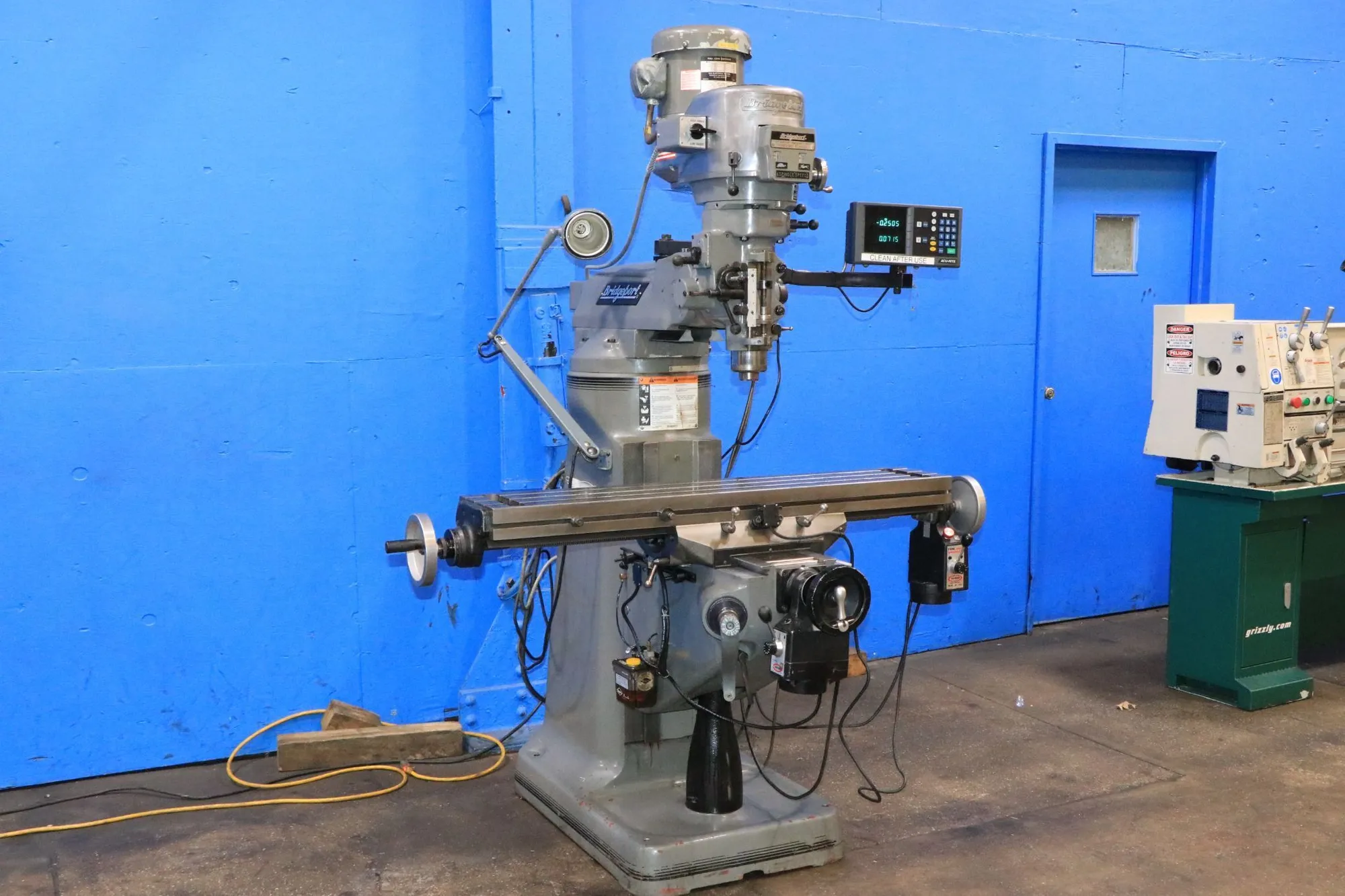

2002 Bridgeport Series I Vertical Mill, featuring 9"x48" table, 36"x12"x5" travel, 2 hp motor, 4,200 RPM. Equipped with AcuRite 2-axis digital readout, chrome ways, spray mist coolant system, and power feeds. Ideal for precise machining tasks.
| TABLE WIDTH | 9" | 228.6 mm |
| TABLE LENGTH | 48" | 1,219.2 mm |
| TRAVEL - LONG | 36" | 914.4 mm |
| TRAVEL - CROSS | 12" | 304.8 mm |
| QUILL TRAVEL (Z-AXIS) | 5" | 127 mm |
| KNEE TRAVEL | 16" | 406.4 mm |
| RAM TRAVEL | 12" | 304.8 mm |
| SPINDLE MOTOR | 2 hp | 1.5 kW |
| SPINDLE SPEED | 4,200 RPM | 4,200 RPM |
| SPINDLE TAPER | R-8 | R-8 |
ACURITE 2-AXIS DIGITAL READOUT
CHROME WAYS
BRIDGEPORT SERIES I MILLING HEAD (SN: 314709)
BIJUR SPRAY MIST COOLANT SYSTEM
BIJUR ONE SHOT LUBRICATION SYSTEM
SERVO MODEL TYPE 350X POWER FEED FOR LONGITUDINAL TRAVELF
SERVO MODEL TYPE 150 POWER FEED FOR CROSS TRAVEL
