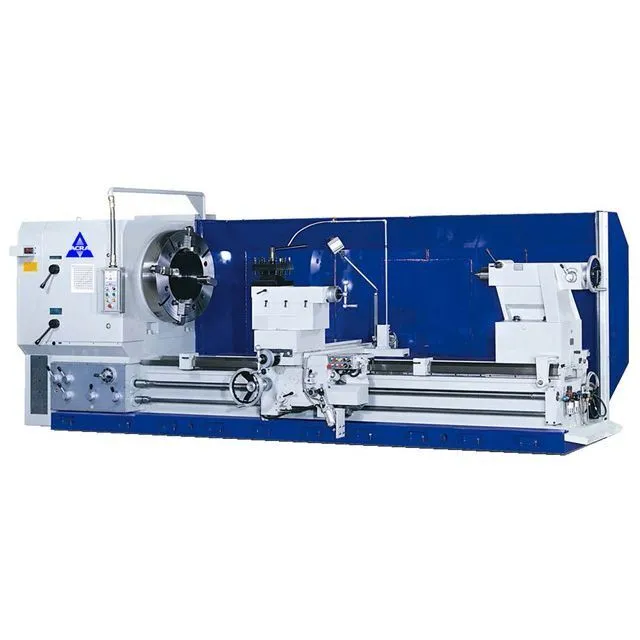

ACRA SGT Heavy Duty Precision Gap Bed Engine Lathe has a 45" swing and 60" - 400" distance between centers. Made in Taiwan - High Quality! 30 HP x 4P, 230/460V AC/3PH Spindle Drive Motor. Standard equipment includes: Halogen Light, 4 Way Tool Holder, Travel Splash Guard, 4 Way Rapid Travel and Coolant System.
| Lathe Type | Heavy Duty | Heavy Duty |
| Swing Over Bed | 45" | 1,143 mm |
| Distance Between Centers | 200" | 5,080 mm |
| Spindle Bore | 6.02" | 152.91 mm |
| Spindle Nose | A2-11 | A2-11 |
| Motor | 30 hp | 22.4 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 300" x 80" x 80" | 300" x 80" x 80" |
| Weight | 26,700 lbs. | 26,700 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional items - Call for Price:
Steady Rest (2-3/4" — 16-15/16")
Steady Rest (11" — 23-1/2")
Follow Rest
Face Plate
9" Spindle Bore A2-15
10" Spindle Bore
12.2" Spindle Bore A2-20
21" Spindle Bore A2-28
Taper Attachment
Installation Taper Attachment
40" Chuck Cover
Full Length Splash Guard 80"
Full Length Splash Guard 120"
Full Length Splash Guard 160"
Full Length Splash Guard 200"
Full Length Splash Guard 240"
Auto Rapid Threading Device
Newall Digital Read-Out-60"/80"/100"/120"/160"/200"/240"/280"/320”/360”/400”/440”
