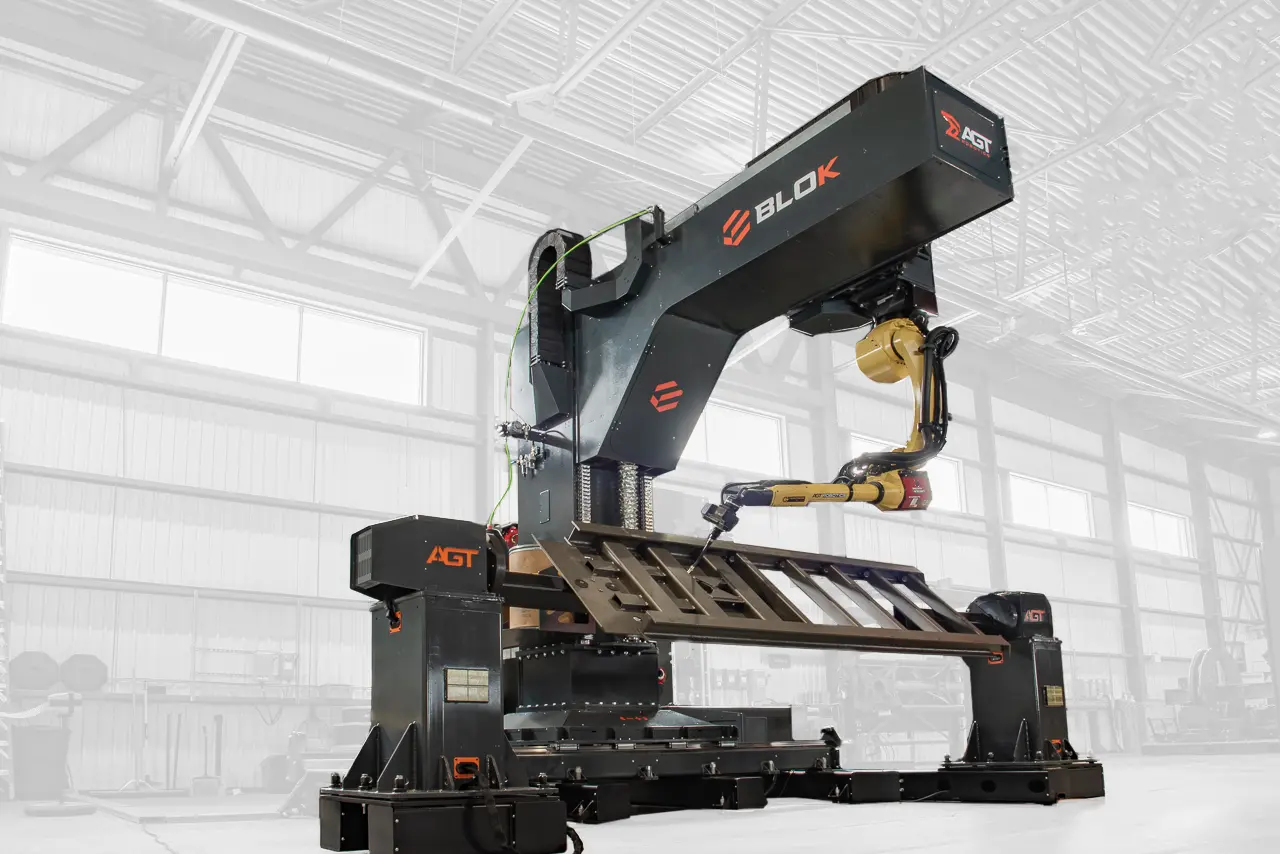

NEW AGT Robotics Blok 500

The BLOK 500 is a highly advanced modular robotic welding system tailored for complex heavy fabrication tasks. It incorporates three-axis mobility (X, Y, and Z), enabling the welding column to move vertically to access deeper parts. This capability is perfect for welding larger and more intricate items like railcars, containers, and heavy machinery components. For enhanced reach and flexibility, the BLOK 500 also offers optional rotational movement, making it a versatile choice for demanding welding requirements.

Imperial / Metric
Fence to Fence: 77′ / 23.51 m
EWZ 1: 26′ / 7.89 m
EWZ 2: 26′ / 7.89 m
EWZ 1 & 2: 65′ / 19.98 m
Height: 12′ / 3.7 m

PART TOLERANCES

Infeed beams and sections must meet these limits:
• Flatness ≤ 2 mm (0.09″)
• Cut straightness ≤ 2 mm (0.09″)
• Cut angle ± 2 mm (0.09″)
• CAD vs. actual (all dimensions) ≤ 4 mm (0.16″) deviation

AGT BLOK 500 Robot Cantilevered Gantry
Includes servo-motor driven robot X-axis carriage with:
Servo “Y” axis w ( ) m stroke
Servo “Z” axis w ( ) m stroke (Positioning only)
Mounting for robot and robot controller
Mounting for Welding Power Source
Mounting for Bulk Wire Barrel
