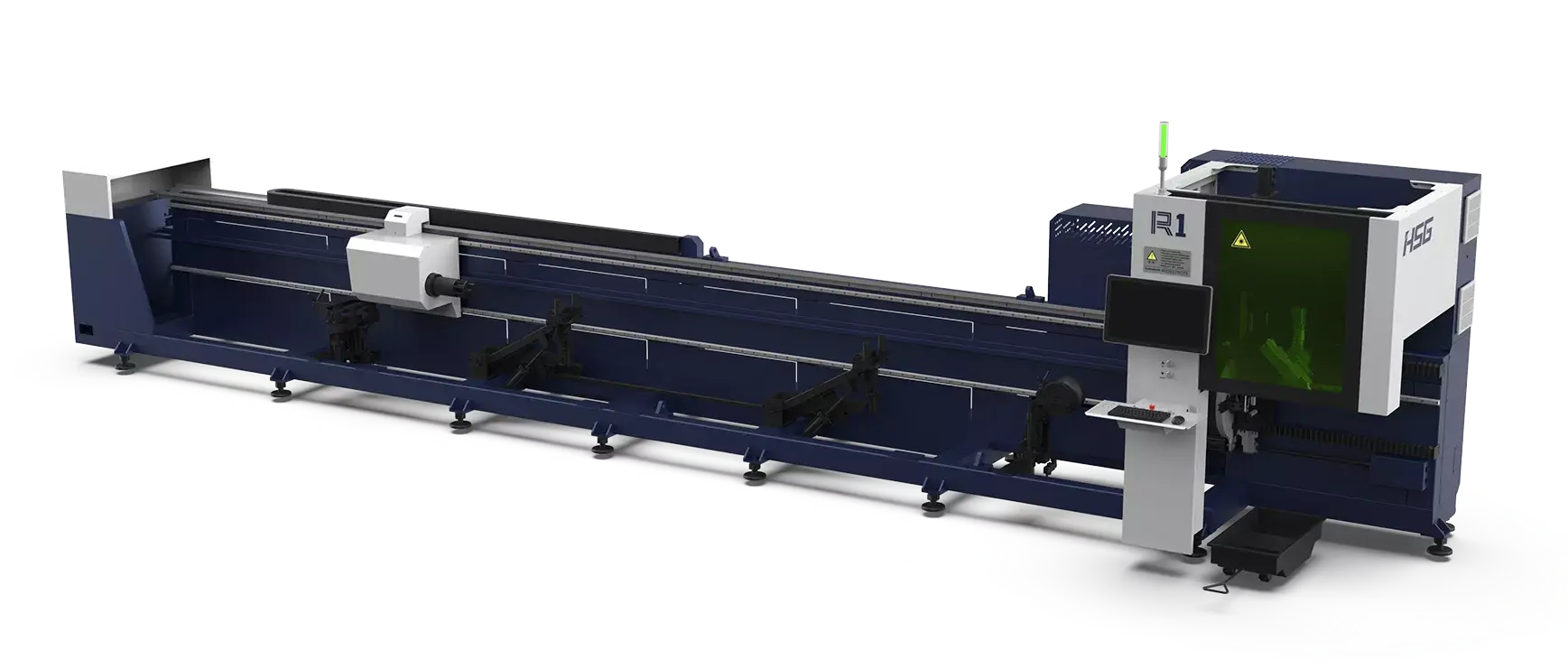

Fast and high-quality cutting of tiny tubes
Minimum diameter for round pipes:8mm
Minimum edge length of square pipes: 8mm
High dynamic performance
Speed of chuck:150m/min
Rotation speed of chuck: 150r/min
Acceleration of chuck:1.5G
Increasing the production efficiency and productivity , significantly reduce your lead times.
Efficient Multi-mode Loading
* R1 Series matches with automatic material racks to achieve loading material in 20s.
* Automatic material racks can support the tubes with 20mm-120mm diameter and 4m-6.5m length.
* Automatic material rack is compatible with semi-automatic loading mode for loading one by one.
Chuck Jumping for Short Tailings
* Standard equipped with chuck jumping of the cylinder and R1 Series can shorten the large amplitude of tailing length through chuck jumping.
* Jumping type of high-precision cutting can ensure the cutting accuracy of long tubes by chuck displacement.
* Optional servo chuck jumping can finish chuck jumping action accurately and efficiently.
Follow-up Support for High Precision
The machine bed is equipped with highly sensitive and independent servo follow-up support to provide enough support force in rotation cutting and achieve high cutting accuracy.
Intelligent Bus Operating System
* Various auxiliary functions of tube laser cutting machines to satisfy multiple processing demand
* R1 series is equipped with professional nesting software to achieve efficient management of production progress and price calculations.
Power 1500-3000W
X/Y-axis Positioning Accuracy ±0.05mm/m
Cutting Capacity of Round Tube Φ8-Φ120mm
Cutting Capacity of Square Tube 8*8-120*120mm
Weight of Single Tube ≈80kg
