Full-stroke chucks
With the HSG full-stroke chucks, tubes can be manufactured across the entire clamping range from 40mm to 350mm without the need for retooling.
Quickly process open profiles
The machine is equipped with national-standard profile grippers as standard, which can easily cut angle steel, channel steel and H steel.
Automatic loading and unloading
Automatic loading and unloading of pipes, efficient and time-saving, shorten production preparation time.Greatly improves operational safety, saves labor and reduces production costs.
Heavy-duty tube following support system
The heavy-duty tube following support system provides all-round effective support in pipe processing and improves the accuracy of heavy pipe processing.
Diverse product options
It supports a variety of models to meet diverse processing needs
Optional processing pipe length: 6.5m/9m/12m
Optional single tube loading capacity: 600kg/1000kg
HSG Intelligent Bus Operating System
Thanks to the comprehensive pipe processing application assistance and professional pipe cutting process database with HSG years of accumulated data , tube processing is even more convenient.

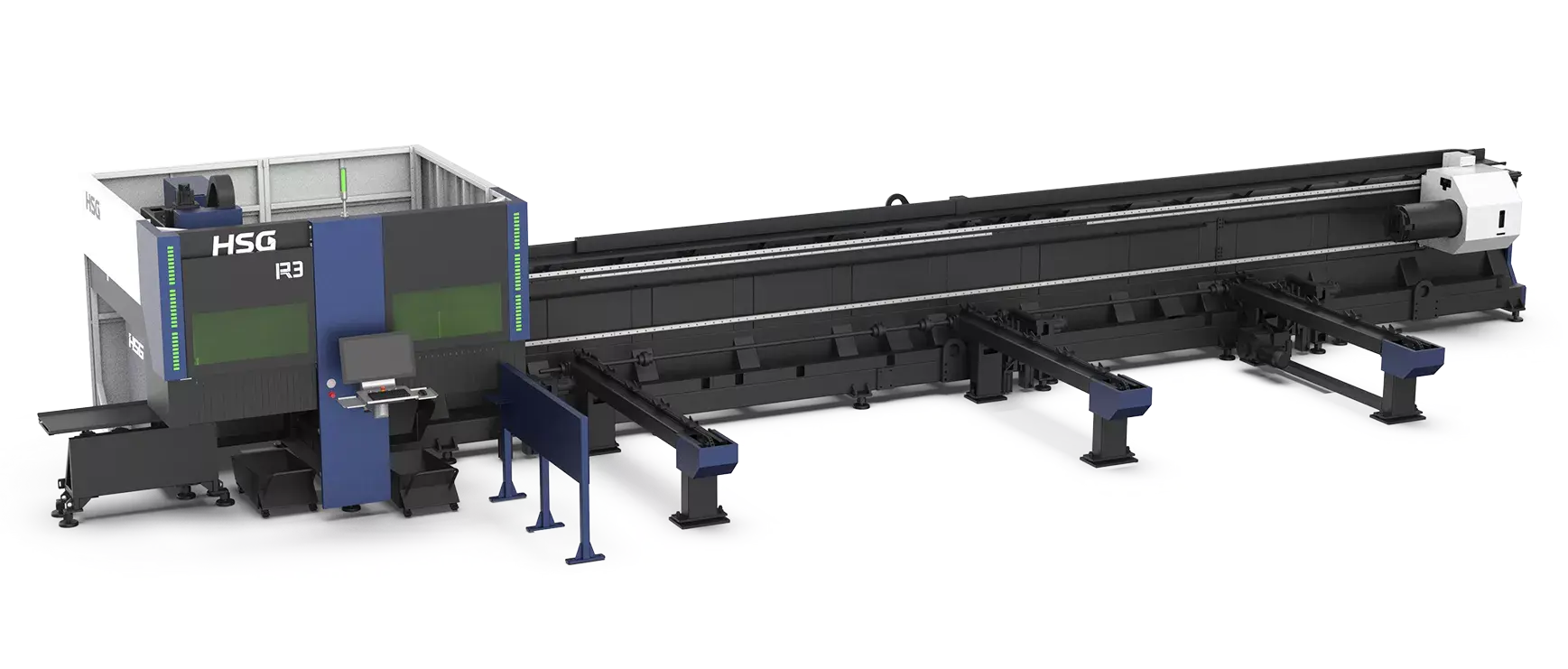

Clever designs with laser tube cutting simplify your processes.
Power 3000W-20000W
X/Y-axis Positioning Accuracy ±0.03mm/m
Cutting Capacity of Round Tube Φ40-Φ350mm
Cutting Capacity of Square Tube 40*40-350*350mm
Weight of Single Tube ≈600kg
