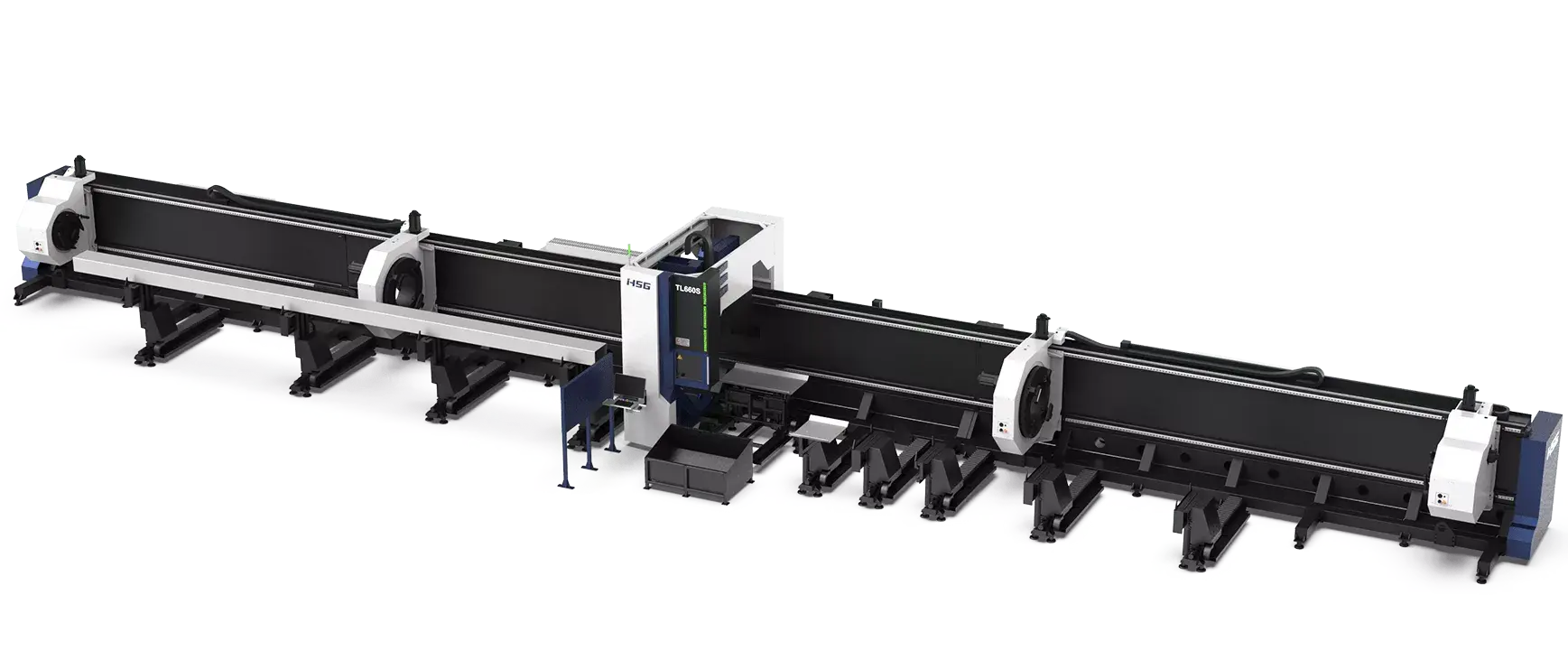

Four Chucks Structure
HSG Laser released the first generation of HSG four-chuck heavy-duty tube laser cutting machine, laying a groundwork for cutting heavy, large and long tube stably.
1.Heavy-duty pneumatic chucks for stable clamping
2.Maximum clamping diameter: 660mm (Round Tube)
3.Single tube bearing: 3000Kg
Automatic Loading and Unloading System
The system is easy for heavy-duty tube loading and unloading without shutdown waiting. The system can decrease unproductive time and avoid accident probabilities of artificial loading and unloading.
HSG-X
Bus Control System
HSG-X control system is bus-based and developed by HSG Laser. With intelligent and easy-to-operate service, it can offer users effective solutions to address problems of difficult operation, low efficiency and high costs.
1.21.5-inch touch screen with concise interface
2.Monitor core components in real time and give early alarm
3.Detect tube deviation if needed
4.Click to create processing report
Tube Splicing Technology
The operating control offers 50+ kinds of tube splicing patterns, for convenience of subsequent welding, such as splicing of male and female head of square tube, 90° arc splicing, splicing of round tube tee, splicing of cut-through holes, 45° splicing of hexagon, splicing of angle iron and channel steel, etc.
Cut with Short Tailings
Four chucks can cut tubes with short tailings and improve material utilization by reverse cutting mode.
Power-off Cutting Restart Technology
Foreign-imported servo motor contains an absolute encoder to offer power-off cutting restart function, namely, users only need to click to restart the cutting and power failure will not be worried.
Power 6000W-20000W
X/Y-axis Positioning Accuracy ±0.1mm/m
Cutting Capacity of Round Tube Φ80-Φ660mm
Cutting Capacity of Square Tube 80*80-450*450mm
Weight of Single Tube 3000kg
