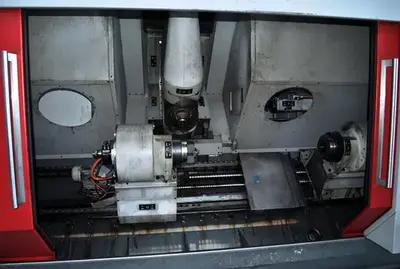

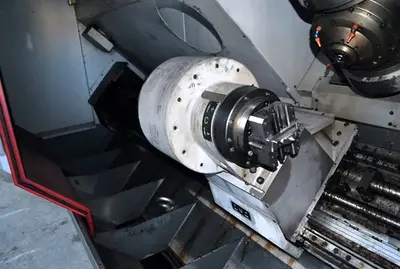

USED 2009 HAMUEL HSTM 1500

Used Hamuel HSTM 1500. This pre-owned 5 Axis Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Hamuel 5 Axis Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

X Axis Travel: 76"
Y Axis Travel: 15.75"
Z Axis Travel: 22.44"
Rapid Feeds: X/Y/Z 1,575 – 1,575 – 1,575 IPM
Spindle Speed: 16,000 rpm
B Axis: +/-95 °
Tool Magazine Capacity: CHAIN-TYPE 24 POS
Approx. Weight: 55,120 lbs
Overall Dimensions: 252" x 110" x 118"

SWARF CONVEYOR
PAPER FILTER
USB PORT
RENISHAW TOUCH PROBE
A/C AXIS CONTINUOUS POSITIONER
SIEMENS 840 D CONTROL UNIT
