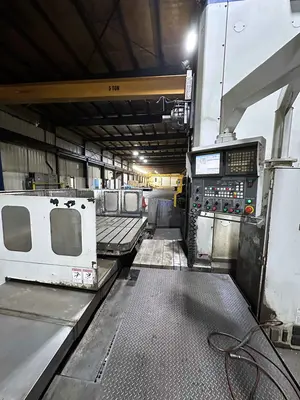

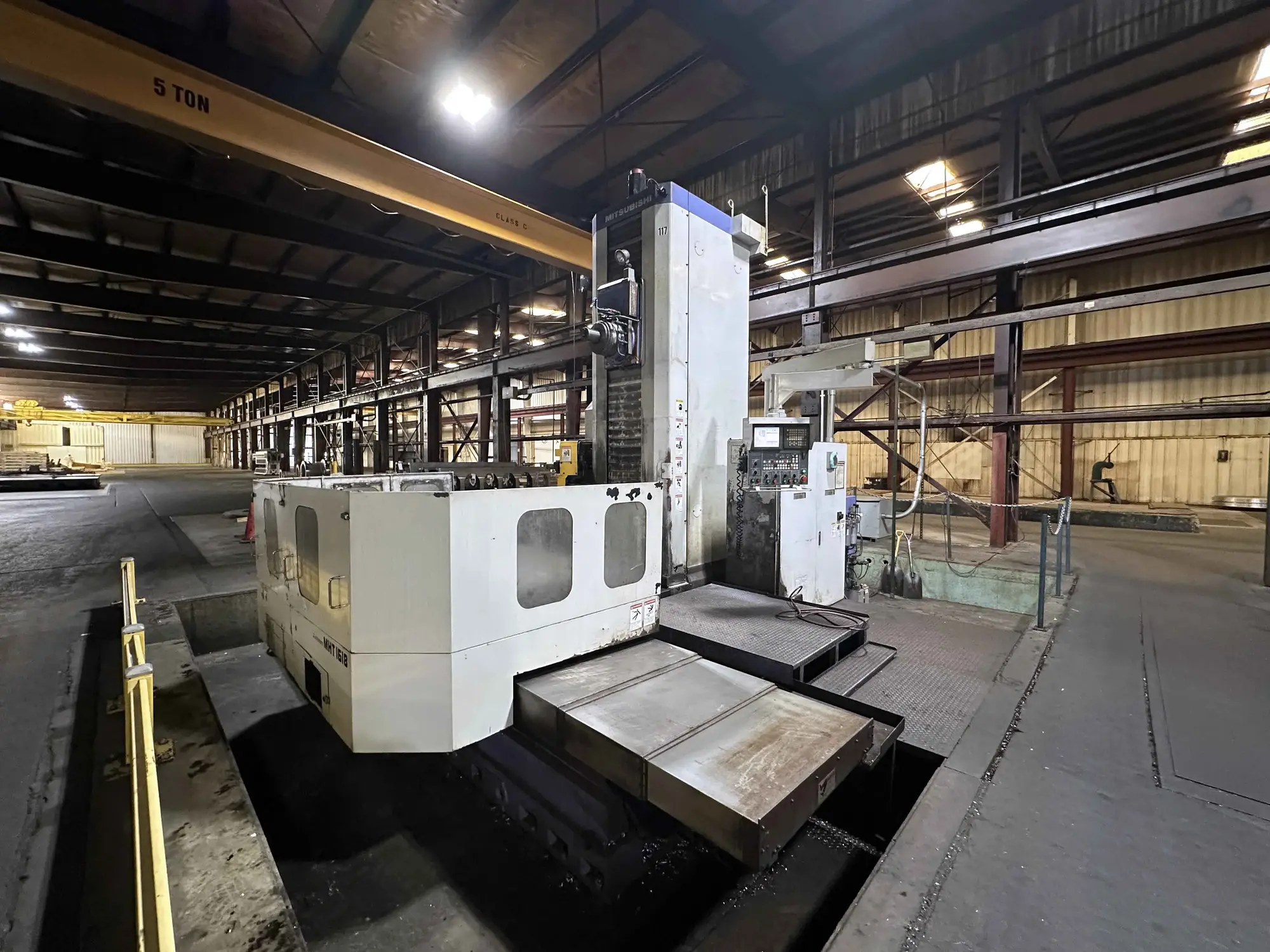

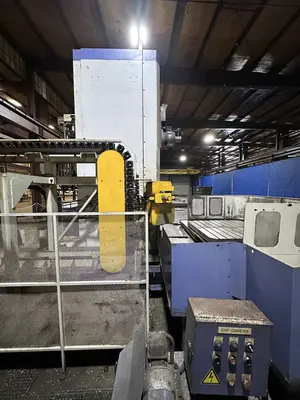

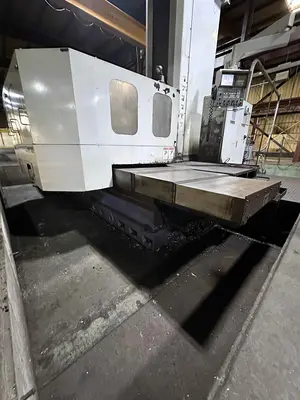

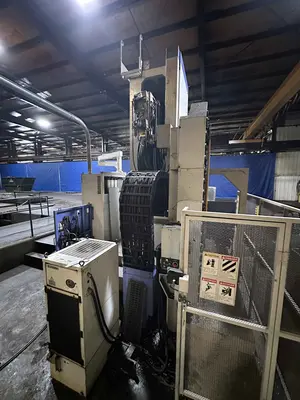

USED 2008 MITSUBISHI MHT 1618

Used Mitsubishi MHT 1618. This pre-owned Horizontal Boring Mill is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Mitsubishi Horizontal Boring Mill we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

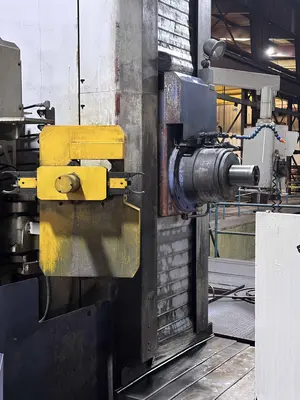

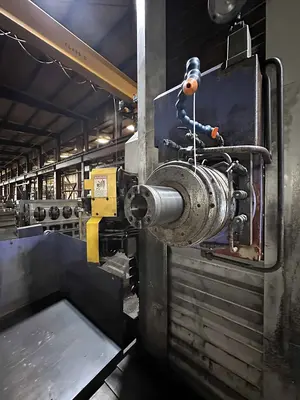

Spindle Diameter: 5.1"
Spindle Speed: 2,500 RPM
Spindle Taper: No. 50
Spindle Motor: 35 HP
Pull Stud: MAS-II
X Axis Travel: 118"
Y Axis Travel: 78.7"
Z Axis Travel: 51.2"
W Axis Travel: 19.7"
B Axis: 0.001 Deg. indexing
X/Y/Z Rapid Traverse: 787 IPM
Rapid Traverse, W-Axis: 236 IPM
Rapid traverse B-axis: 1000 Deg. / min

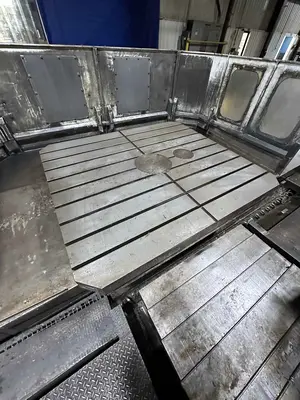

Table Size: 63" x 70.8"
Table Load Capacity: 12,000 Lb.
Max Tool Length: 19.7"
Max Tool Diameter (w/Adj. Tool): 4.3"
Max Tool Diameter / No Adj. Tools: 11.8" Round Tool / 19.7" Boring Tool
Max Tool Weight: 66 Lb.
ATC Capacity: 80 Tools
Power capacity: 70 kVa

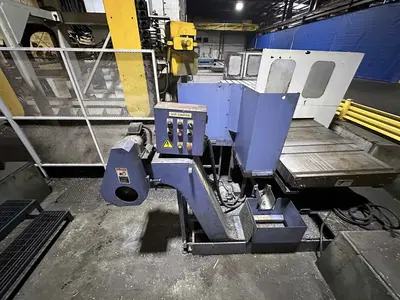

Chip Conveyor
Right Angle Head

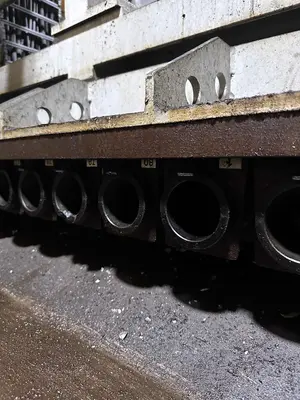

80 Tool ATC
Oil Chiller

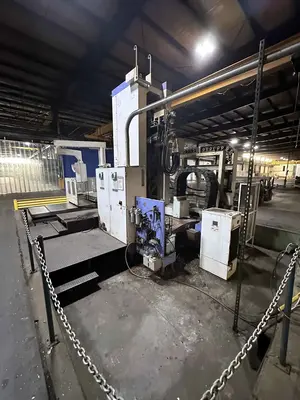

Hydraulic Power Unit
Probing
