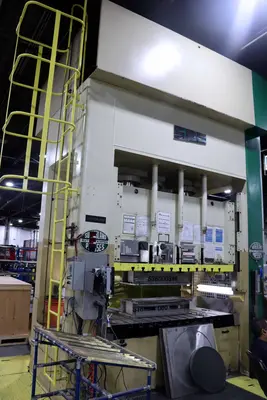

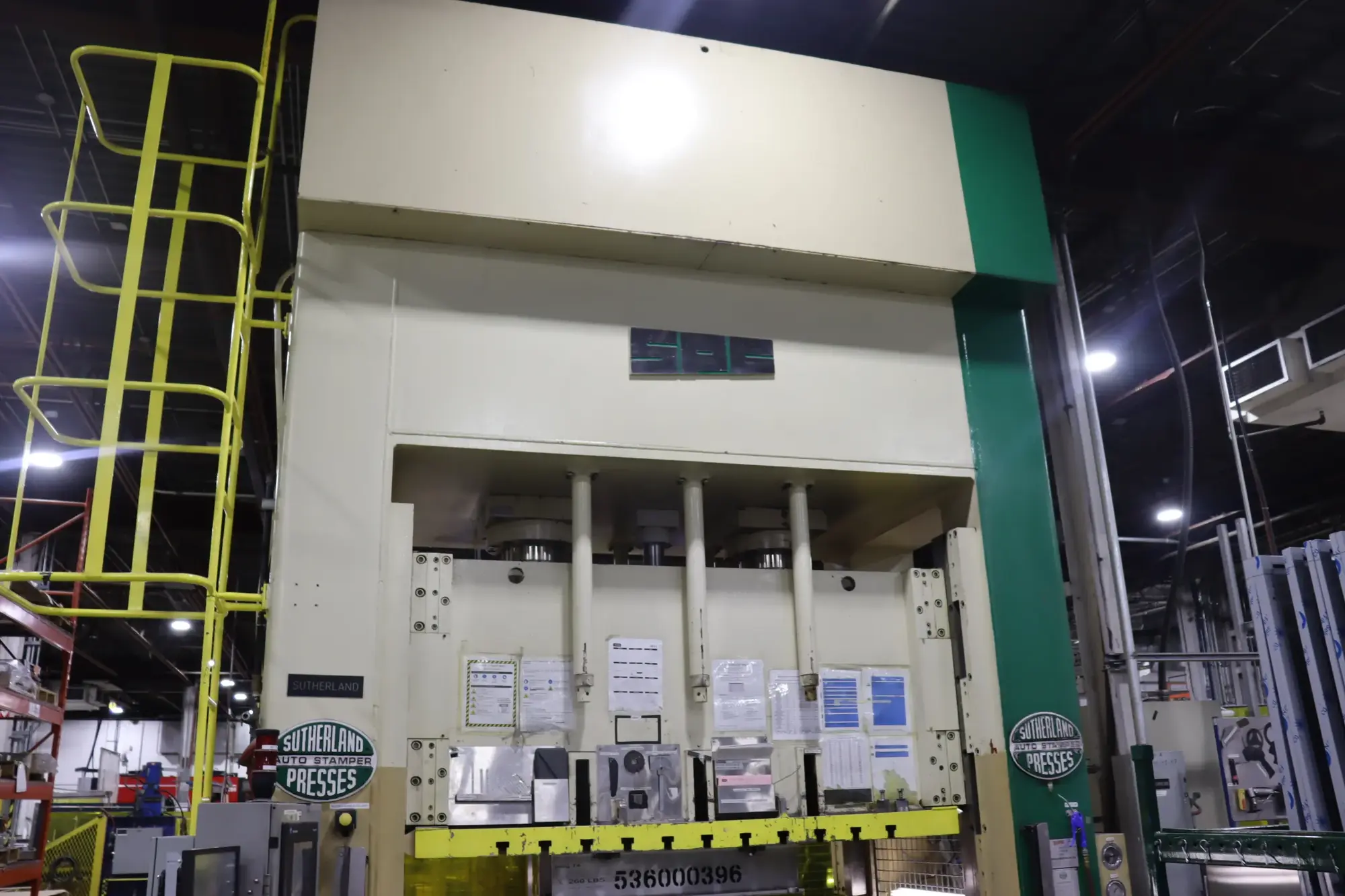

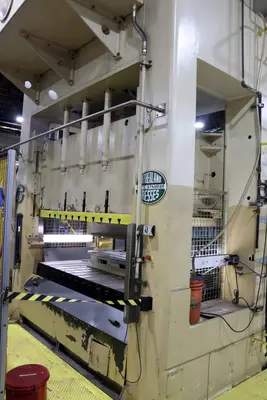

USED 2001 SUTHERLAND SD3-300-84-48-C
Overview
Used Sutherland SD3-300-84-48-C. This pre-owned Hydraulic Press is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Sutherland Hydraulic Press we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs
Forming Tonnage: 300 Tons
Slide Lifting Capacity: 15.5 Tons
Slide Guidance (fully adjustable taper wedge gibs w/ alloy wear strips): 8 point
Daylight: 30"
Closed Height: 12"
Slide Knockouts: 3 Units

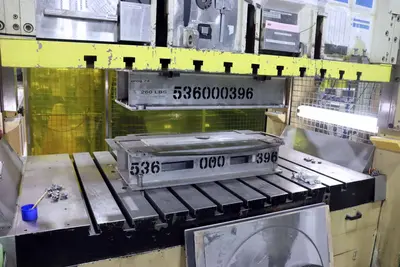

Slide Area: 84" x 48"

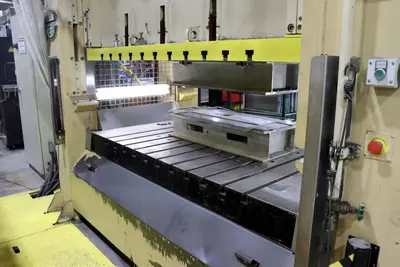

Bolster Area: 84" x 48"
Bolster Thickness: 7"
Side window: 38" x 30"
Floor space required: 180" x 80"
Side Window Opening: 38" x 30"
Overall Height: 205" x/ 17ft
Approx. Weight: 78,300 lbs
Main Slide Speeds
Rapid Approach: 900 I.P.M.
Fast Pressing: (10-50% of full tonnage) 70 I.P.M.
Normal Pressing: (55%-100% of full tonnage) 35 I.P.M.
Rapid Return: 900 I.P.M.
Main Motor Horsepower: 10 HP
Hydraulic Die Cushions
Capacity: (two units 37.5 ton cylinders) 75 Tons
Cylinders: (two units with prefill valves) 5.5" diameter
Stroke Length: 2" - 18" (adjustable)
Pin Pad Area: 48" x 24"
Motor Horse Power: 10 HP
Vane Pump (maker): Denison
Down Speed: 350 I.P.M.
Up Speed: 350 I.P.M.

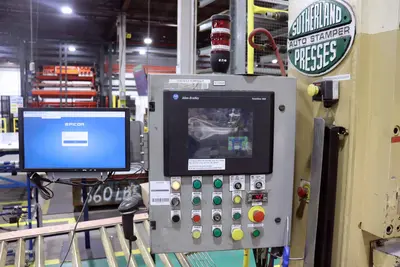

Position Control: Linear Scale (via A-B 1000 color touch screen)
Pressure Control: A-B Touch Screen
Ejector Capacity: 5 Ton
Ejector Cylinder: 3.7" diameter
Electrical Service
Main Power: 440 Volts (dual voltage)
Phase: 3 Phase
Cycle: 60 Cycle
Control Voltage: 110 Volts
Equipped With
Forming Tonnage 300 Tons
Slide Lifting Capacity 15.5 Tons
Slide Guidance (fully adjustable taper wedge gibs w/ alloy wear strips) 8 point
Daylight 30"
Closed Height 12"
Slide Knockouts 3 Units
Slide Area 84" x 48"
Bolster Area 84" x 48"
Bolster Thickness 7"
Side window 38" x 30"
Floor space required 180" x 80"
Side Window Opening 38" x 30"
Overall Height 205" x/ 17ft
Approx. Weight 78,300 lbs
Main Slide Speeds
Rapid Approach 900 I.P.M.
Fast Pressing (10-50% of full tonnage) 70 I.P.M.
Normal Pressing (55%-100% of full tonnage) 35 I.P.M.
Rapid Return 900 I.P.M.
Main Motor Horsepower 10 HP
Hydraulic Die Cushions
Capacity (two units 37.5 ton cylinders) 75 Tons
Cylinders (two units with prefill valves) 5.5" diameter
Stroke Length 2" - 18" (adjustable)
Pin Pad Area 48" x 24"
Motor Horse Power 10 HP
Vane Pump (maker) Denison
Down Speed 350 I.P.M.
Up Speed 350 I.P.M.
Position Control Linear Scale (via A-B 1000 color touch screen)
Pressure Control A-B Touch Screen
Ejector Capacity 5 Ton
Ejector Cylinder 3.7" diameter
Electrical Service
Main Power 440 Volts (dual voltage)
Phase 3 Phase
Cycle 60 Cycle
Control Voltage 110 Volts
