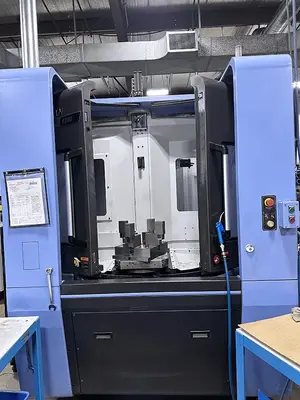

USED 2022 DOOSAN NHP4000

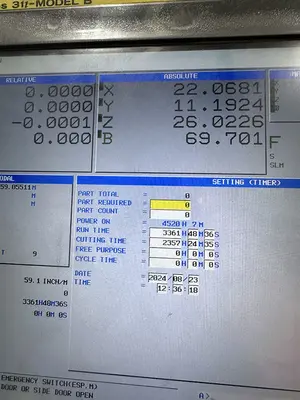

Like-New Condition! Less Than 2400hrs Cutting! 15,000rpm Spindle w/ Through Spindle Coolant!
Used Doosan NHP4000. This pre-owned Horizontal Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Doosan Horizontal Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

X-Axis Travel: 560 mm (22 in)
Y-Axis Travel: 640 mm (25.2 in)
Z-Axis Travel: 660 mm (26 in)
Rapid Traverse (X, Y & Z ): 60 m/min (2362.2 in/min)
Table Size: 400 x 400 mm (15.7 x 15.7 in)
Max. Part Size: 630 x 900 mm (24.8 x 35.4 in)
Max Load: 400 kg (881.8 lbs)
Spindle Speed: 15,000 rpm
spindle power: 30 kW (40.2 Hp)
Spindle Torque: 230 Nm (169.7 ft-lbs)
Max Tool Length: 450 mm (17.7 in)
Tool Shank: BIG PLUS CAT40
AUTOMATIC TOOL CHANGER CAPACITY: 60 (Opt. 40 80 120 171 275)
Max Diameter: 75/170 mm (2.9/6.69 in)
Change Time: 0.9 Seconds

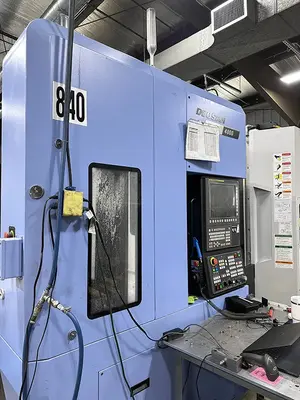

FANUC 31i-B
60 Tool Drum ATC

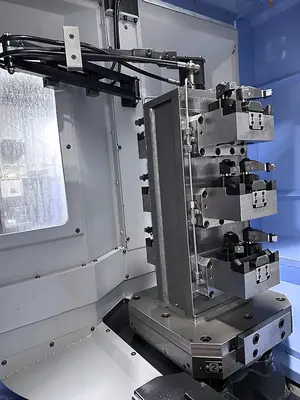

Full B-Axis Table
Renishaw Probe & Tool Setter
CAT 40

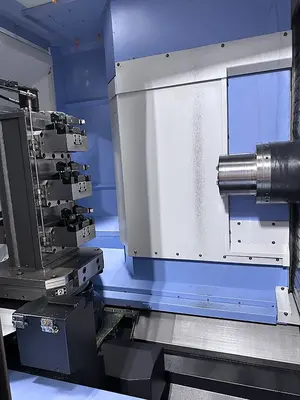

15000 RPM Spindle
Servo Driven Drum Style Magazine
Through Spindle Coolant
