USED 2011 KITAMURA MYCENTER HX1000I

Used Kitamura Mycenter HX1000i. This pre-owned Horizontal Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Kitamura Horizontal Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

Z Axis Travel: 53.94"
Pallet Width: 39.37"
Pallet Length: 39.37"
Pallet Indexing: FULL 4TH
Number of Pallets: 2
Max Workpiece Weight: 6,600 lbs
X Axis Travel: 80.31"
Y Axis Travel: 51.97"
Z Axis Travel: 53.94"
Spindle Speed: 8,000 rpm
Spindle Motor: 40 HP
Spindle Taper: BT50
ATC Tool Number: 150
Rapid Traverse Rate: 1,417 IN/MIN
Cutting Feedrate: 1,417 IN/MIN
Dimensions: 20ft x 35 ft

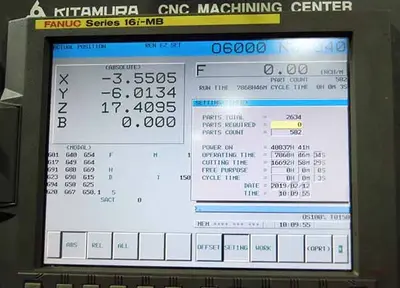

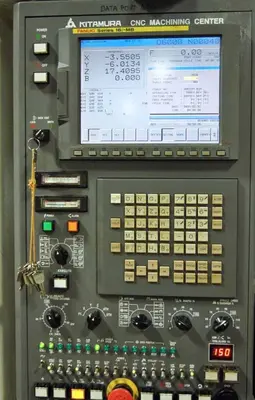

Fanuc 16i-Mb Control
897 Foot-Pounds Of Torque
High-Pressure Through-Spindle Coolant (1000 Psi)

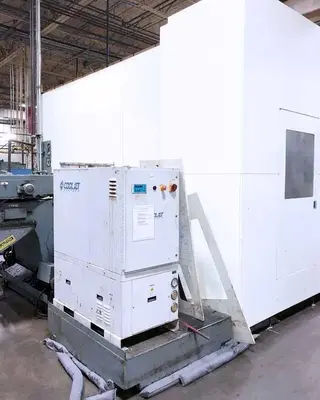

Cooljet High-Pressure Coolant System
Full 4th Axis Pallet Contouring
5th Axis Drive & Wiring
Renishaw Probing System (Omp 400 Spindle Probe)

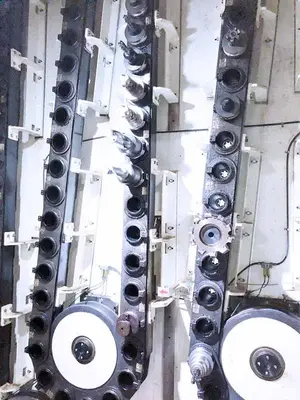

150 Tool Positions

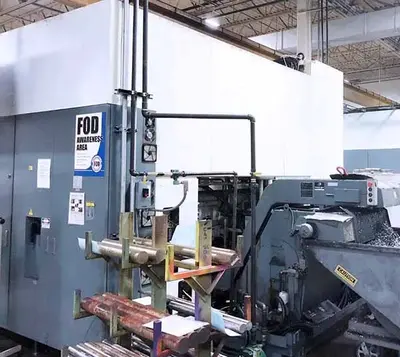

Chip Conveyor
Gearbox (4-Step Gear Driven)
Box Way
Linear Scale Feedback (All Axes)
Twin Ball Screws & Twin Servo Motors
Ai Nano High Precision Contour Control (500 Block Look Ahead)
Tool Retract & Recover
Program Restart
Approx (60) Bt50 Tool Holders

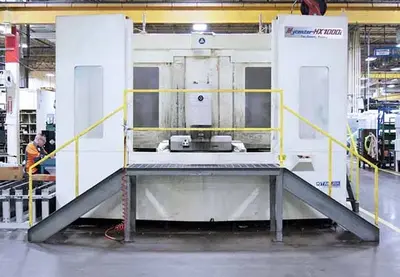

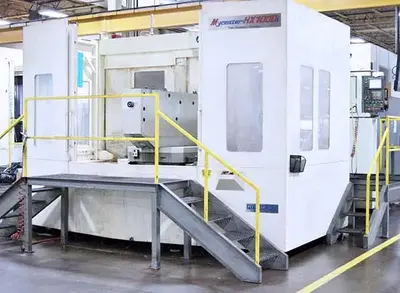

(2) Heavy Duty Fixed Custom Entry Platforms With Handrails
** MACHINE CUT PRIMARILY ALUMINUM & STAINLESS
** REPLACEMENT COST OF SYSTEM
AS EQUIPPED - $1500000
** AVAILABLE FOR IMMEDIATE INSPECTION PURCHASE & REMOVAL
