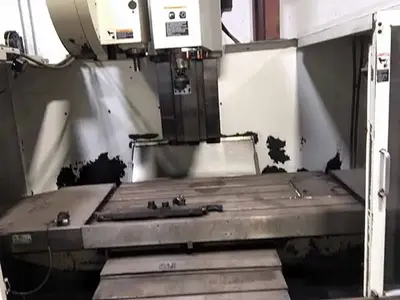

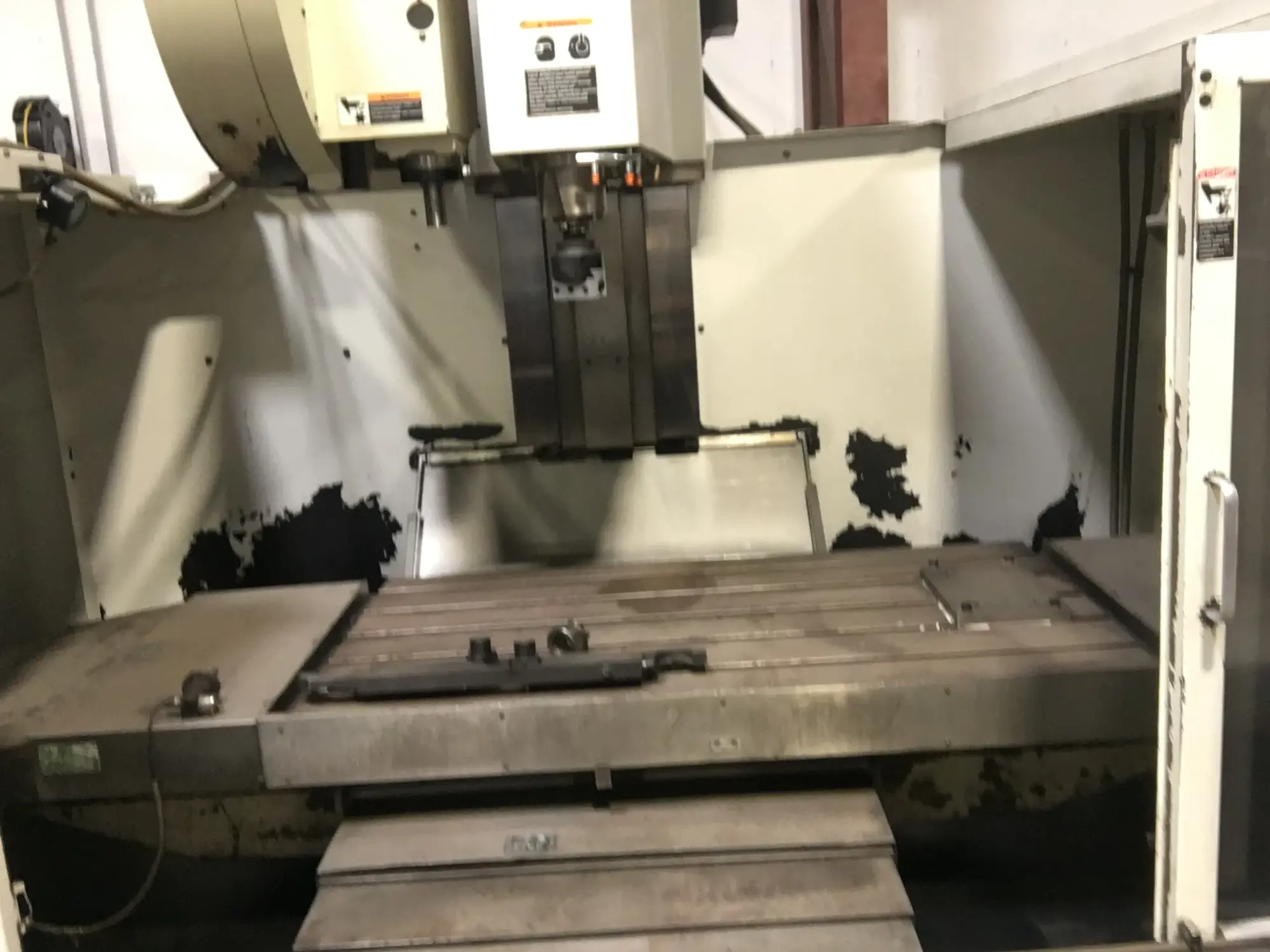

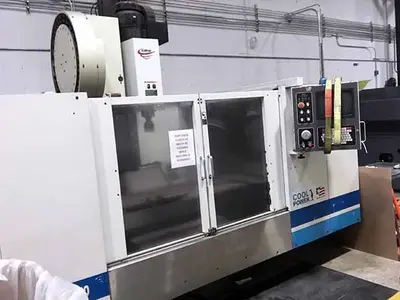

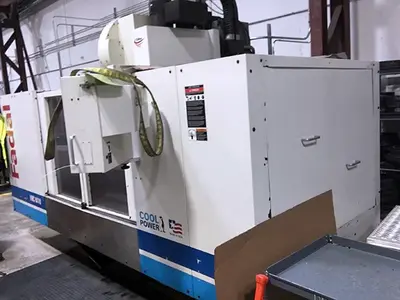

USED 2003 FADAL VMC6030 HT

Used Fadal VMC6030 HT. This pre-owned Vertical Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Fadal Vertical Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

Main Motor: 22.5 HP
X Axis Travel: 60"
Y Axis Travel: 30"
Z Axis Travel: 30"
Rapid Feed Rate (X/Y/Z): 400 ipm
Table Size: 62.5" x 30"
Table Capacity: 4,120 lbs
Floor to Table: 36"
Spindle Nose to Table: 5.5" - 35.5"
Spindle Speed: 10 - 10,000 RPM
Spindle Taper: No. 40
Main Motor: 22.5 HP
Torque: 300 Nm/375 Nm
Electrics: 480 V, 3 Ph, 50/60 Hz
Full Load: 25 Amp
Machine Dimensions: 158" x 103" x 122"
Machine Weight: 17,000 lbs

Side Mount ATC
High Torque Motor
Renishaw Probe
