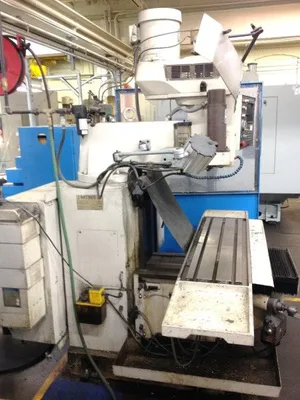

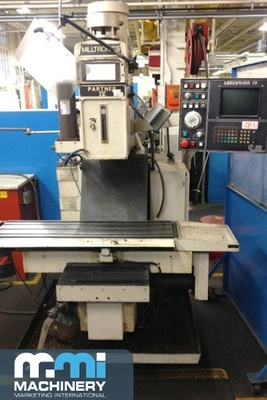

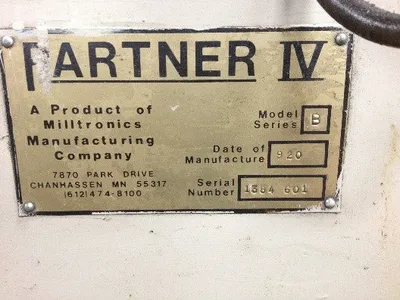

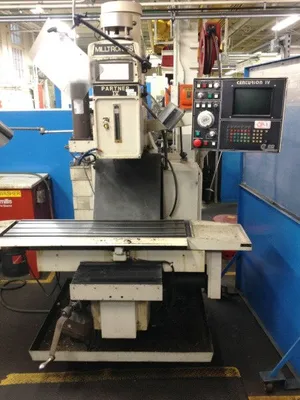

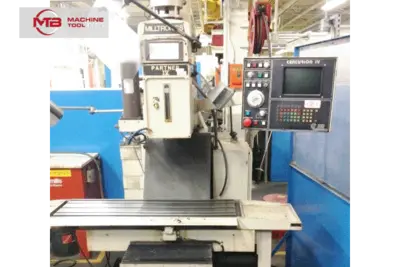

USED 1989 MILLTRONICS PARTNER IV SERIES B

Used Milltronics Partner IV. This pre-owned Vertical Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Milltronics Vertical Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

Table Dimensions: W x L - 13" x 42"
X Axis Table Longitudinal Travel: 32"
Y Axis Saddle Cross Travel: 16"
Table Load Capacity: 800 LBS
Vertical Head Travel (Z-Axis): 5"
Spindle To Table, Maximum: 17"
Spindle To Table, Minimum: 0"
Spindle Taper: #40 CAT
Spindle Speeds: Range 0 to 4000 RPM
Power Rapid Traverse Rate (X/Y): 300 IPM
Feedrate Range: 1 to 200 IPM

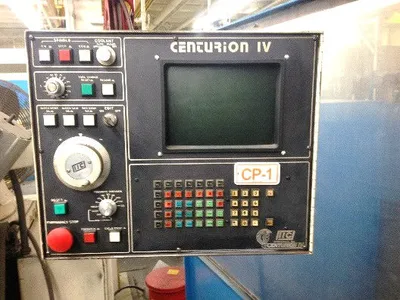

Centurion IV CNC Control
Auto Lube System
