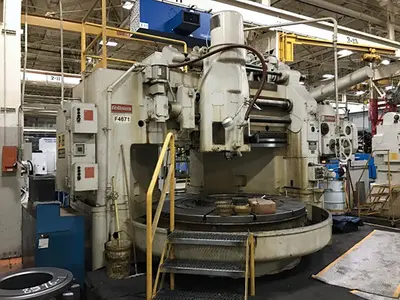

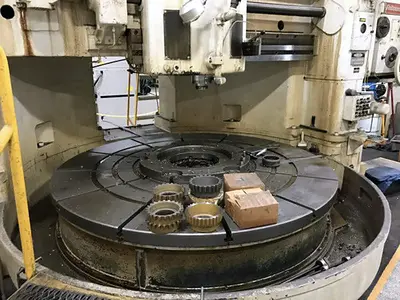

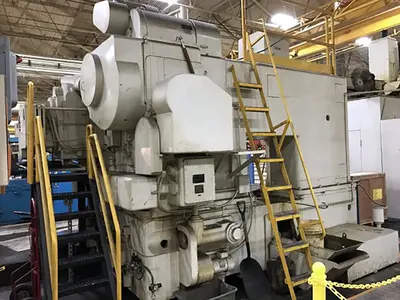

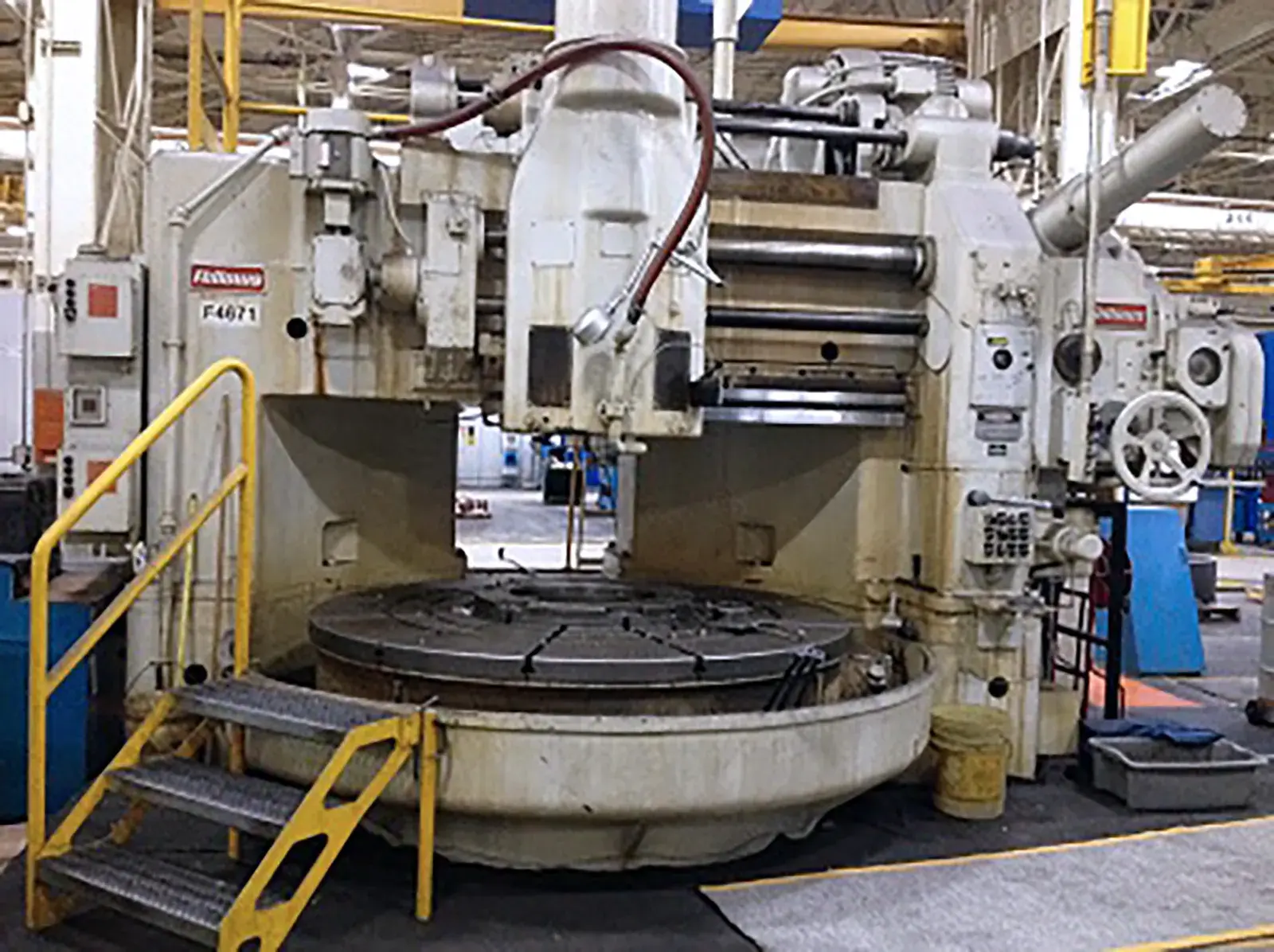

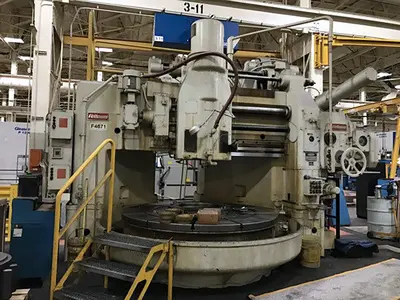

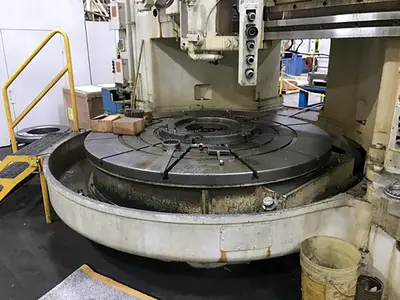

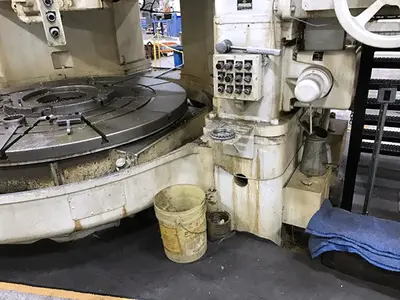

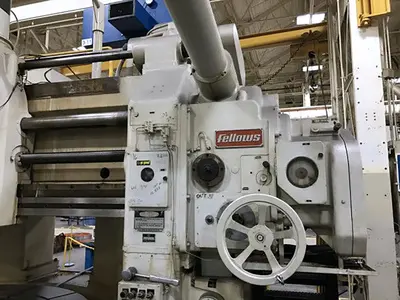

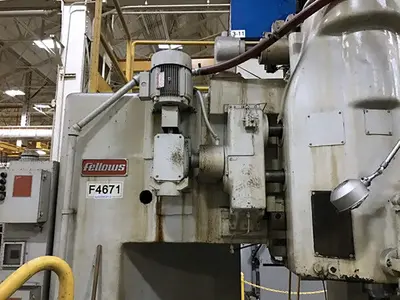

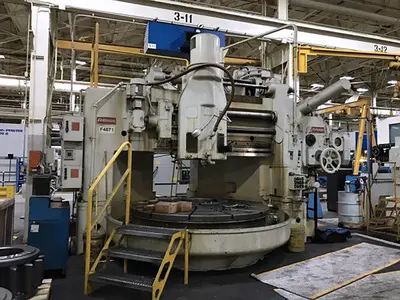

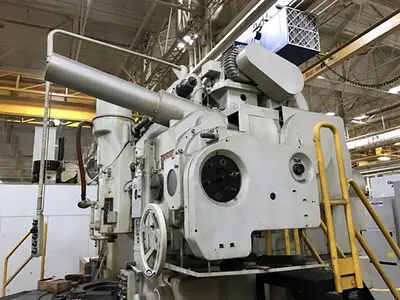

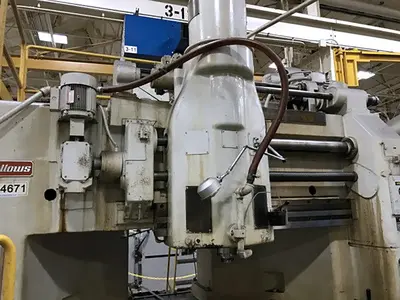

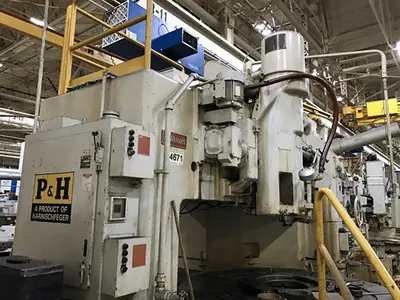

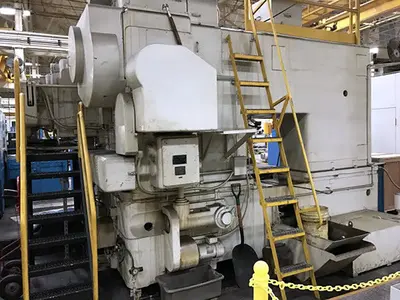

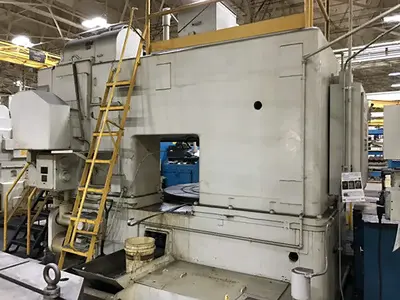

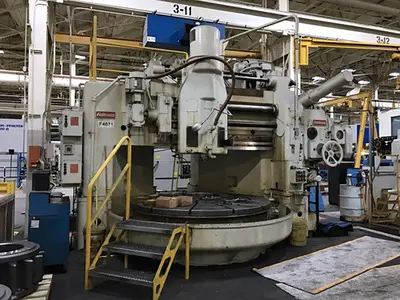

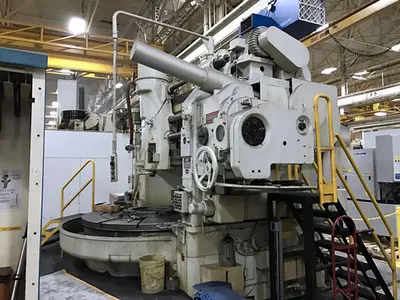

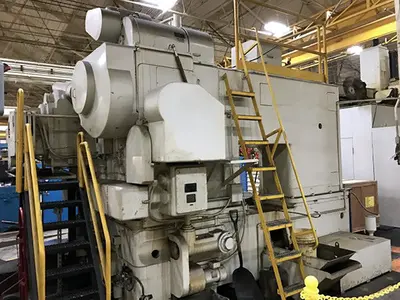

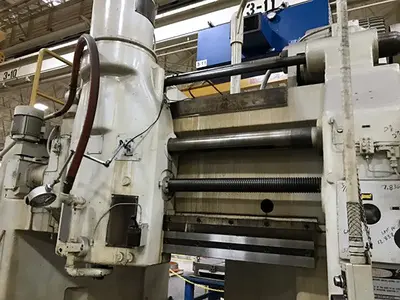

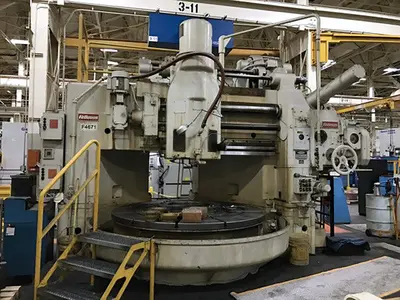

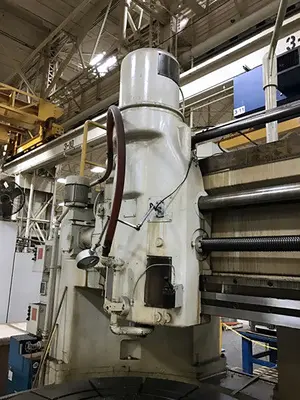

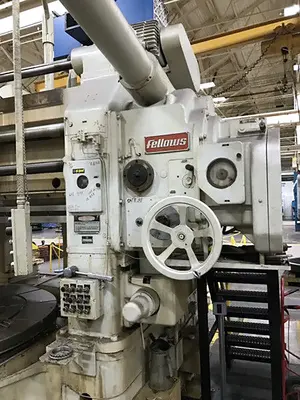

USED 1989 FELLOWS 70-15
Overview
Used Fellows 70-15. This pre-owned Gear Shaper is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Fellows Gear Shaper we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs

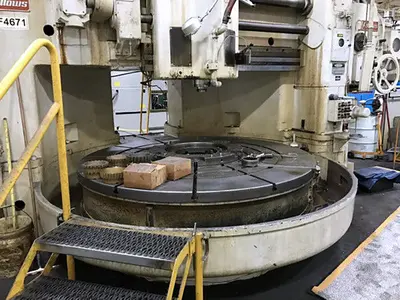

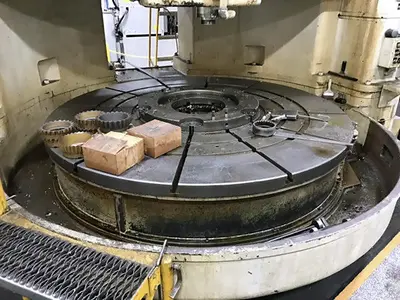

Table Diameter: 84"
Maximum Table Weight: 30,000 lbs.
Maximum Pitch Diameter: 70" Internal
Max dp Spur: 3
Maximum Face-Width (Nominal): 15
Maximum Diameter External Gear Cut (Nominal): 70"
Maximum Diameter Internal Gear Cut (Nominal): 88"
Maximum Diameter Workpiece Accommodated: 104"
Max Permissible Weight Of Workpiece & Fixture: 36,000 lbs.
Work spindle Centerline To Centerline Of Cutter Spindle: 35"
Fixture Clearance Height W/Cutter Spindle In Upper Position: 28"
Maximum Diametric Pitch (Full Length Teeth): 2 Dp
Maximum Diametric Pitch (Stub Teeth): .75 Dp
Maximum Diameter Pitch (30°P.A. Splines): 2-5/5 Dp
Diameter Of Cutter Spindle: 6.25"
Maximum Stroke Length: 19.12"
Stroking Speeds (Infinitely Variable): 5 To 122 S.P.M.
Maximum Infeed Of Cutter Ram: .0020"/Min
Minimum Infeed Of Cutter Ram: .0005"/Min.
Max Rotary Feed Per Stroke (Per 1" Of Cutter Diameter): .0068"/Min.
Min Rotary Feed Per Stroke (Per 1" Of Cutter Diameter): .0006"/Min.
Equipped With
Table Diameter 84"
Maximum Table Weight 30,000 lbs.
Maximum Pitch Diameter 70" Internal
Max dp Spur 3
Maximum Face-Width (Nominal) 15
Maximum Diameter External Gear Cut (Nominal) 70"
Maximum Diameter Internal Gear Cut (Nominal) 88"
Maximum Diameter Workpiece Accommodated 104"
Max Permissible Weight Of Workpiece & Fixture 36,000 lbs.
Work spindle Centerline To Centerline Of Cutter Spindle 35"
Fixture Clearance Height W/Cutter Spindle In Upper Position 28"
Maximum Diametric Pitch (Full Length Teeth) 2 Dp
Maximum Diametric Pitch (Stub Teeth) .75 Dp
Maximum Diameter Pitch (30°P.A. Splines) 2-5/5 Dp
Diameter Of Cutter Spindle 6.25"
Maximum Stroke Length 19.12"
Stroking Speeds (Infinitely Variable) 5 To 122 S.P.M.
Maximum Infeed Of Cutter Ram .0020"/Min
Minimum Infeed Of Cutter Ram .0005"/Min.
Max Rotary Feed Per Stroke (Per 1" Of Cutter Diameter) .0068"/Min.
Min Rotary Feed Per Stroke (Per 1" Of Cutter Diameter) .0006"/Min.
