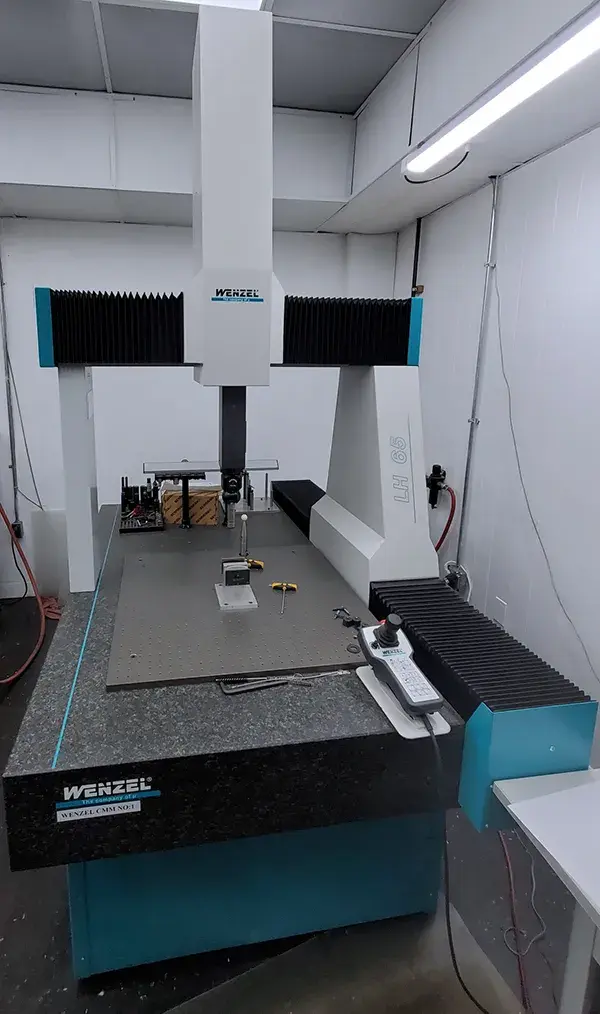

USED 2013 WENZEL LH65
Overview
Used Wenzel LH65. This pre-owned Coordinate Measuring Machine is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Wenzel Coordinate Measuring Machine we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs
X-axis: 25.6" (Measurement Range)
Y-Axis: 39.4"(Measurement Range)
Z-axis: 19.7"(Measurement Range)
Electric: Single-phase AC, 1 P+N+PE, 115/230 V ± 10 %, 50/60 Hz, max. 1000 VA, ace. to EN 60204/1
Compressed air supply: Supply pressure 6-10 bar, pre-filtered, quality according to ISO 8573-1 : Class 4 or better
Air Consumption: Min. 70 NI/min, higher consumption possible, depending on application (pneumatic dampers)
Equipped With
Wpc 2040 Quartis Control System For Touch Trigger Probes
Wpc 2040/3 CNC Controller

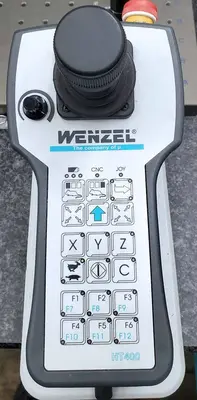

Ht400 Handbox
Renishaw Ph10c-2 Controller
Renishaw Pi 200 Probe Interface
Premium Pc System For Cmm Applications
Metrosoft Quartis Dcc Measuring Software
Combination Scanning And Touch Trigger Kit
Stylus Kit And Reference Sphere;

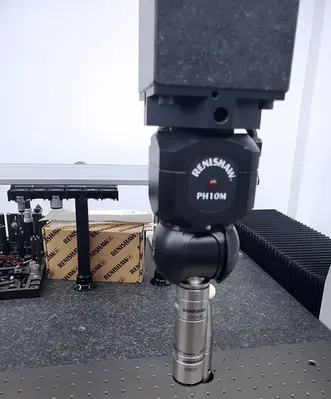

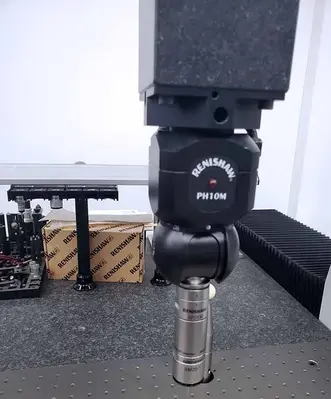

Probe Head Ph10mplus
Probe Sp25m Scanning Kit 1
Probe Sp25m Sm25-2 Scanning Module Kit
Probe Sp25m Sm25-3 Scanning Kit
Tm25-20 Module
1 Auto Probe Change Acr3 For Ph10m
(4) Port Probe Changing Rack Mounted On Modular Rack System (Mr S600)
1 Mrs 400mm Long Kit
