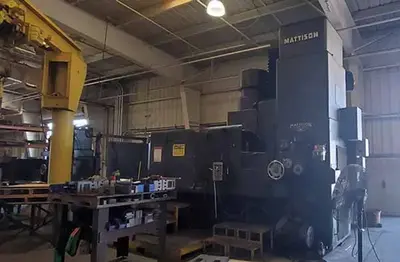

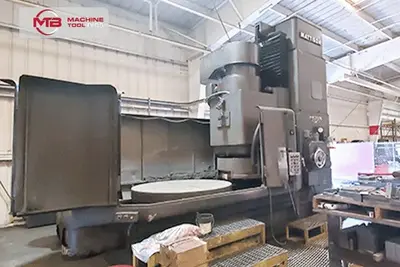

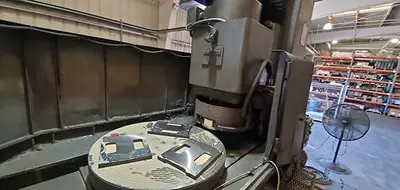

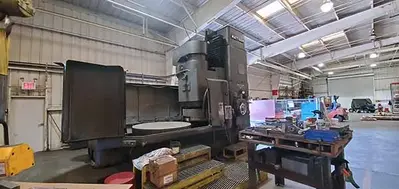

Used Mattison 60. This pre-owned Vertical Grinder is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Mattison Vertical Grinder we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Chuck Diameter: 60"
Chuck R.P.M Infinitely Variable: thru 28
Chuck Actual Swing: 66"
Greatest Swing Inside Water Pan: 73 1/2"
Grinding Wheel Diameter: 32"
GRINDING WHEEL ASSEMBLY Vertical Movement : 30"
Wheel Head Feed Rate: Automatic 0.005" thru 165" per/min.
Wheel Head Feed Rate: Pre-determined 0.001" thru 240" per/min.
Motor Drives: Stone 125 hp (91.94kw) 230/460 volts
Chuck Rotation Hydraulic Drive: 5 hp (3.7kw) 230/460 volts
Carriage Head Vertical Feed Up/Down: 3 hp (2.2kw) 230/460 volts
Motor Cooling Fan: 3/4 hp (0.55kw) 230/460 volts
Coolant Pump: 1 1/2hp (1.103kw) 230/460 volts
60" Chuck W/ 6" chuck life left
36" Stone Cutting Head
Head Quick Tilt
Motor Percent Load Meter
Wheel Dresser (Manual)
Neutrofier Remote Control
Coolant Pump & Tank
Point of Operation Enclosure Door
COMPLETE FACTORY SAFETY GUARDS
Master Start/Stop Buttons
Spindle Start/Stop Buttons
Table Start/Stop Buttons
Down Head Feed Start/Stop Buttons
Head Up/Down Buttons
Carriage In/Out Buttons
Coolant Off/On Switch
Head Flat Tilt Switch
Variable Feed Rate Dial
Table Traverse handwheel
