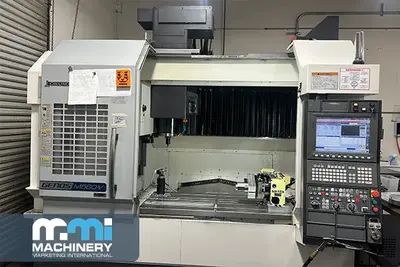

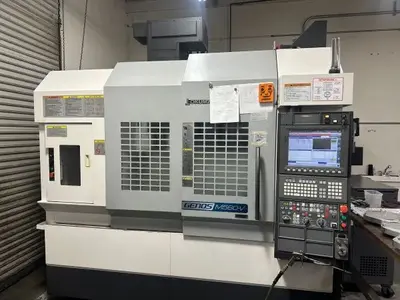

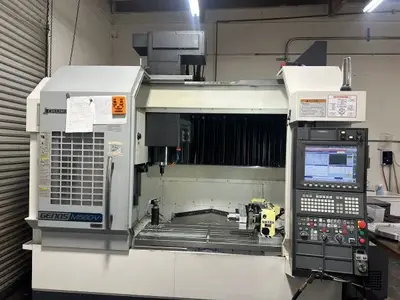

USED 2019 OKUMA GENOS M560-V

Used Okuma Genos M560-V. This pre-owned Vertical Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Okuma Vertical Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

X-Axis Travel: 41.34"
Y-Axis Travel: 22.05"
2nd Z-Axis Travel: 18.11"
Table Size: 51.18" X 22.05"
Max Table Load: 2,000 LBS
Spindle Nose to Table: 7.8" X 33.8"
Spindle Center to Column: 31.5"
Spindle Speed: 15,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CT40 BigPlus
ATC Capacity: 32 Tools
Max Tool Length/Diameter: 11.8" / 4.9"
Dimensions: 122" X 99" X 108"
Weight: 16,600 LBS

Nikken 4th axis rotary included
Coolant Thru Spindle
MP 1000 PSI Coolant Thru pumps
Spindle Chiller
Chip conveyor
Remote MPG
WIRED FOR 4TH AXIS
PROBE PACKAGE
Tool Presetter

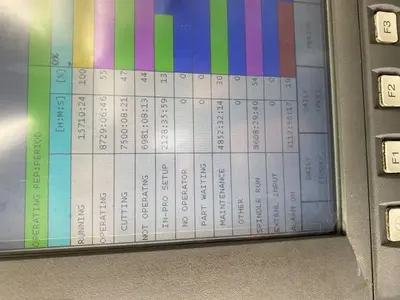

Under 8000 cutting hours
