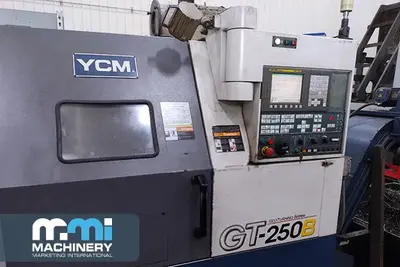

USED 2005 YCM GT-250B

3.46" Spindle Bore| Tailstock| 10" Chuck| Under Power for Inspection
Used YCM GT-250B. This pre-owned CNC Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this YCM CNC Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

Spindle Horsepower: 20 HP
Spindle Nose: A2-8 ASA
Spindle through Hole: 3.46"
Bar Capacity: 2.5"
SPINDLE SPEED RANGE: 45 - 3500 RPM
X Axis Travel: 6.89" / +0.79"
Z Axis Travel: 20.2"
Swing over Bed: 21.6"
Swing Over Carriage: 16.5"
Max Turning Diameter: 13.7"
DISTANCE BETWEEN CENTERS: 27.1"
Max Turning Length: 20.2"
X Axis Rapid: 787 IPM
Z Axis Rapid: 945 IPM
Number of Tools: 10
Chuck Diameter: 10"
X Axis Ballscrew: 1.23" / 32mm
Rapid Traverse (X): 787 IPM
Motor HP: 4 HP
Quill Diameter: 3.93"
Max Quill Travel: 3.93"
Quill taper: MT #5
Machine Weight: 13,228 LBS
Power Consumption: 30kVA
Shipping Dimensions : 140" x 87" x 89"

Fast 10 Position Servo Turret
Non-stop Bi-directional Tool Indexing Servo Turret
Tailstock w/ Programmable Quill
Lift Up style Chip Conveyor
8.4" LCD Color Monitor
10" hydraulic chucking system
