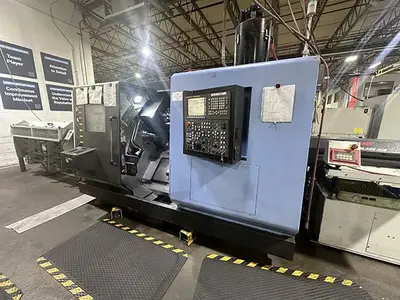

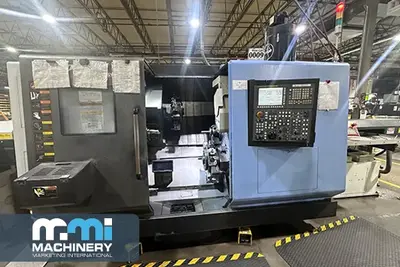

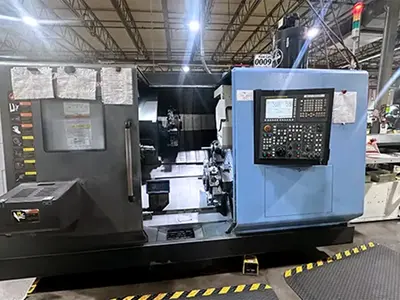

USED 2012 DOOSAN PUMA TT1800SY

Used Doosan TT1800SY. This pre-owned CNC Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Doosan CNC Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

Turret Configuration: 24 + 24 (48 Total Stations) (Upper + Lower)
C-Axis Indexing: 360° in .001° increments
Sub Spindle Bearing Diameter: 3.0"
Sub Spindle Nose: A2 #6
Sub Spindle Torque: 153.5 Ft-Lbs
Sub Spindle Motor: 29.5 HP / 20.1 HP (30 min / Cont)
Sub Spindle Speed: 5000 RPM
Maximum Rotary Tool Speed: 5,000 RPM
Turret Indexing Time: 0.15 Seconds
Max. tool size: 1.3"
OD tool size: 0.8" x 0.8"
Chuck Size: 8"
Max Swing: 9.1"
Max Turning Length: 9.1"
Max Turning Diameter: 9.1"
Rapid Rate X Axis: 787 IPM
Rapid Rate Z Axis: 944 IPM
Z Axis Travel: 31.5"
X Axis Travel: 6.5"
Spindle Motor: 30 HP
Spindle Speed: 5,000 PRM
Bar Capacity: 2.625"

LNS Quick Six S2 Barfeeder
Parts Catcher
LNS Blaze Air Unloader
Tool Presetter
Chip Blaster High Pressure Coolant System
LNS Turbo HB Chip Conveyor
