USED 2020 MAZAK VARIAXIS I-500
Overview
Used Mazak Variaxis i-500. This pre-owned 5 Axis Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Mazak 5 Axis Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs

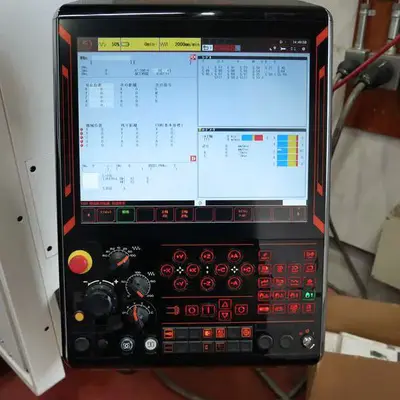

Mazatrol Smooth X Control
12000 Spindle Speed
Renishaw NC4 Tool Length Measuring laser type

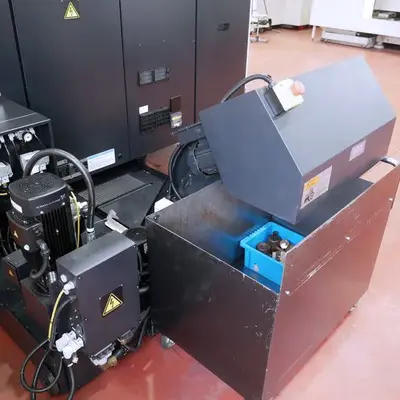

Wireless Renishaw Reeceiver Chip Conveyor - Back out / Hinge Type
High Pressure Coolant system (300 PSI)
Coolant Thru Spindle
Under 12000 Cutting Hours
X-Axis Travel: 13.78"
Y-Axis Travel: 21.65"
Z-Axis Travel: 20.08"
A-Axis Travel: -120 deg +30 deg
C-Axis Travel: 360 deg
Rapid Traverse Rate X: 2362 IPM
Rapid Traverse Rate Y: 2362 IPM
Rapid Traverse Rate Z: 2205 IPM
Rapid Traverse Rate A: 18000 deg/min
Rapid Traverse Rate C: 18000 deg/min
Max. Spindle Speed: 12,000 rpm
Spindle Motor: 30 / 20 HP (40% ED / Cont. rating)
Spindle Taper: 40 Taper
Distance from Table Top to Spindle Nose: 1.97" to 22.05"
Tool Change Time (Chip to Chip): 4.5 sec

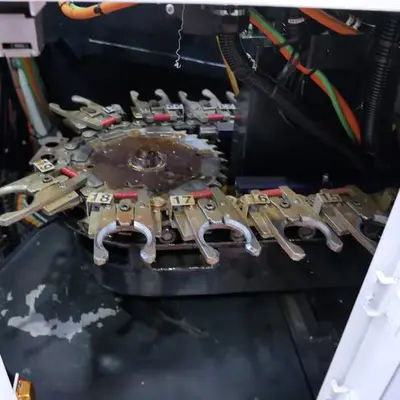

Tool Storage Capacity: 30 Tools
Tool Shank: 40 taper
Indexing Time: 0.55 sec / 90 deg (A-Axis)
Min. Indexing Increment (A-Axis & C-Axis): 0.0001 deg
SIMULTANEOUSLY CONTROLLED AXIS: 5
Table Size: 19.69" x 15.75"
Table Load Capacity: 661 lbs
Max Workpiece Size: 19.69" dia X 13.78" H
Machine Size: 94.49" X 120.47" X 117.13"
Equipped With
Mazatrol Smooth X Control
12000 Spindle Speed
Renishaw NC4 Tool Length Measuring laser type
Wireless Renishaw Reeceiver Chip Conveyor - Back out / Hinge Type
High Pressure Coolant system (300 PSI)
Coolant Thru Spindle
Under 12000 Cutting Hours
