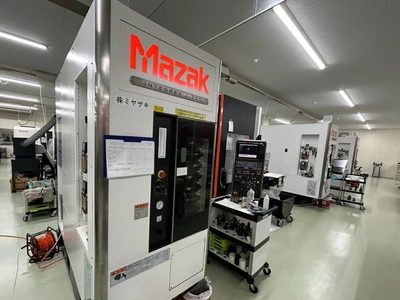

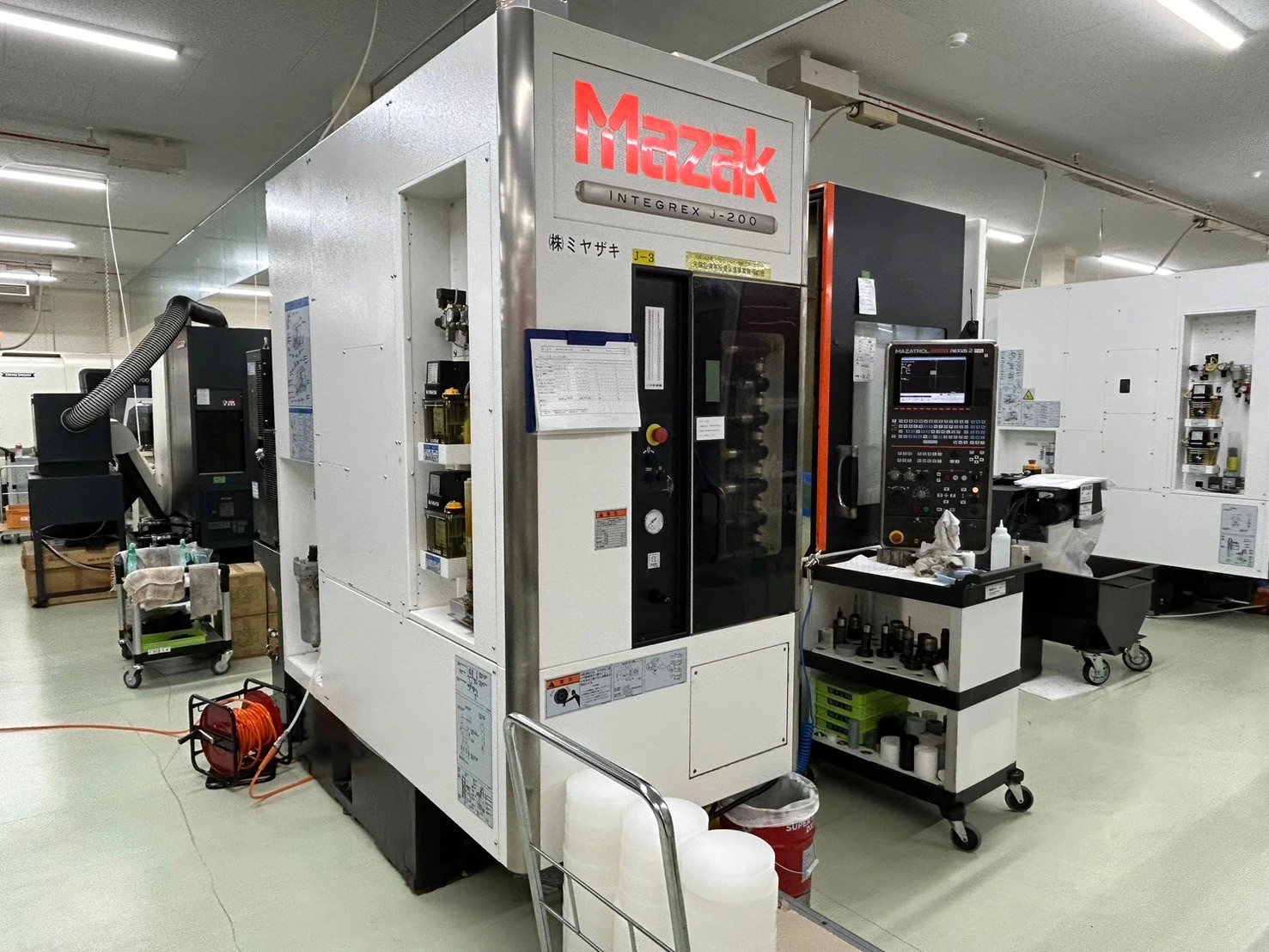

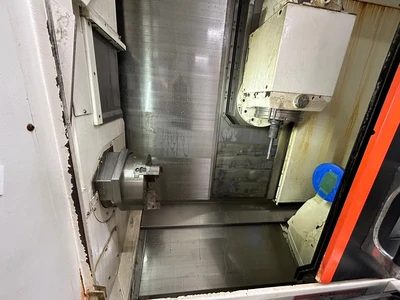

USED 2013 MAZAK INTEGREX J-200

The 2013 Mazak Integrex J-200 is a versatile multi-tasking CNC machine designed for single-setup machining of complex, medium-sized parts. Combining turning, milling, drilling, and tapping in one platform, it reduces cycle times while improving precision and efficiency. Ideal for aerospace, automotive, and medical manufacturing, it handles complex geometries and high-accuracy components with reliable Mazak performance.

Maximum Swing : 20.87"
Max Turning Diameter: 19.69"
Maximum Cutting Length: 19.69"
X-Axis Travel: 17.72"
Z-Axis Travel: 21.65"
Y-Axis Travel: 7.87"
C-Axis Indexing: 0.001 deg
Main Spindle Chuck Size : 10"
Main Spindle Bore Diameter: 3"
Main Spindle Maximum Bar Work: 2.5"
Main Spindle Speed: 5,000 RPM
Main Spindle Horsepower: 15HP
ATC Magazine Capacity: 36

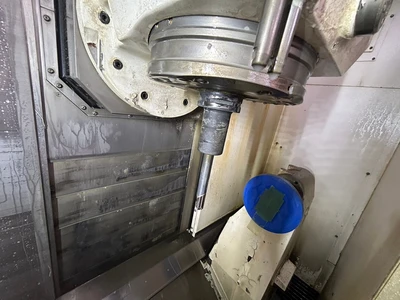

B Axis Rotary Tool Spindle Speed: 12000 rpm
B-Axis Rotary Tool Spindle Horsepower: 10 hp
B-Axis Indexing: 1 degree
Parts Catcher: Yes
Chip Conveyor: Yes
Milling Spindle Synchronous Tapping: Yes
Tool Eye Automatic Front Spindle: Yes
Coolant Thru Milling Head: Yes
Multi Tap Transformer: Yes

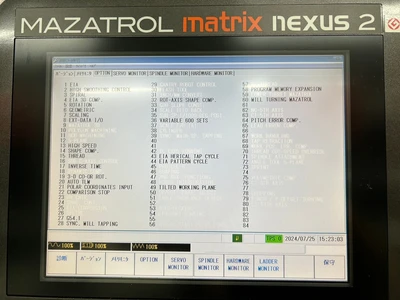

Control: CNC (MAZATROL MATRIX)
Weight: 13,530 LBS

Hydraulic Chucks
Coolant Thru Milling Spindle
Coolant System
Intelligent Thermal Shield
NC Tail Stock
CAPTO ATC 36

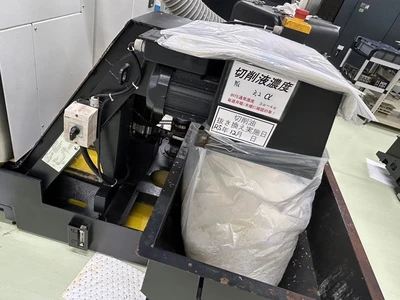

Mist Collector

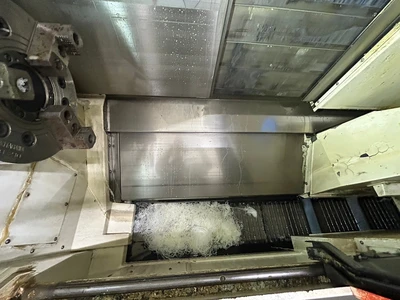

Chip Conveyor

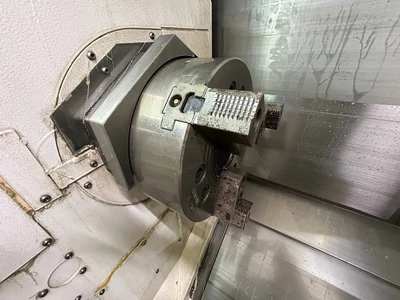

Kitagawa Chuck B210A615A (Maximum rpm 4200)
Touch Probe

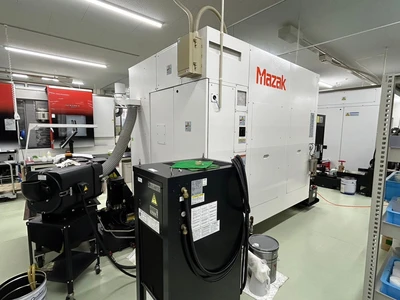

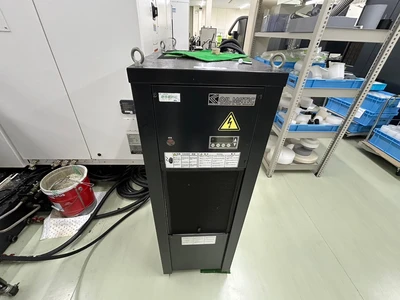

Spindle Chiller
Chip Conveyor
Milling Spindle Synchronous Tapping
Coolant Thru Milling Head
Multi Tap Transformer
