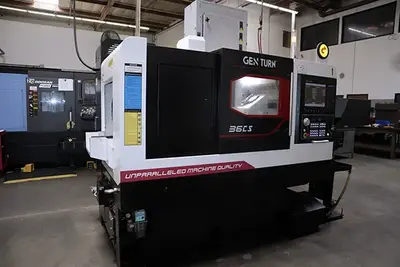

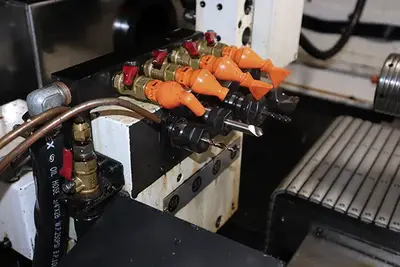

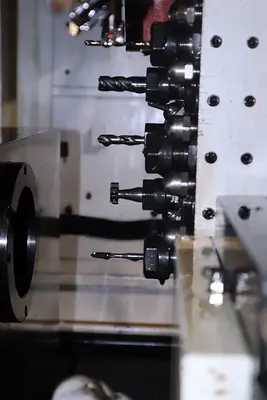

USED 2021 GEN TURN 36CS
Overview
Specs
Max RPM: 6,000 RPM
Spindle Motor: 10-HP
Drawtube Bore: 1.456
Maximum Barstock Diameter: 1.25/ Standard 1.375 with adapter
X-Axis Travel: 7.28
Y-Axis Travel: 19.29
Z-Axis Travel: 6.50
Rapid Travel Speed: X, Y, Z 1,181IPM
OD Turning Tool Positions: 6OD Tools
ID Turning Tool Positions: 5ID Tools
ID Turning Tool Bore Size: 25mm
Spindle Center Height: 40

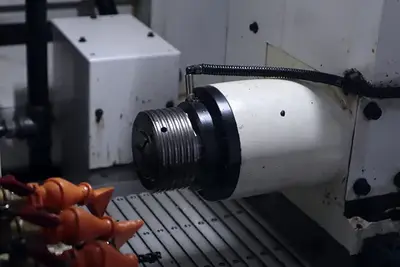

Sub Spindle: 6,000RPM
Sub Spindle Motor: 5-HP
Machine length: 101 * ( * +36 for chip conveyor)
Machine Depth: 68
Machine height: 80
Machine Weight: 8,000lbs
Coolant Pump: 50psi 3/4-HP
Coolant Tank Capacity: 63-galloncoolant tank, with coolant flow confirmation sensor
Power Requirement: 220vac5%, 63-amps, 3-phase, 60Hz
Air Requirements: 85-PSIat 10-CFM
Equipped With
Low Hours

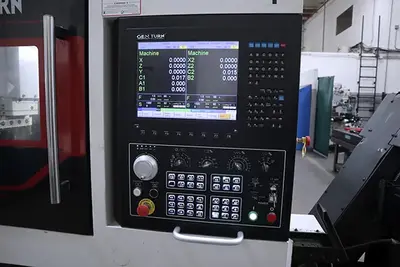

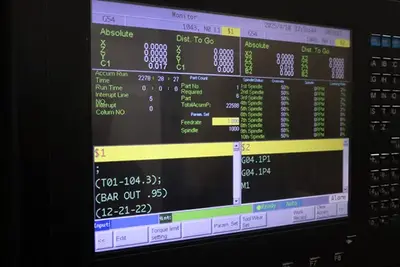

Mitsubishi M80 Control
LNS Chip Conveyor

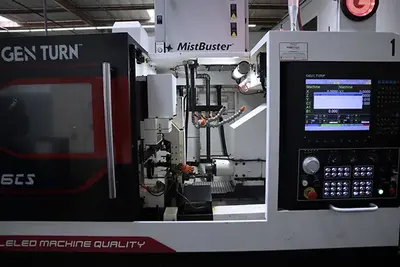

Mist Collector
Fire Suppression
Y Axis
Dual C Axis
Parts Catcher
Parts Conveyor
Parts Ejector
Air Blast
Chip Conveyor
