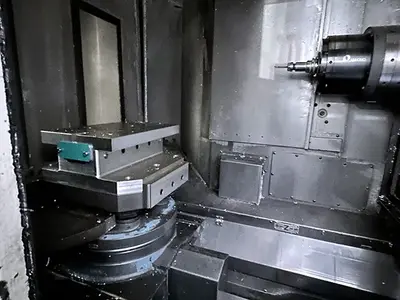

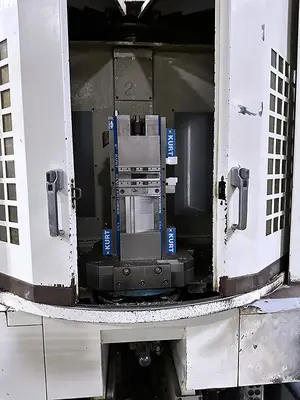

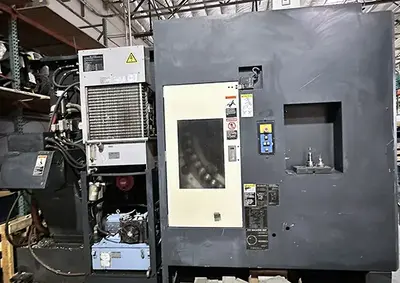

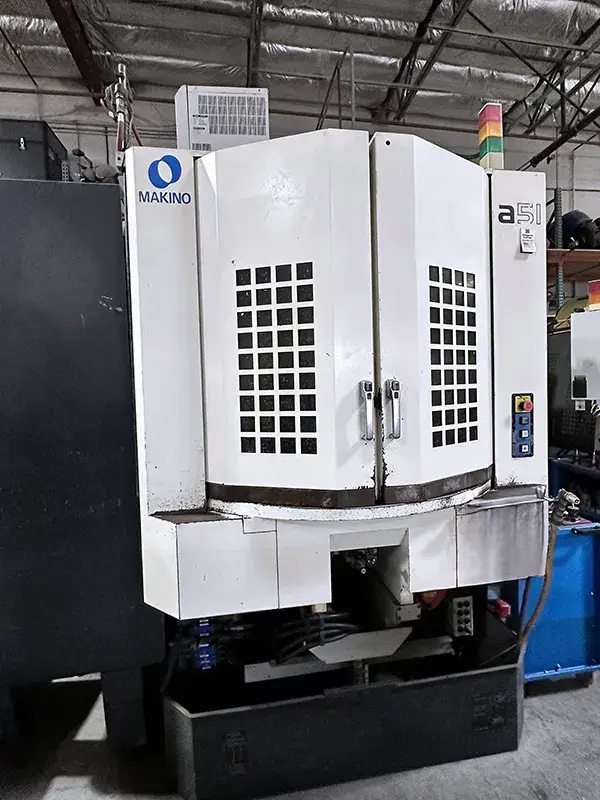

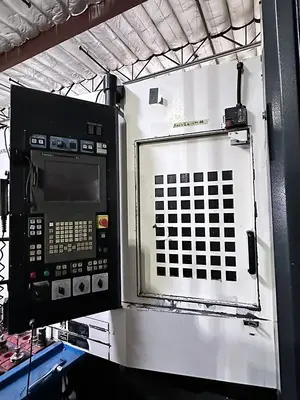

USED 2006 MAKINO A51
Overview
No description available
Specs
X Axis Travel: 22.0"
Y - Axis Travel (inches): 19.7"
Z - Axis Travel (inches): 25.2"
Spindle RPM: 12,000 rpm
Spindle Taper: CAT 40
Rapid Traverse: 2,362 ipm
Cutting Feedrate: 1,968ipm
Maximum Workpiece: ø24.8" x 35.4"
Maximum Payload: 880 lbs
ATC Capacity: 60 tools
Tool to Tool: 0.9 secs
Chip to chip: 2.2 secs
Maximum Tool Length: 16.9"
Maximum Tool Diameter: 6.7"
Maximum Tool Weight: 26.4 lbs
Equipped With
Dual 15.7" Pallets
Spindle Chiller
Chip Auger
New Spindle & Motor Installed 2020
