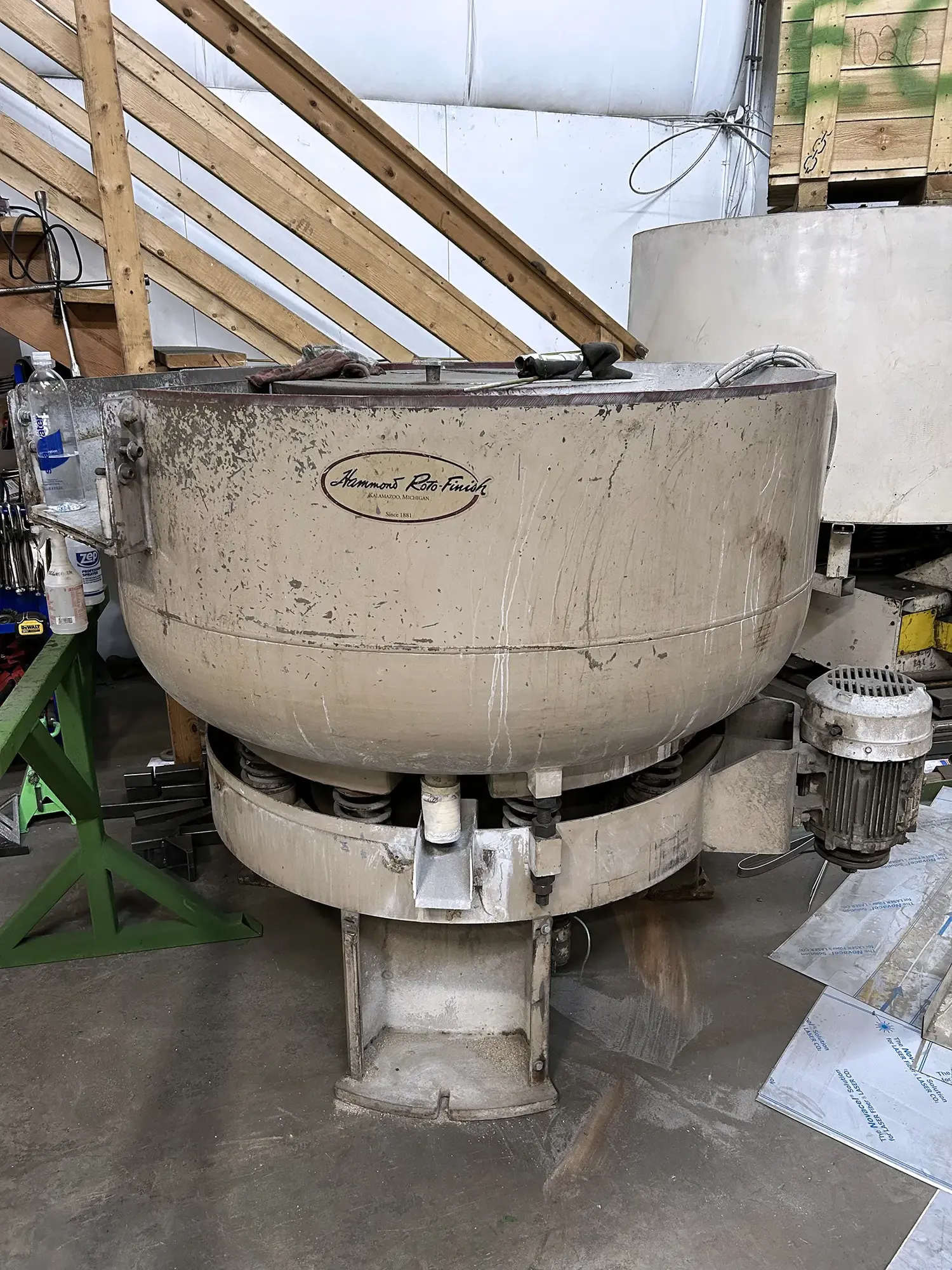

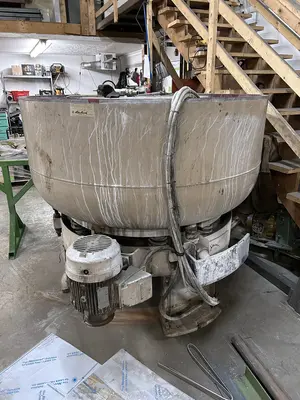

USED 2006 ROTO-FINISH ER-1011

Number of Drains: 3
Driven Sheave P/N: SHS1AB0860001
Shaft Speed (RPM): 1264.6
Belt Size: B-98
Machine Amplitude (mm): 4
DBA w/ & w/o Noise Cover: 82 W/O Cover
Process Compound: L-620
Compound Pump Settings: 10
Water Flow Rate (GPH): 10
Driven Sheave Pitch Dia: 8.6"
Drain Diameter: 4 INCH
Drain Operating & Size: 1/8 SLOTS
Media Type: ceramic
Media Shape: ace
Media Size: 5/8 x 1/4
Separation Screen Type: wire mesh
Separation Screen Opening: 1 1/2
Screen Coating Type: plastisol
Number of Drains:: 3
A Overall Diameter: 61.25"
B Overall Height: 55.25"
C Process Channel Width: 12.50"
H Center Column Diameter: 33.25"
D Screen Deck Width: 12.5"
E Screen Deck Height: 44.0"
F Base Diameter: 57.0"
G Drain Size: 4.0"
Motor Horse Power: 7.5
460 Volts Amp Load: 14.0
220 Volts Amp Load: 25.0
Approximate Shipping Weight: 5,000lbs
Index Plate Setting: 9
Master Weight P/N: 964-0013
Weight Segment P/N: 964-0009
Number of Segments: 8
Working Capacity: 10.0
