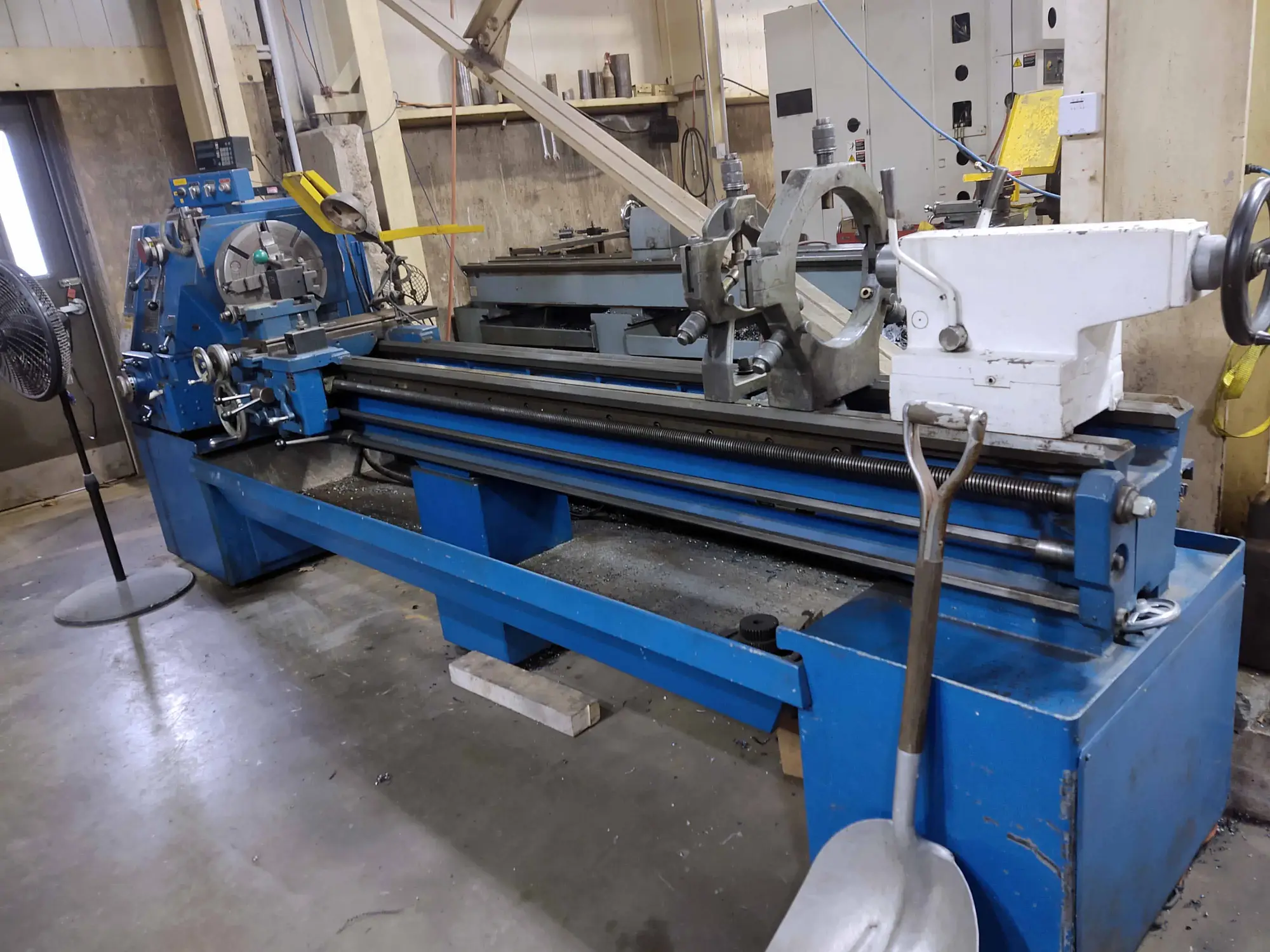

Used South Bend Turnado. This pre-owned Engine Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this South Bend Engine Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Width: 13"
Capacity: ---
Swing over cross slide: 13"
Spindle Nose: 8" D-1 Cam-Lock
Hole Through Spindle: 3-5/32"
Spindle Speeds: 1800-900 rpm motor (18) 30-1580 RPM two speeds
Bed: ---
Width: 13"
Length: 150"
DISTANCE BETWEEN CENTERS: 132"
Tailstock: ---
Spindle Diameter: 2-1/2/"
Spindle Travel: 6"
Approximate Machine Dimensions: 162" L x 65" x 76" H
Approx. Weight: 12,000 lbs
Sony 2-Axis DROs
Tailstock
Threading IN/MM

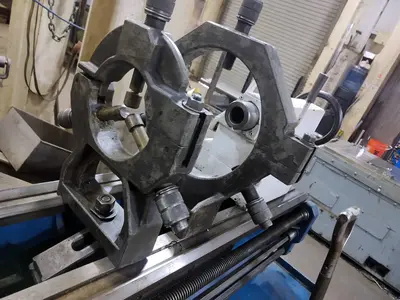

(2) Steady Rest
